31
2
Hardware Installation
1
ON
4
5
1
ON
4
5

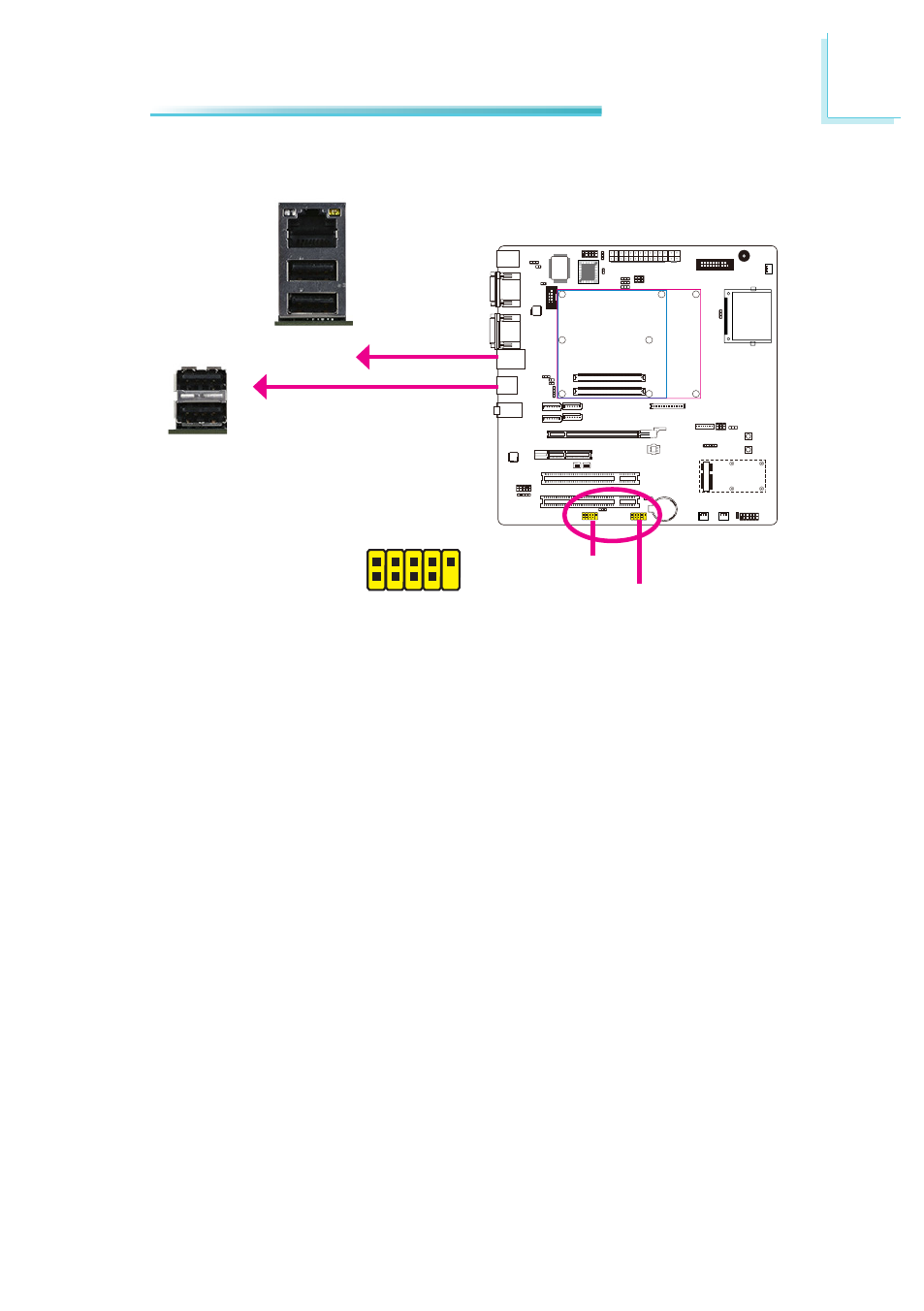

Universal Serial Bus Connectors
USB 2-3
USB 0-1
USB allows data exchange between your computer and a wide range of simulta-
neously accessible external Plug and Play peripherals.
The system board is equipped with four onboard USB 2.0/1.1 ports (USB 0-3).
The two 10-pin connectors allow you to connect 4 additional USB 2.0/1.1 ports
(USB 4-7). The additional USB ports may be mounted on a card-edge bracket.
Install the card-edge bracket to an available slot at the rear of the system chas-
sis and then insert the USB port cables to a connector.
BIOS Setting
Configure the onboard USB in the Advanced menu (“USB Configuration” sub-
menu) of the BIOS. Refer to chapter 3 for more information.
Driver Installation
You may need to install the proper drivers in your operating system to use the
USB device. Refer to your operating system’s manual or documentation for more
information.
1
VCC
-Data
+Data
GND
Ke
y
VCC -Data +Data GND N.
C.
2 10
9
USB 6-7
USB 4-5
