Hardware Installation
1
ON
4
5
1
ON
4
5

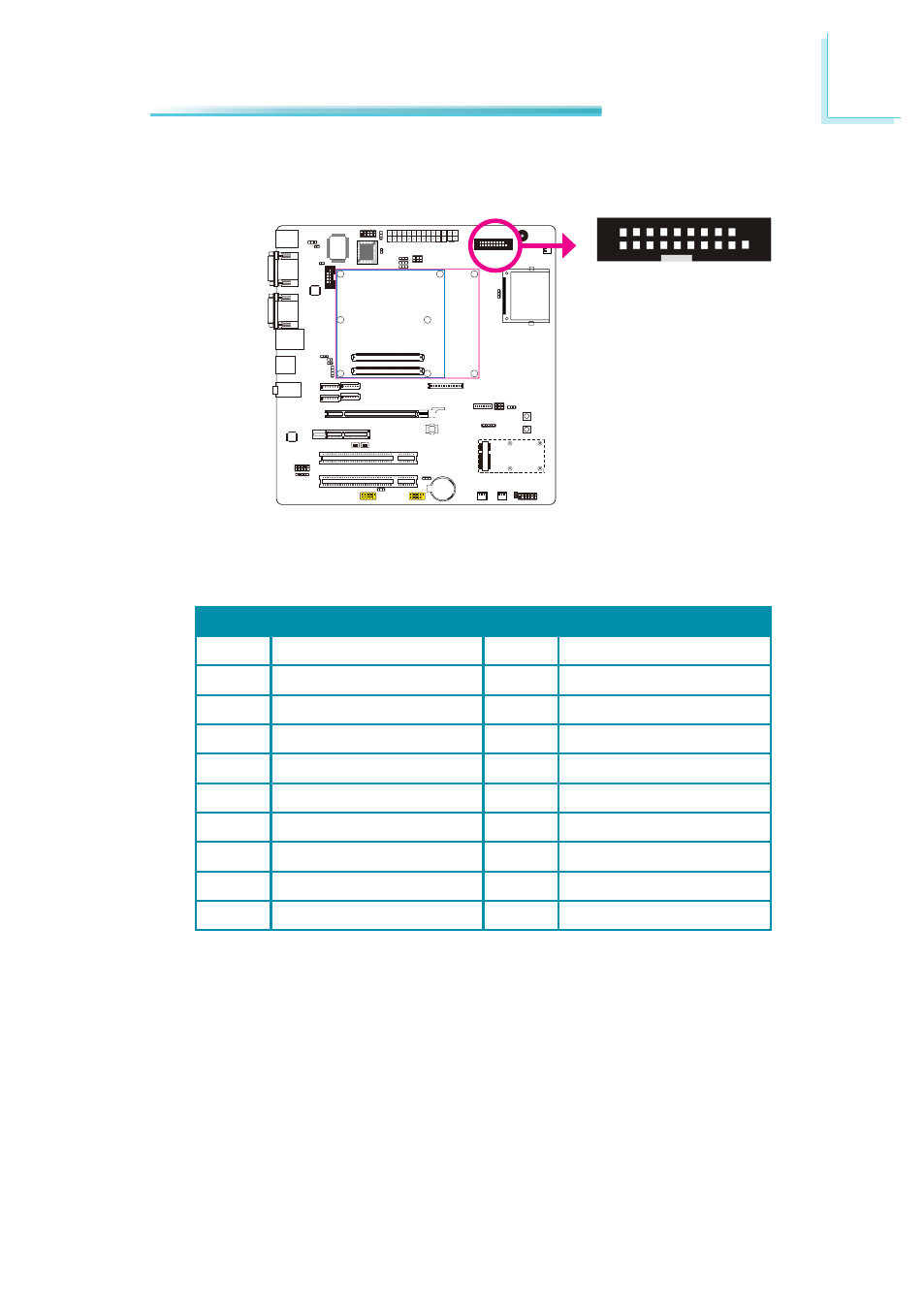

Digital I/O Connector
2
1 19
DIO
The 8-bit Digital I/O connector provides powering-on function to external devices
that are connected to these connectors.
Pin Pin Assignment Pin Pin Assignment
1 GND 2 +12V
3 DIO7(GPO3) 4 +12V
5 DIO6(GPO2) 6 GND
7 DIO5(GPO1) 8 +5V
9 DIO4(GPO0) 10 +5V
11 DIO3(GPI3) 12 GND
13 DIO2(GPI2) 14 5VSB
15 DIO1(GPI1) 16 5VSB
17 DIO0(GPI0) 18 GND
19 GND
