MSG Button
Click the MSG button to display the System Messages screen as shown in Figure 13. The number in
yellow on the button represents the number of unread messages.

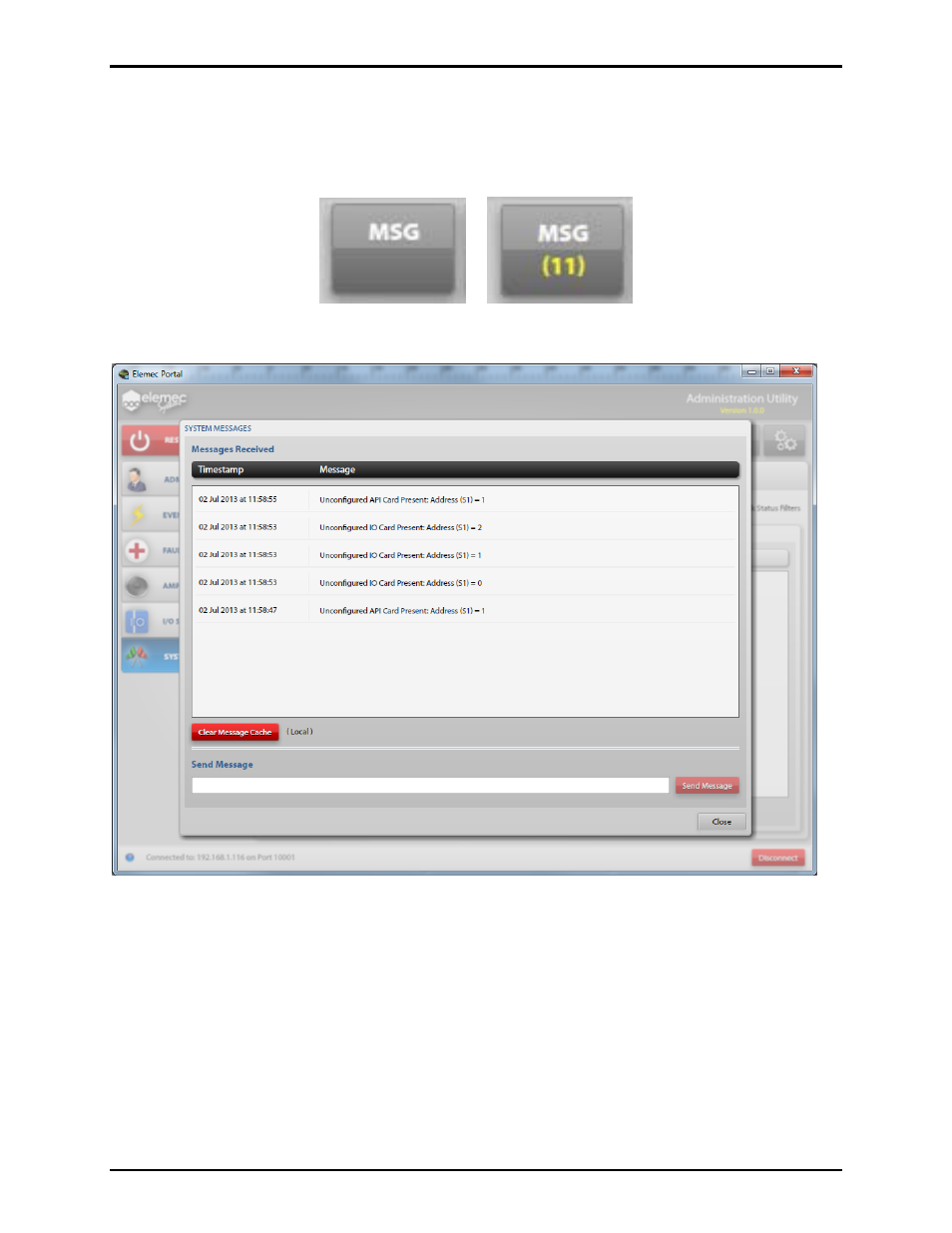

Figure 12. MSG button
Figure 13. System Messages screen
System Messages
Messages Received – Notifications that do not qualify as an event or a fault. They are time and date-
stamped and typically this window displays hardware that is installed but not defined in the system
configuration.
Clear Message Cache – Click to remove messages locally. N
OTE
: All messages will be removed upon
system startup.
Send Message – A Portal user may send messages to other connected Portal users by typing a message in
the Send Message box and clicking the S
END
M
ESSAGE
button.
