Fault Status Button
Click the F
AULT
S
TATUS
button to display the System Fault Status screen as shown in Figure 43. The
button turns blue to indicate which screen is currently being displayed.

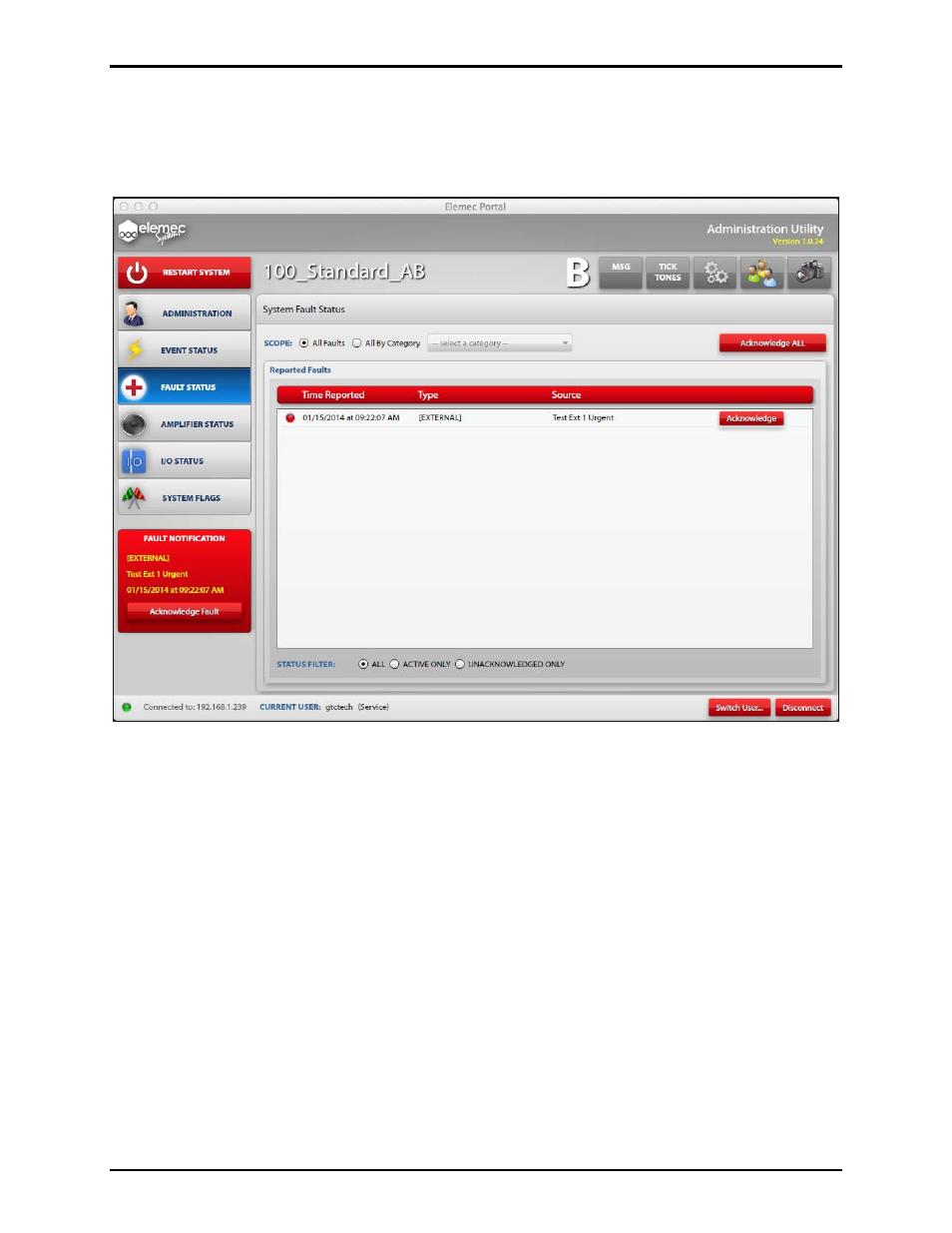

Figure 43. System Fault Status screen
Two types of faults will be reported: Normal and Urgent.
Urgent faults require acknowledgement. They will remain in the list until the fault is cleared and
acknowledged.
Normal faults do not require user acknowledgement and will be removed from the list when the fault
is cleared.
Fault Notification Panel
The Fault Notification Panel is located on the lower left side of the Administration Utility screen and is
shown in Figure 43 above. The panel will appear when a fault occurs and will display the most recent
unacknowledged fault on any system screen. It contains an A
CKNOWLEDGE
F
AULT
button.
