Event Status Button
Click the E
VENT
S
TATUS
button on the Administration Utility screen to display the Event Status screen
as shown in Figure 41. The button turns blue to indicate which screen is currently being displayed.
This screen displays the active Events in the system. Events are defined during the system configuration
process.

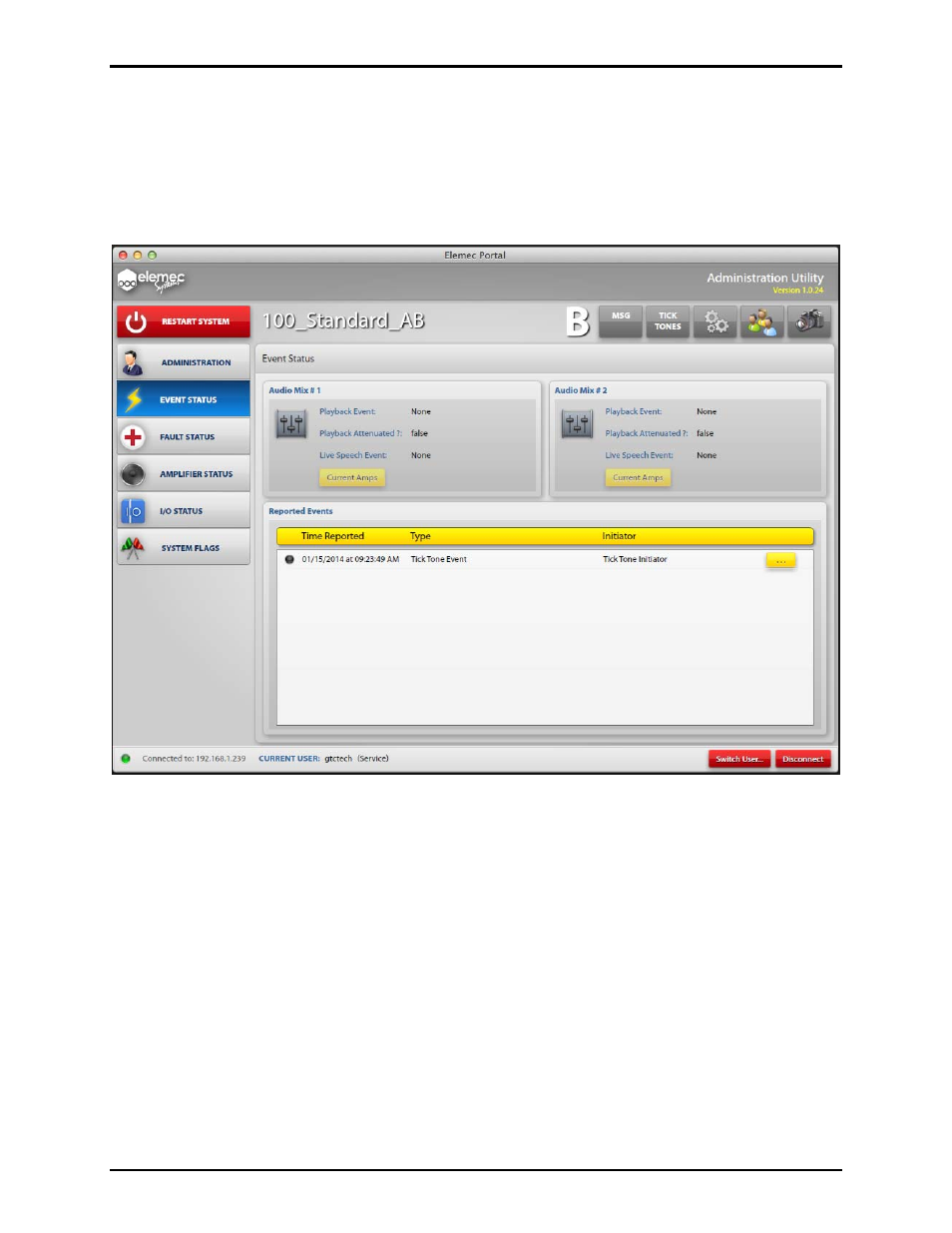

Figure 41. Event Status screen
Audio Mix #1, Audio Mix #2
The system has two audio paths: Audio Mix 1 and Audio Mix 2. When an Audio Mix is in use, the
description of the active event(s) is shown.
Playback Event – If present, displays the description of the Playback Event as defined in the system
configuration.
Playback Attenuated? – When True, playback audio for this Audio Mix is attenuated.
Live Speech Event – If present, displays the description of the Live Speech Event as defined in the
system configuration.
Current Amps – Click the C
URRENT
A
MPS
button to display which amplifiers are receiving audio from
this Audio Mix.
