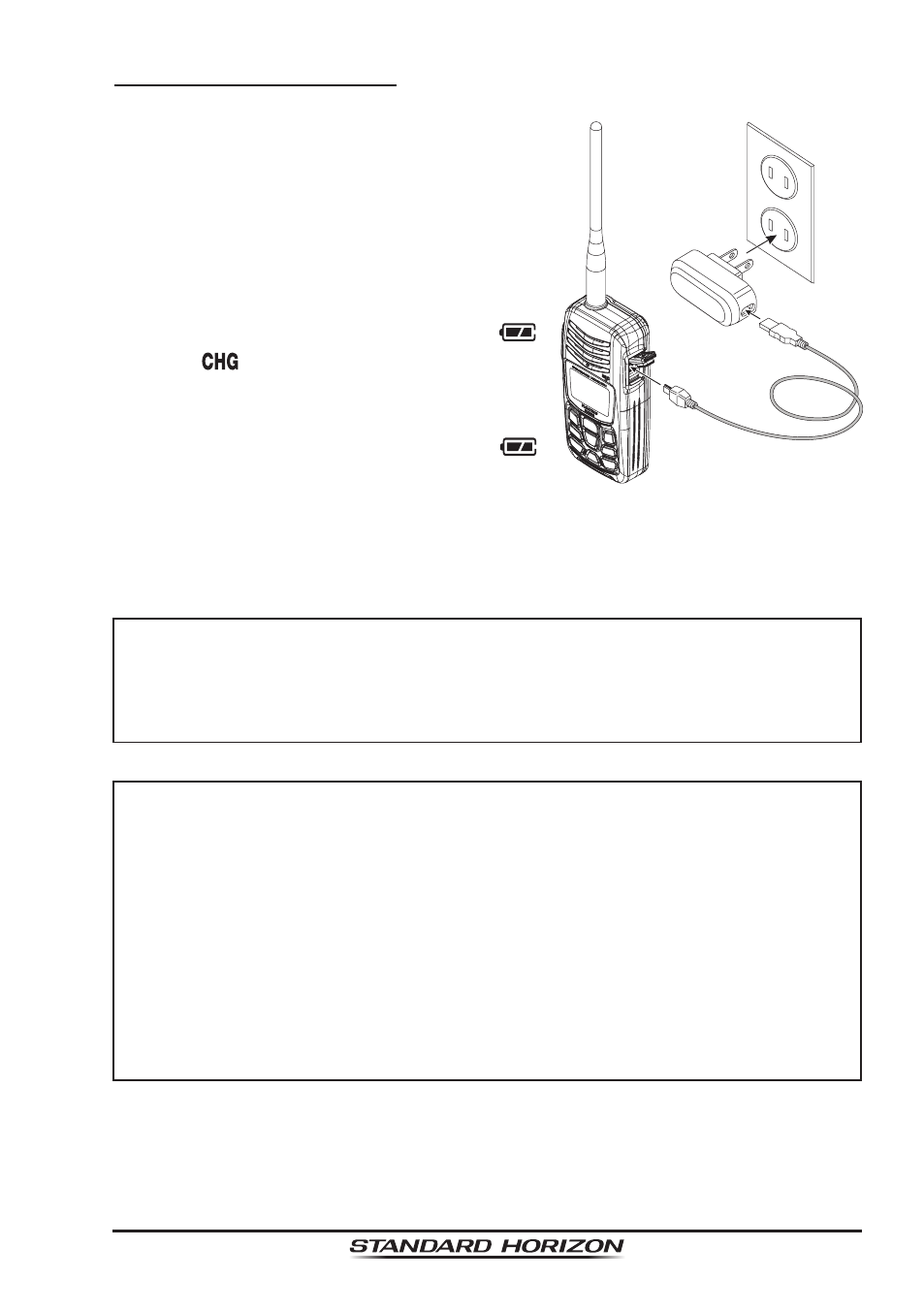

4.2.3 BATTERY CHARGING
1. Turn the transceiver off.
2. Slide the
CHG cover button (with arrow)
up to open the
CHG cover, then connect
the supplied Charge Cable to the
CHG
jack on the
HX300.
3. Connect the other side plug of the sup-
plied Charge Cable to the
PA-54B, then
plug the
PA-54B into the AC line outlet.
4. If the connection is correct, the “
”
and “
” icon will appear in the display.
A fully-discharged pack will be charged
completely in approximately 6 hours.
5. When charging is completed, the “
”
icon disappears and “FL” will appear
in the display. Disconnect the Charge Cable from the
HX300 and close
the
CHG cover securely (make sure a click is heard), then unplug the
PA-54B from the AC line outlet.
CAUTION
When using the radio, make sure the
CHG cover is completely
closed to insure water integrity.
The
PA-54B is NOT designed to be waterproof. Do not attempt to
charge in water hazardous locations.
NOTE
The
HX300 may also be charged by connecting the USB cable to
the radio and a USB connector on a PC. It will take about 6 hours
to charge the battery and FL will be shown on the
HX300 display
when charging is completed.
The
PA-54B is only designed for the charging of the HX300’s bat-
tery pack, and is not suitable for other purposes. The
PA-54B may
contribute noise to TV and radio reception in the immediate vicin-
ity, so it do not recommend its use adjacent to such device.
When carefully maintained, a pack should be useful for about 300
charge/discharge cycles.
