Wire power supply cord connection – Maytag WED9051YW Installation User Manual
Page 10
10
4.
Connect remaining wires
Connect remaining wires to outer terminal block screws.
Tighten screws. Finally, reinsert tab of terminal block cover
into slot of dryer rear panel. Secure cover with hold-down
screw. Now, go to “Venting Requirements.”

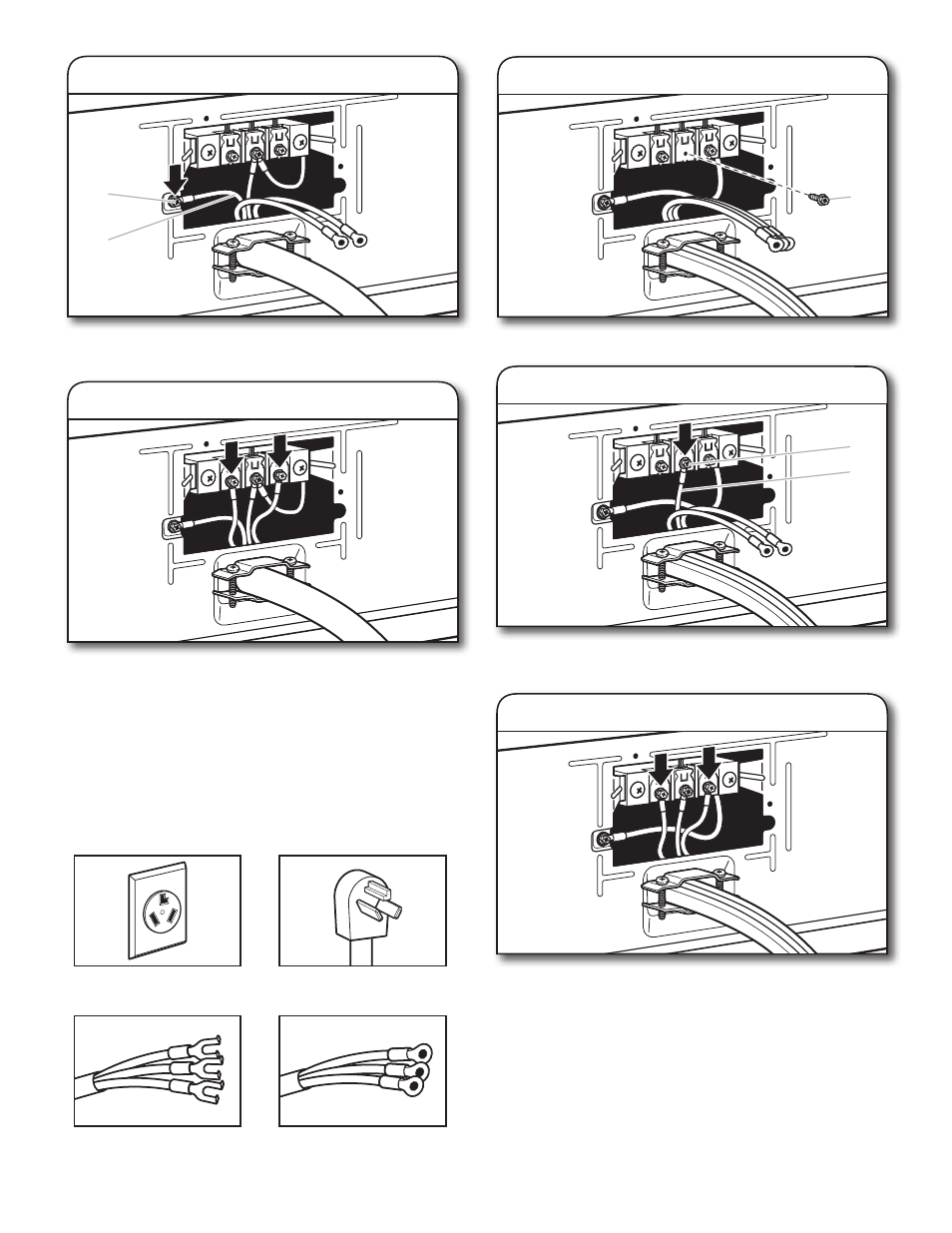

3-WIRE POWER SUPPLY CORD
CONNECTION
3-wire receptacle (NEMA
type 10-30R)
3-prong plug
Spade terminals with
upturned ends
Ring terminals
Use where local codes permit connecting
cabinet-ground conductor to neutral wire.
1.
Remove center screw
B
Remove center terminal block screw (B).
3.
Connect remaining wires
2.
Connect neutral wire
C
B
Connect remaining wires to outer terminal block screws.
Tighten screws. Finally, reinsert tab of terminal block cover
into slot of dryer rear panel. Secure cover with hold-down
screw. Now, go to “Venting Requirements.”
Connect neutral wire (white or center) (C) of power supply cord
to center terminal block screw (B). Tighten screw.
3.
Connect ground wire
F
A
Connect ground wire (F) (green or bare) of power supply cord
to external ground conductor screw (A). Tighten screw.
