15

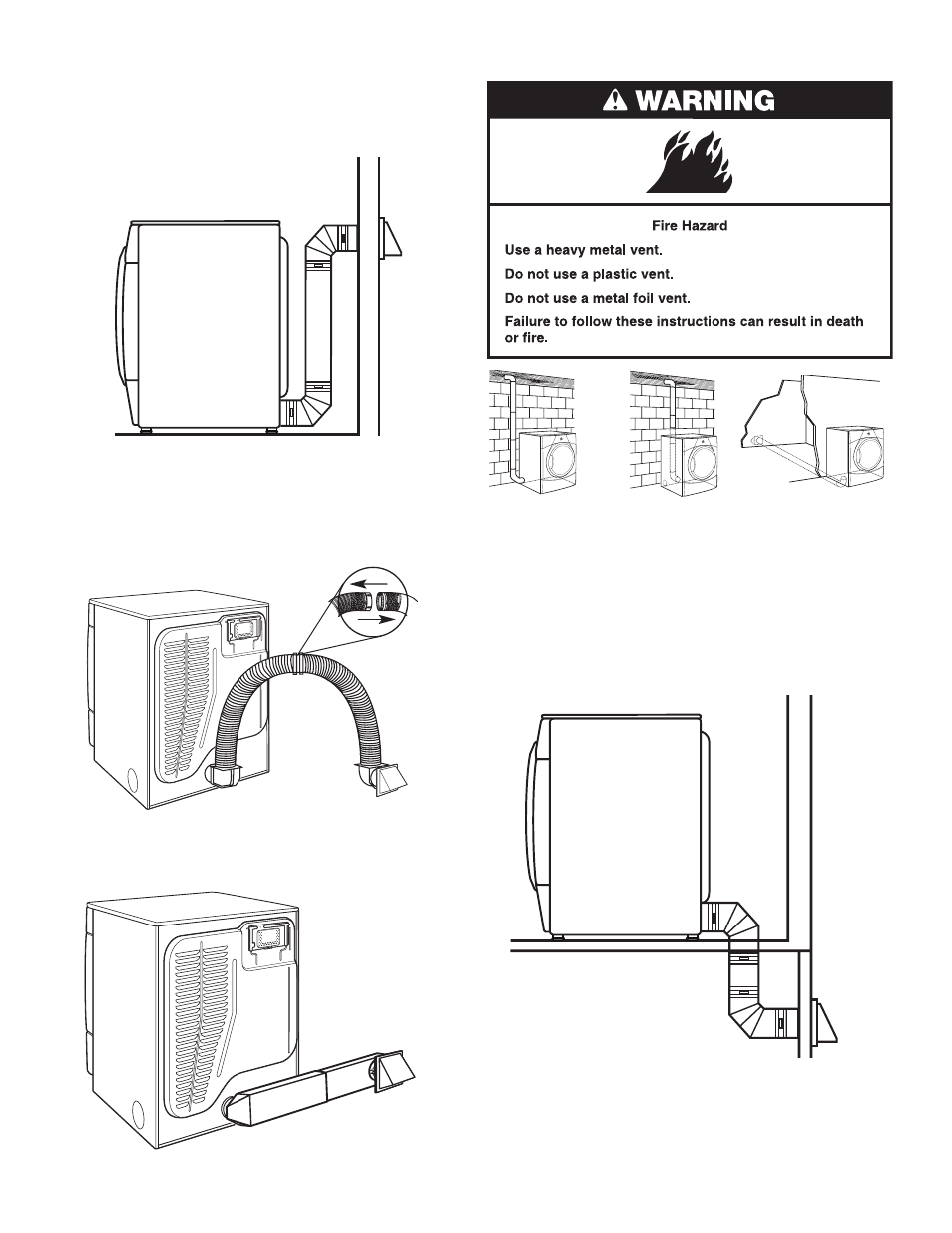

Optional exhaust installations:
If you prefer, dryer may be converted to exhaust out right side,
left side (all models except WED9051Y), or through bottom.
You must contact your local dealer to have dryer converted.
Use 4-Way Exhaust Kit Part Number W10470674.
NOTE: On Model WED9051Y only, do not exhaust out the
left side.
PLAN VENT SYSTEM
Recommended exhaust installations
Typical installations vent the dryer from the rear of the dryer.
Other installations are possible.
Alternate installations for close clearances
Venting systems come in many varieties. Select the type best
for your installation. Two close-clearance installations are shown.
Refer to the manufacturer’s instructions.
Over-The-Top installation (also available with one offset elbow)
Periscope installation
Special provisions for mobile homes:
Exhaust vent must be securely fastened to a noncombustible
portion of mobile home and must not terminate beneath the
mobile home. Terminate exhaust vent outside.
Bottom Exhaust installation
