5.11 Adjusting the right and left side margins (direction of the short side of letter-size and legal-size paper)
∗ The right and left side margins (direction of the short side) are adjusted by moving the slitter cartridge.
Be sure to turn off the power before making this adjustment.
∗ Open the slitter cover and slightly loosen the slitter cartridge fixing thumbscrew.
∗ Turn the slitter unit adjustment dial to adjust the position of the slitter unit (within ±2mm).
∗ The scale is useful as a guide for adjustment.
∗ When the slitter unit adjustment dial is turned to the right, the slitter cartridge moves forward, and
when turned to the left, the unit moves backward.
∗ After completing the adjustment, securely tighten the slitter cartridge fixing thumbscrew.
5. 12 Removing the slitter cartridge (Replacement)
∗ When you remove or replace the slitter cartridge, be sure to turn off the power switch.
∗ Open the slitter cover and remove the slitter unit fixing screw.
∗ Lean the handle portion of the slitter cartridge by pushing it down to remove the slitter cartridge.
∗ You can install the slitter cartridge in the reverse process, but it is necessary to securely insert the
groove portion of the slitter cartridge into the slitter cartridge fitting reference shaft mounted in the
machine body. (Securely insert it so that there is no space between the groove and the shaft.)
∗ When the unit is installed, securely tighten the slitter cartridge fixing thumbscrew.

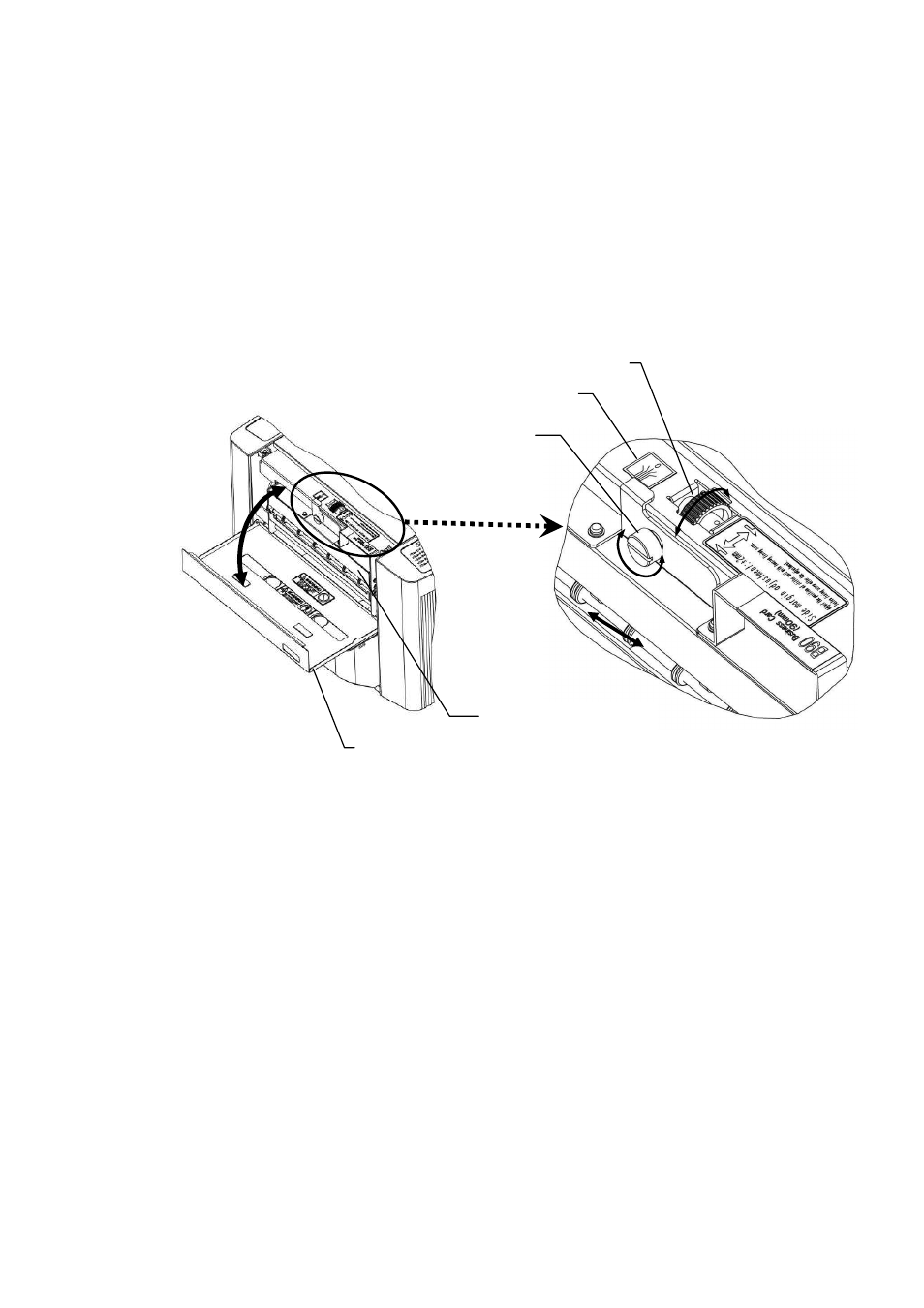

Slitter cartridge adjustment dial
Slitter cover
Slitter cartridge
fixing thumbscrew
Slitter cartridge
Scale
