5 I/O CONNECTOR
The PCM-DAS16S/16 has 16 single ended analog inputs. The PCM-DAS16D/16 has
8 differential inputs. Both boards have an analog ground, 1 A/D trigger input, 1 inter-
rupt input, 1 gate input, complete access to one 16 bit counter's clock, gate and output
lines, and access to the A/D pacer's counter output line and 8 digital output/inputs. A
digital ground is in the cable shield clips to either side of the 33 pins of the connector
as well as one of the connector pins. Please look at the connector diagram for your
board.
5.1 PCM-DAS16x/16 CONNECTOR

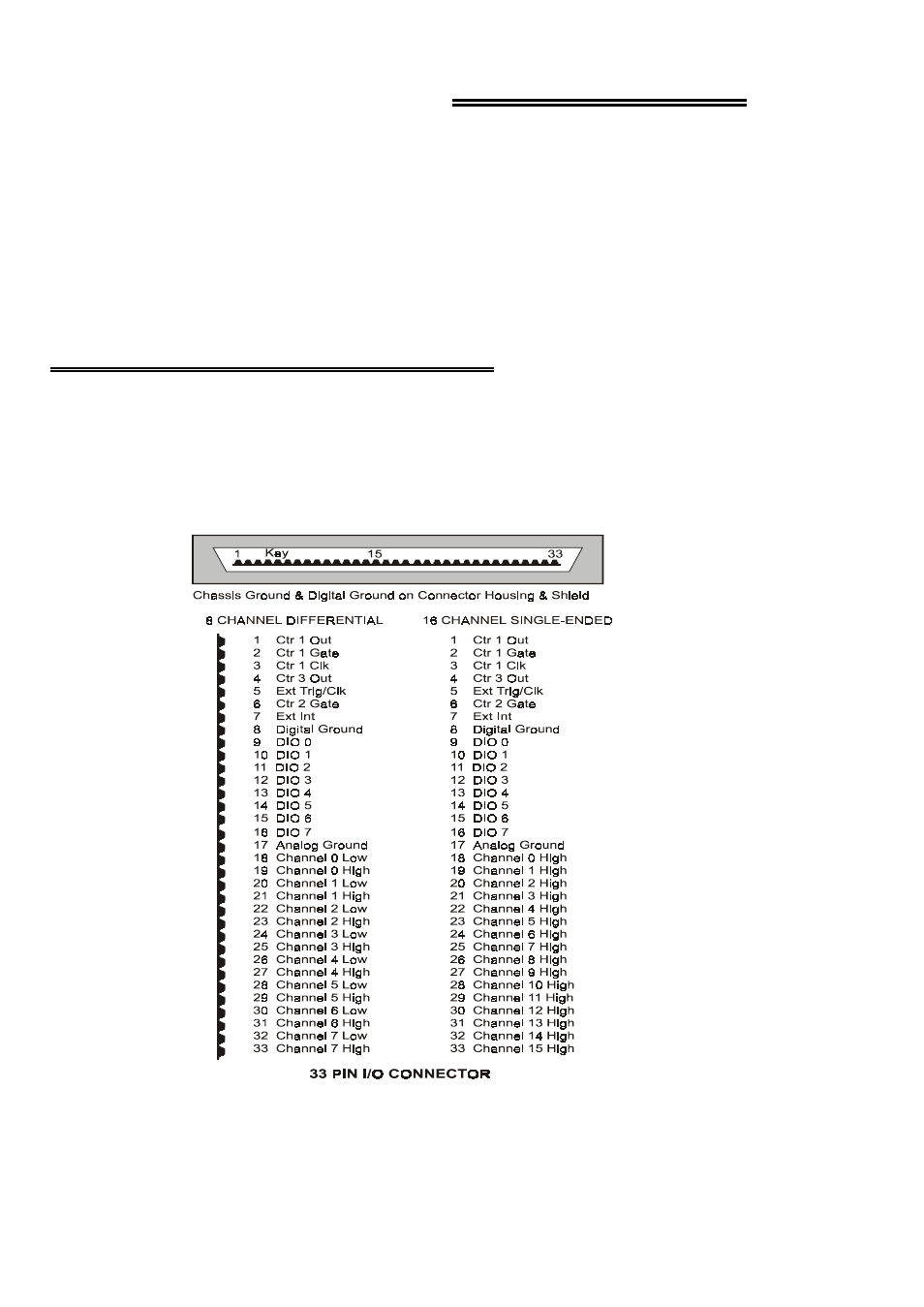

Shown here is a PCM-DAS16S/16 and PCM-DAS16D/16 case looking into the con-
nector which a signal cable or screw terminal box and cable are connected to. The
KEY helps to insure that the cable is inserted in the correct orientation.
