2.2 Pressure loss characteristic curve
A
B
C
[mWS]
[k
Pa
]
Grundfos UPM2 15-75 CIL
Grundfos UPM2 25-75
[m /h] 3
1
2

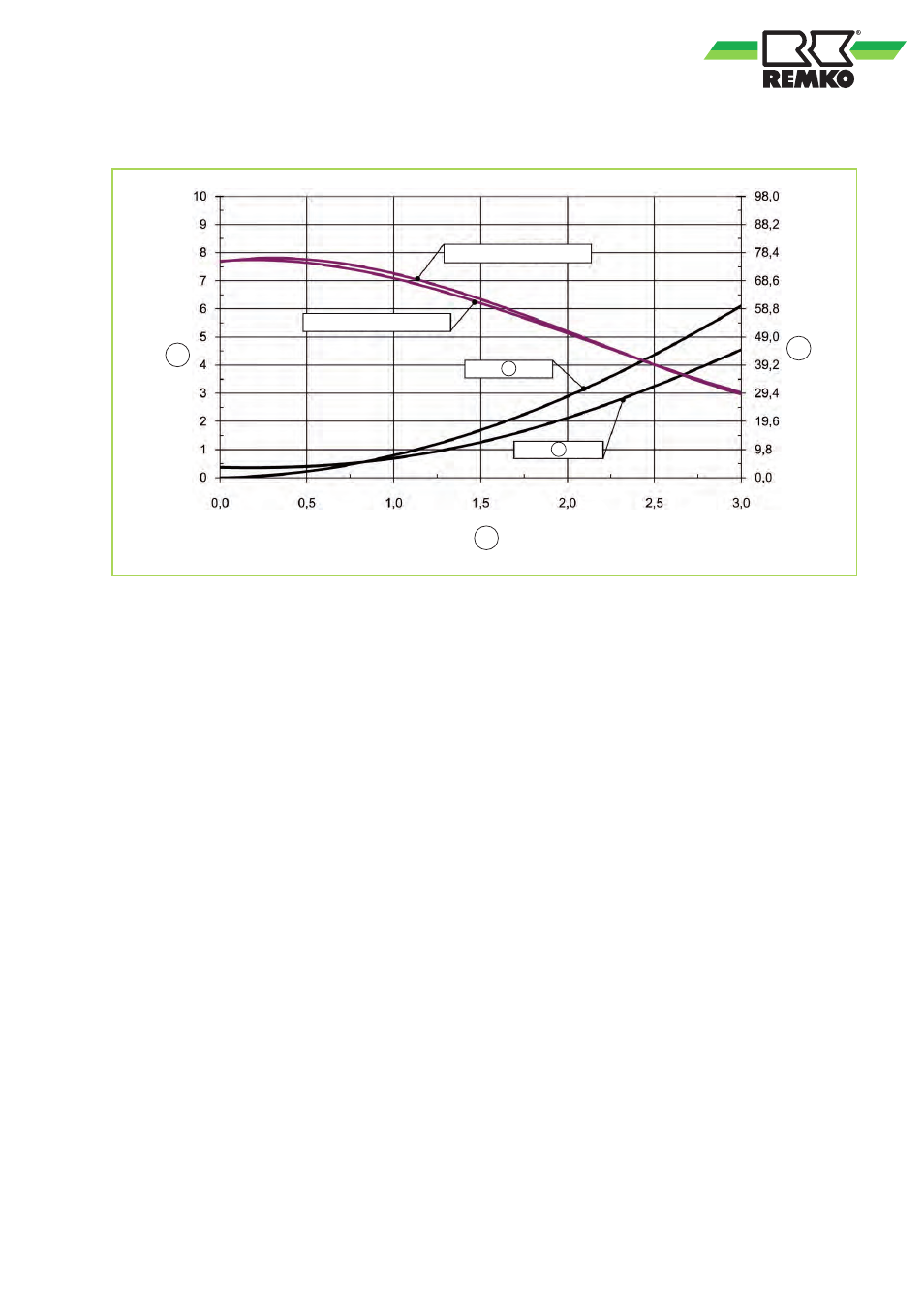

Fig. 1: Pressure loss characteristic curve
A: Pressure [mWS]
B: Medium flow rate [m 3 /h]
C: Pressure [kPa]
1: Secondary
2: Primary
