23
◆ Then set the shutter speed to 1/30 or slower. The slave Controller will transmit the designated signal
before the others fire. Thus if you use a shutter speed faster than 1/30, the firing flash units will not
be synchronized.
3. Switch “ON” the flash unit, and press the camera’s shutter button
halfway.
◆ Now, aperture value and film speed are automatically transmitted
to the slave flash unit.
4. Remove the slave flash unit from camera.

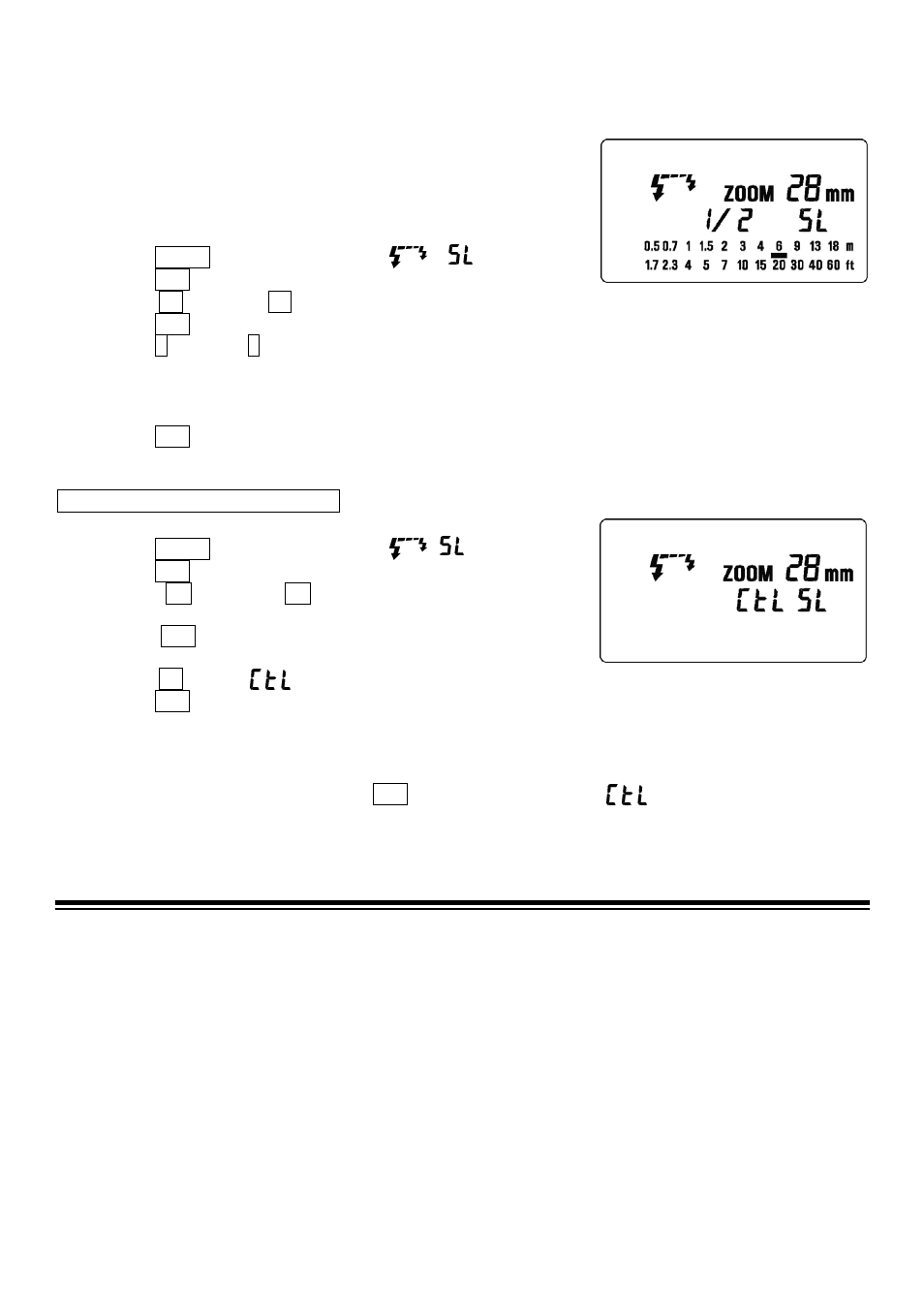

5. Press the MODE button and select the
/ . (Slave Mode)
6. Press the SEL button to make the channel display indicator blink.
7. Press the + button or – button to set the channel number. (C1 or C2)
8. Press the SEL button to make the output amount display indicator of flash blink.
9. Press the + button or – button to set the flash output amount.
◆ Set the flash power by setting the distance indicator on the LCD panel to coincide as closely as
possible with the actual distance from the slave flash to the subject. If the actual distance is out of
range, you need to change the aperture value.
10. Press the SEL button several times to make the display stop blinking.
11. Place the slave unit in the desired location. Do not place the slave unit within the picture area
.
Setting for Slave Controller unit
12. Attach the Slave Controller flash unit to the camera body.
13. Press the MODE button and select the
/ (Slave Mode).
14. Press the SEL button to make the channel display indicator blink.
15. Press the + button or – button to set the same channel
number as that set on the firing flash unit.
16. Press the SEL button to make the flash output amount display
indicator blink.
17. Press the + button
mark displayed.
18. Press the SEL button to make the display stop blinking.
19. After you confirm that all flash units are fully charged, press the shutter button to take the picture.
◆ When the firing flash unit of EF-610 DG SUPER PA-PTTL is fully charged, the AF Auxiliary Light will
blink.
◆ You cannot set the aperture value by SEL button, if you select the mark at the setting of flash
output amount. The flash unit will be set to the Slave Controller mode.
◆ The Slave Controller unit functions only to control the slave unit.
SPECIFICATIONS
TYPE : Clip-on type serial-controlled TTL auto zoom electric flash
GUIDE NUMBER : 61 (ISO 100/m, 105mm head position)
POWER SOURCE : Four AA type alkaline batteries or Four AA type Ni-Cd batteries or,
: Four AA type Ni-MH Nickel-Metal Hydride batteries
RECYCLING TIME : about 7.0 sec. (Alkaline batteries)
: about 5.0 sec. (Ni-Cd, Ni-MH Nickel-Metal Hydride)
NUMBER OF FLASHES : about 120 flashes (Alkaline batteries)
: about 160 flashes (Ni-Cd, Ni-MH Nickel-Metal Hydride)
FLASH DURATION : about 1 / 700 sec. (full power firing)
FLASH ILLUMINATE ANGLE : 24～105mm motor powered control (17mm with Built-in Wide Panel)
AUTO POWER OFF : Available
WEIGHT : 330g / 11.6oz.
DIMENSIONS : 77mm (W) / 3.0in. x 139mm (H) / 5.5in. x 117mm (L) / 4.6in.
