Kayak HD — Installation and Service Manual
113
Install Menus Reference
Install Menus Reference
The Install menu contains system setups. Most of them are only used
during installation. Some more advanced system functions are not yet sup-
ported by these menus. You can use the Sidepanel application on a separate
personal computer to access these advanced functions.
Note
The last menu accessed is re-displayed when you return to the Install menu
hierarchy.
Install - E-Box

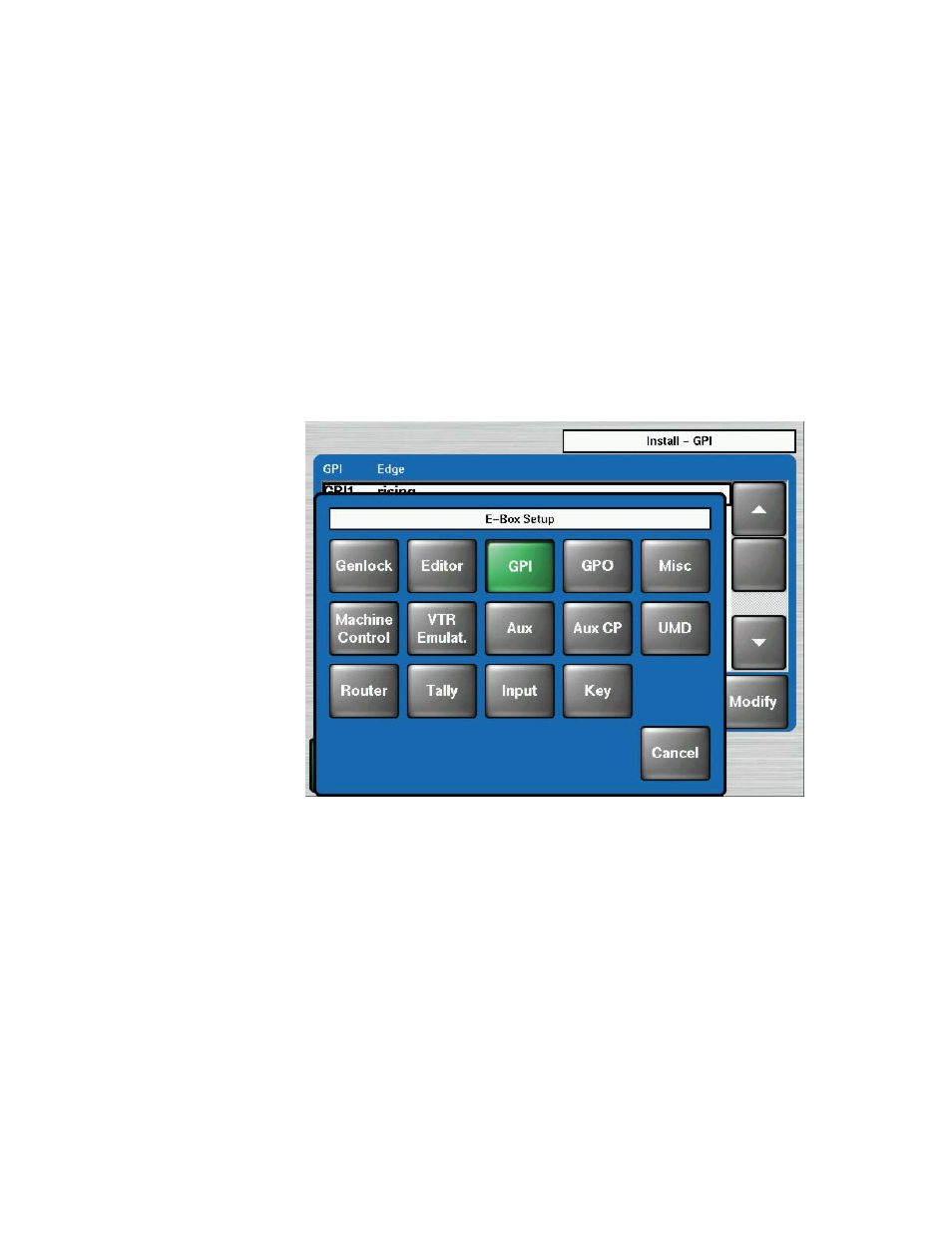

Figure 70. Install – E-Box Setup Dialog
After touching the
E-Box
button in the Home menu a new dialog appears
with the setup items shown in
In the following sections the most important Install menus are described.
Once you understand the principles of Kayak HD system menu organiza-
tion and operation, you will be able to quickly learn these new menus and
use them effectively for your work.
