Kayak HD — Installation and Service Manual
Section 4 — Maintenance
4.
Remove the three nuts holding the joystick to the control panel, as
shown in
.

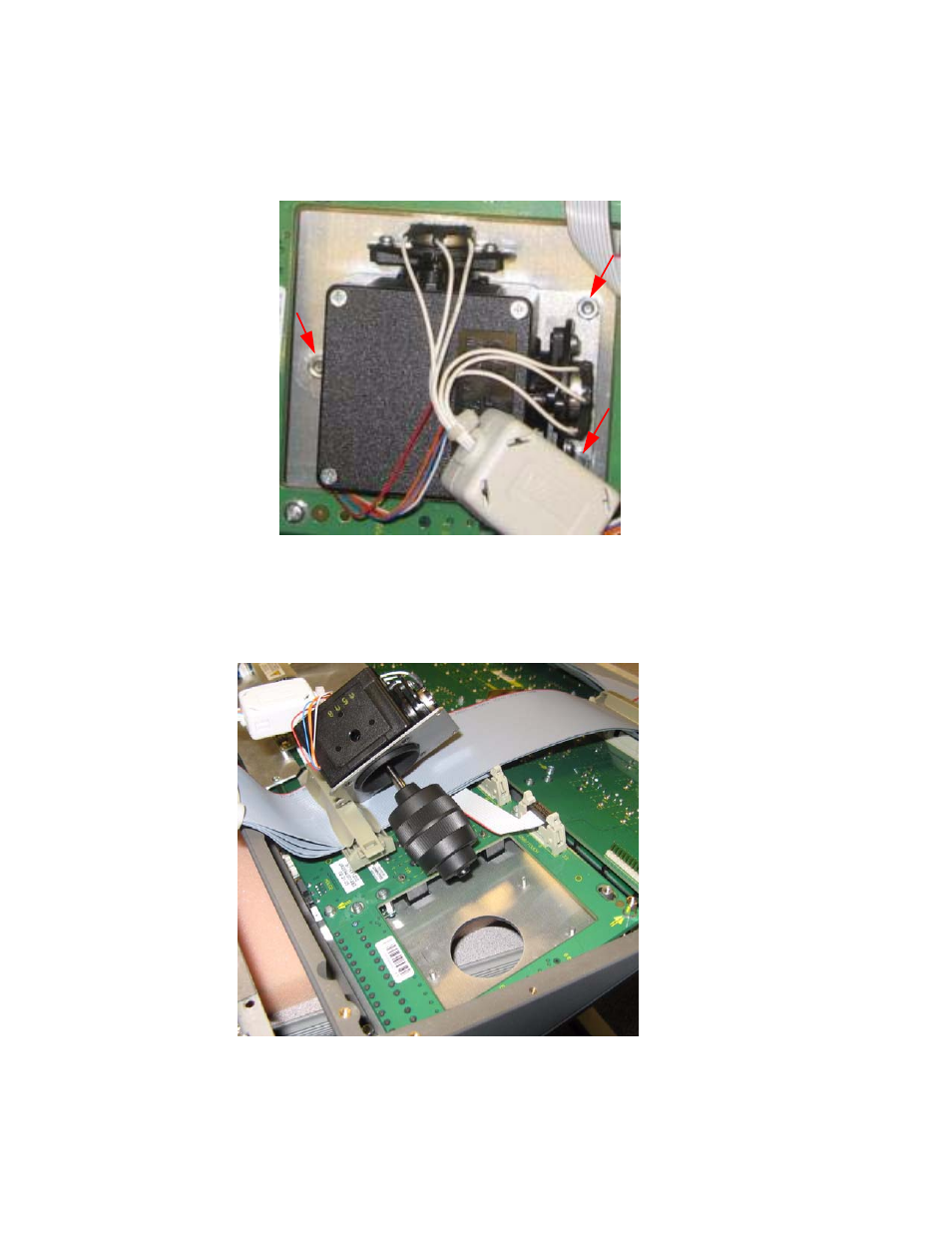

Figure 130. Kayak Control Panel Joystick—Unfastening the Joystick
5.
Carefully pull the joystick stem through the panel and remove the
joystick, as shown in
Figure 131. Kayak Control Panel Joystick—Removing the Joystick
6.
Install the new joystick with wire harness using the preceding
instructions.
