18

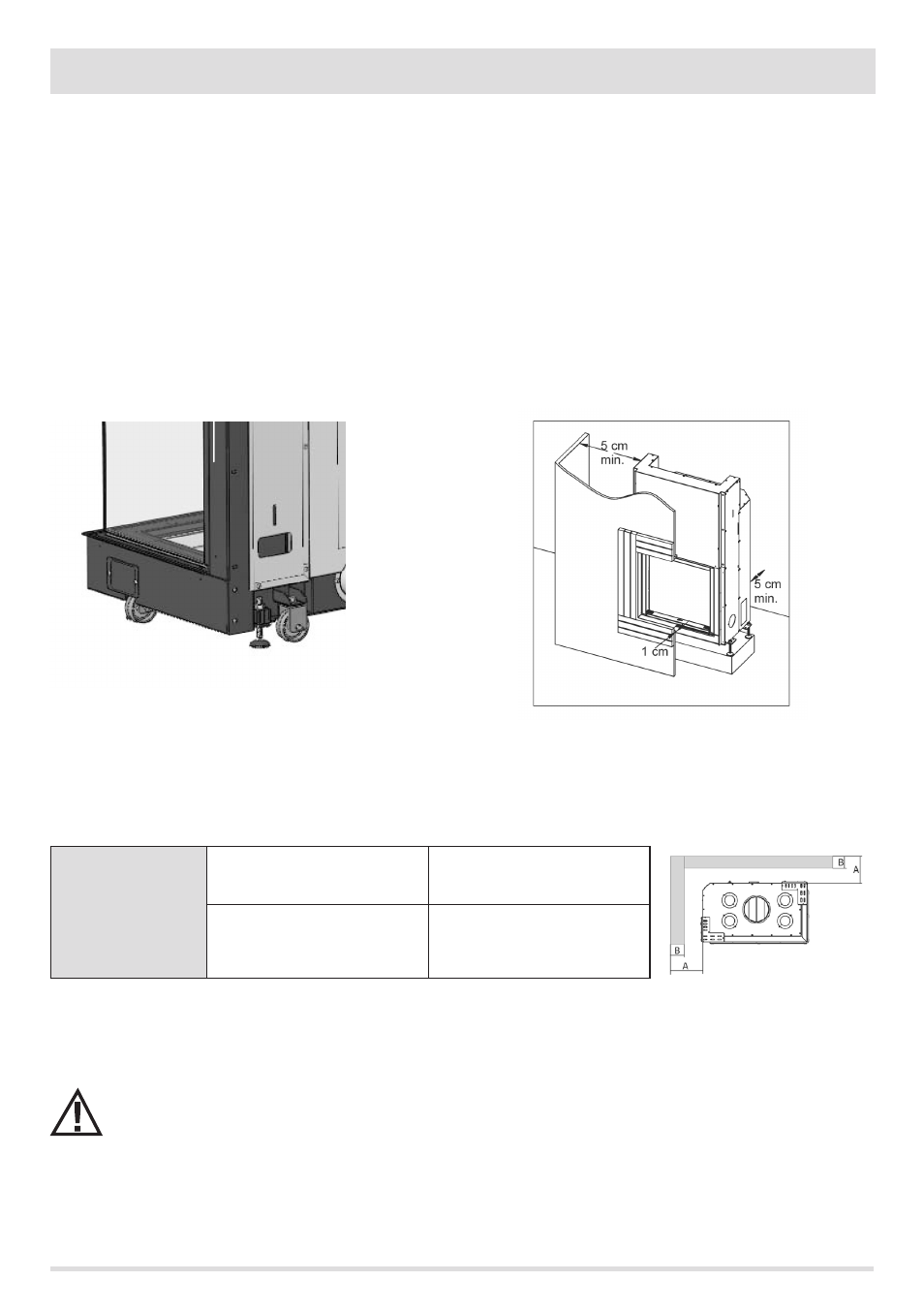

4-INSTALLATION AND ASSEMBLY
POSITIONING
The FORMA WOOD closed fireplace may be positioned both at an angle or against a wall. One can customise it with the manufacturer's
claddings or build them on site with materials resistant to high temperatures.
The closed fireplaces are freestanding units that simplify installation and that do not require any additional support. To facilitate moving
the unit to the point in which it must be installed, the manufacturer supplies the closed fireplace with four swivel wheels that make
moving the closed fireplace easier and not tiring. (figure 2)
Once the closed fireplace has been positioned, the wheels must be lifted from the ground or removed, so that the unit is stable on the floor.
This is possible by adjusting the four feet pre-mounted on the closed fireplace.
Always assess the static conditions of the surface on which the weight of the product will rest and always leave a gap of
at least 5 cm between the chimney and walls.
Dry mount the hearth of the cladding, leaving a 1 cm gap for insulation. (Figure 3)
MINIMUM DISTANCES
FORMA WOOD
75 DX-SX
95 DX-SX
T95
T50
Non-flammable walls Flammable walls
A = 50 mm
B = 20 mm
C = 20 mm
A = 100 mm
B = 50 mm
C = 50 mm
A = distance from the side and rear walls
B =insulating material
C = height from floor
If the closed fireplace is positioned on a floor or in proximity of flammable walls one recommends suitable insulation.
The hot air outlet vents must be positioned at least 300 mm away from other materials. (e.g. curtains)
FIGURE 2 – WHEELS AND FEET FIGURE 3 – DISTANCE OF THE UNIT FROM THE WALLS
AND FROM THE CLADDING
