System Introduction
The UltraVista LC II HDMI is the product of choice for those who have the
need to produce a high quality, inexpensive video wall. The video wall is
available in a 2x2 model. It can be cascaded with other 2x2 units to support
a 4x4 configuration.
The UltraVista LC II HDMI can be automatically configured to produce three
output modes; video wall mode, clone mode and replication mode. These
modes are automatically configured based on the input resolution received
from the video source. The video wall mode accurately splits the input
image over the display mode. The clone mode displays the same image on
all monitors. The replication mode shows the same image on each row of
monitors.
The UltraVista LC II HDMI requires an HDMI video input signal. This input is
split directly over the display array; image scaling is accomplished
automatically.
Configuring the UltraVista LC II HDMI can be done from a built-in OSD
menu system, a computer connected to the RS-232 serial port, or using the
remote control unit.

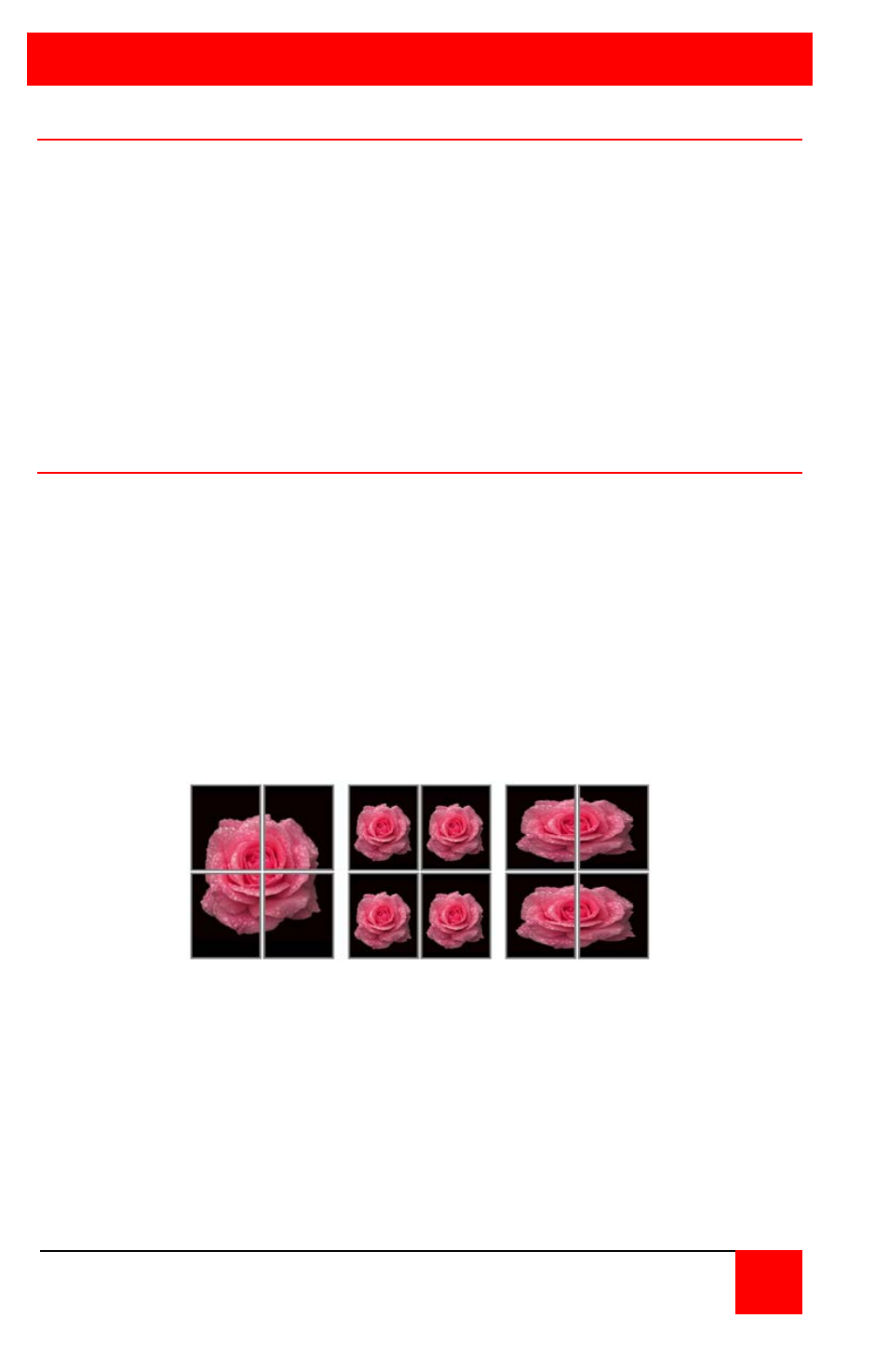

Video Wall Clone Replication
Mode Mode Mode
