13 XL-TG10150UD-en-US Rev B · 2013-05-23 · Amendments and errors reserved. © SAF-HOLLAND, Inc.

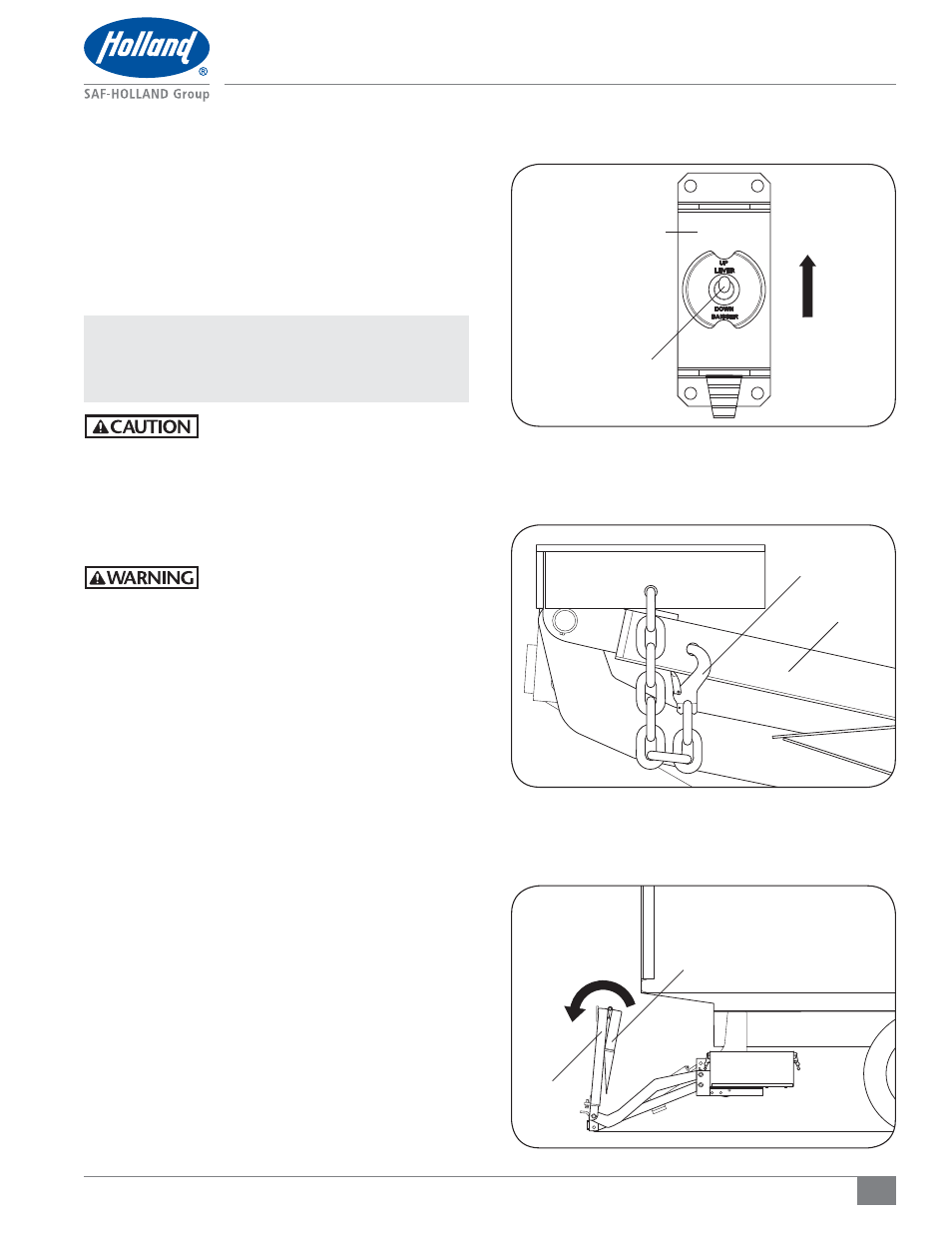

Figure 16
Liftgate Operation Instructions
7.2 Travel Chain Option
1. Stand clear of the liftgate, and using the control station,
raise the stowed platform to relieve any tension on the
travel chain (Figure 15).
2. Disengage the travel latch chain hook from the platform.
(Figure 16).
3. With the travel chain clear, lower the unit until the
liftgate firmly contacts the ground.
NOTE: Some TL liftgates have an optional foot pedal opener
installed as shown in Figure 19. If the liftgate you
are operating has the foot pedal option, skip to
Section 8 Foot Pedal Opener Operation.
Failure to ensure stable footing while
engaging the foot pedal could result
in slipping which, if not avoided, could
result in minor or moderate injury.
4. Grasp the platform to rotate it down. As the platform
starts to rotate, step back to allow the platform to fall
into a horizontal position (Figure 17).
Failure to keep feet clear of platform
during operation could create a crush
and/or pinch hazard which, if not avoided,
could result in death or serious injury.
5. While standing clear and to the side grasp the flip
over section and rotate it allowing it to fall into a
horizontal position.
Figure 17
PLATFORM
FLIP OVER SECTION
Figure 15
CONTROL STATION
TOGGLE SWITCH
UP
TRAVEL LATCH
CHAIN HOOK
PLATFORM
