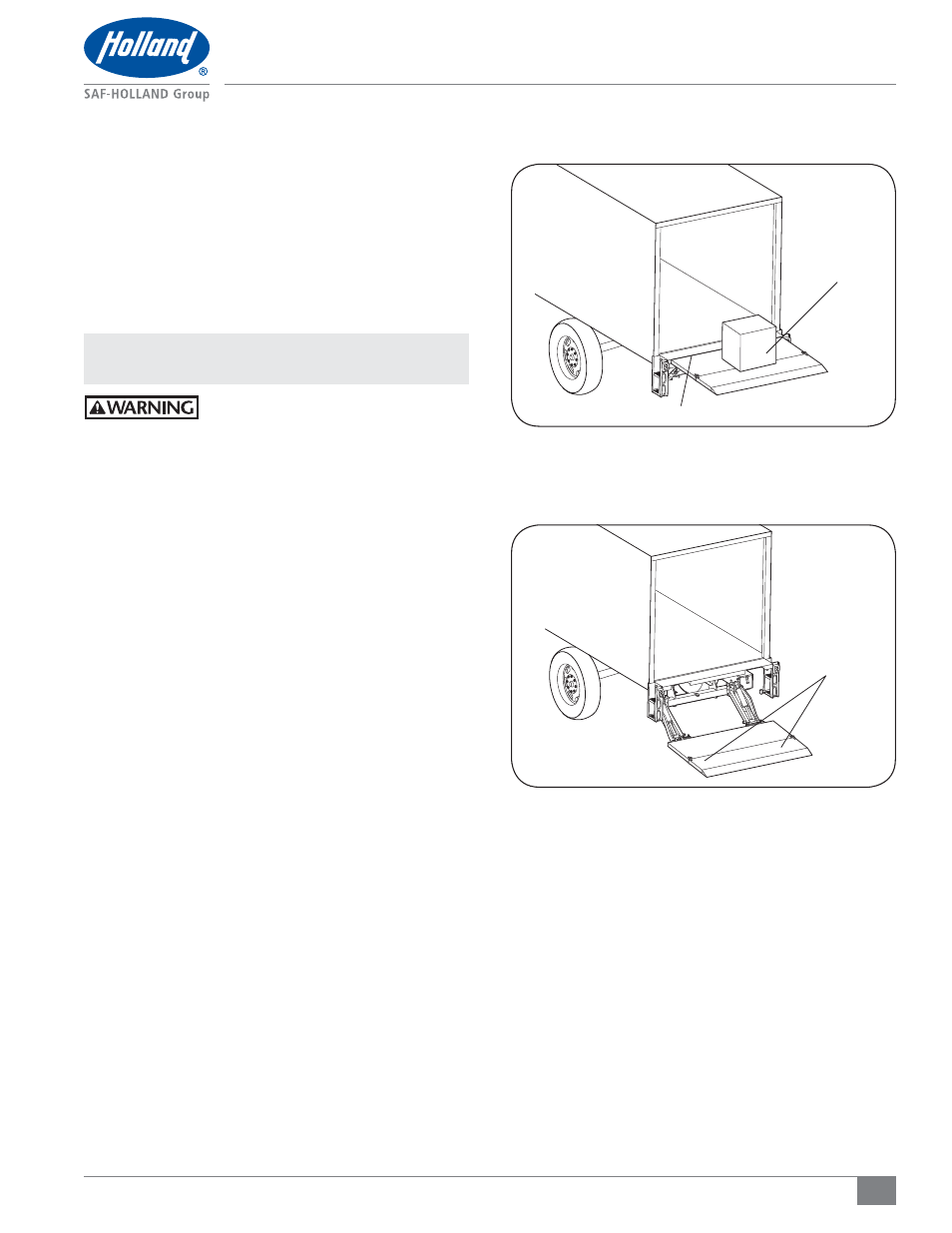

Figure 25
Figure 26
Liftgate Operation Instructions
9.3 Loading from the Vehicle
1. Using the control station, open and raise the platform to
deck height (Refer to Sections 6 and 7).
For TL Models
Engage the cart stops to the Up position (Figure 21).
2. Load the platform by placing the load center as close to
the center of the platform as possible and placing the
heaviest part of the load to the front of the platform
(Figure 25).
IMPORTANT: Never operate a fork lift truck on or over
the platform.
Failure to remove fork lift trucks from
the liftgate platform area could cause
component failure which, if not avoided,
could result in death or serious injury.
3. Using the control station toggle switch on the rear of the
vehicle, lower the platform to the ground.
For TL models
Lower the cart stops and unload (Figure 26). If required,
repeat procedures to continue with additional loads.
4. When the liftgate has been unloaded, stow the platform
(Refer to Section 10).
PLACE LOAD
ON CENTER
OF PLATFORM
FRONT OF PLATFORM
CART STOPS
DOWN
