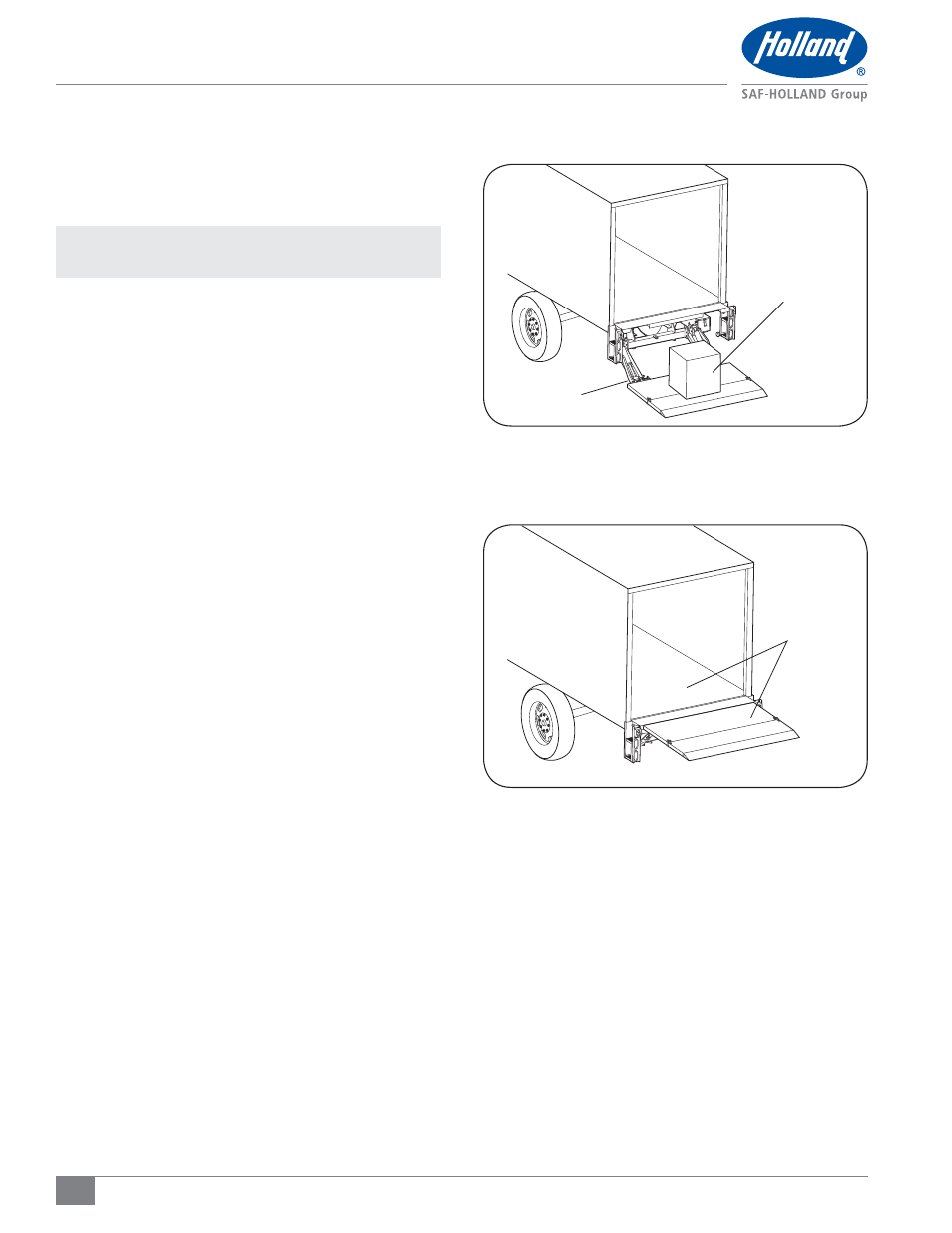

Figure 23
Figure 24
Liftgate Operation Instructions
9.2 Loading from the Ground
1. Using the control station, open the platform from the
stowed position and lower it to the ground (Refer to
Sections 6 and 7).
IMPORTANT: Never operate a fork lift truck on or over
the platform.
Failure to remove fork lift trucks from the liftgate platform
area could cause component failure which, if not avoided,
could result in death or serious injury.
2. Load the platform by placing the load center as close to
the center of the platform as possible and placing the
heaviest part of the load to the front of the platform
(Figure 23).
For TL Models
Engage the cart stops to the up position (Figure 21).
3. Using the control station toggle switch at the rear of the
vehicle, raise the platform to deck height and unload
(Figure 24). If required, repeat procedures to continue
with additional loads.
4. When the liftgate has been unloaded, lower and stow the
platform (Refer to Sections 6 and 10).
PLACE LOAD
ON CENTER
OF PLATFORM
FRONT OF
PLATFORM
DECK HEIGHT
