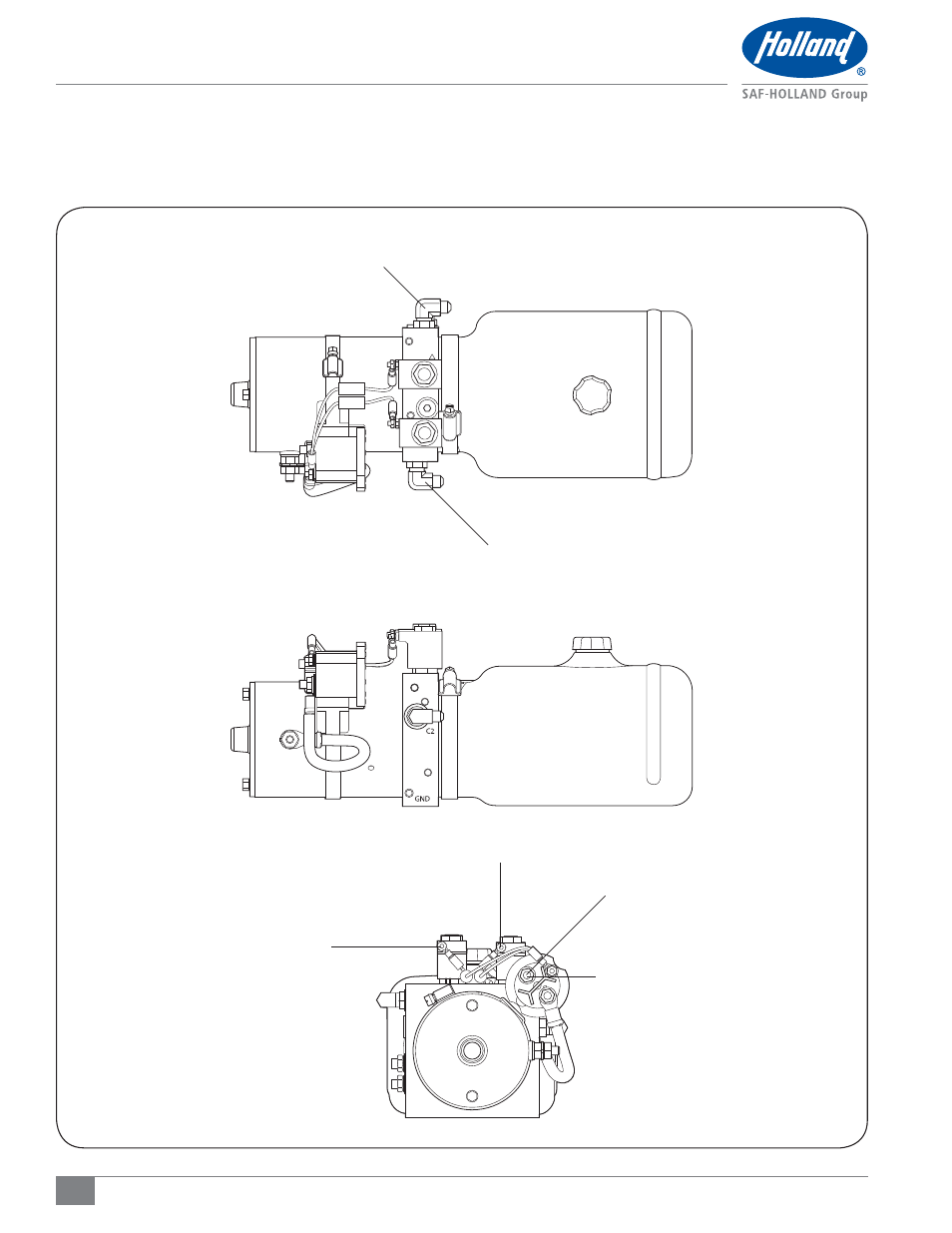

Pump Hydraulic and Electrical Diagram
14. Pump Hydraulic and Electrical Diagrams
Figure 36
A PORT (C1) (UP)
B PORT (C2) (DOWN)
POWER TO CONTROL (GREEN)
WHITE WIRE FROM TOGGLE (4W2P) (UP)
BLACK WIRE
FROM CONTROL
(2W2P) (DOWN)
POWER FROM BATTERY
(TOP VIEW)
(SIDE VIEW)
(END VIEW)
