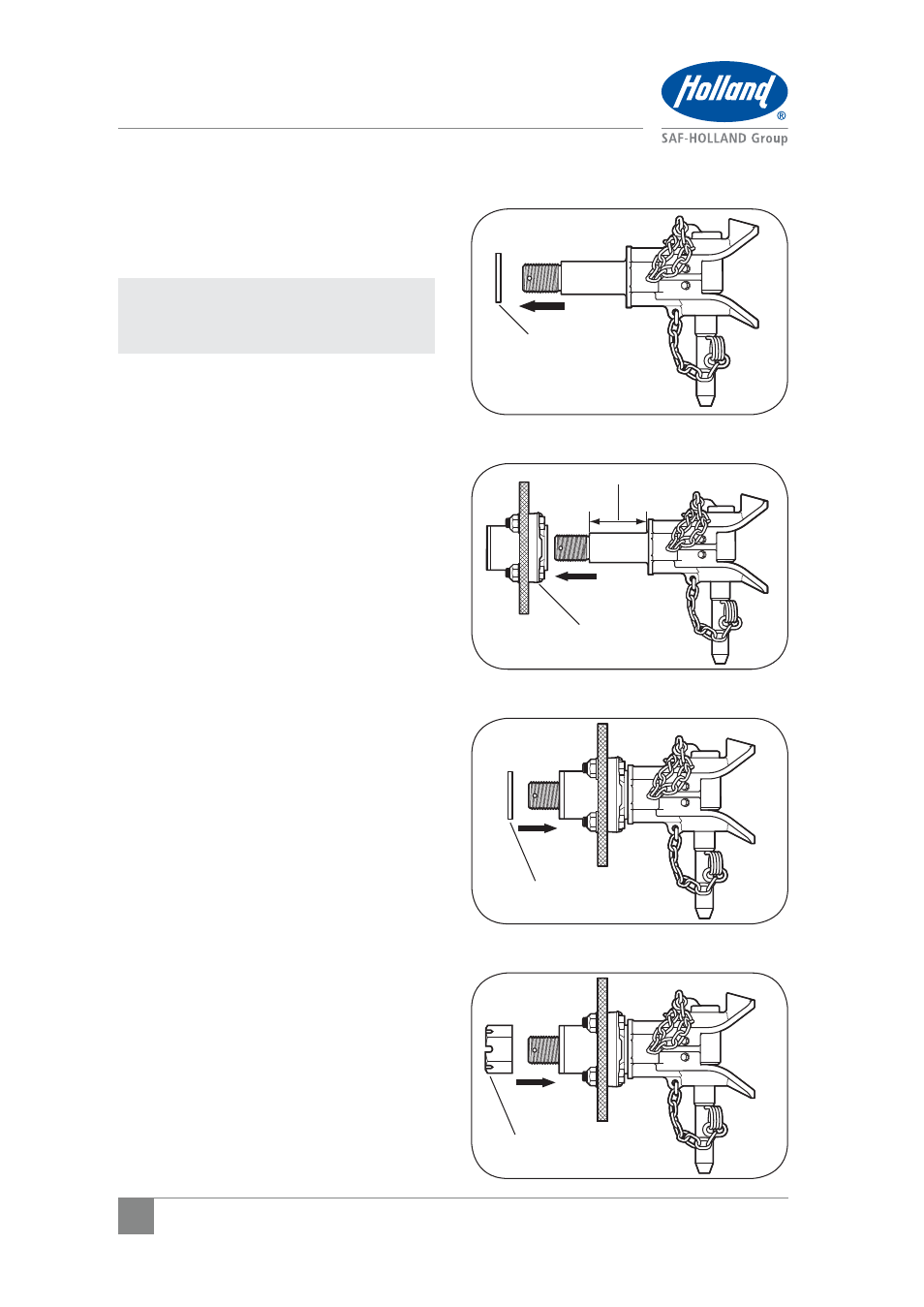

Figure 19
Figure 18
Figure 17
Figure 16
Mounting Instructions
9. Remove and retain the washer (XA-782)
(Figure 16).
*OTUBMMUIFOFX1)4/
TVCBTTFNCMZ
NOTE: Due to weight of the sub-assembly,
lifting and installing may require
two installers.
10. Lightly grease the shank of the
“fishmouth” body (Figure 17).
11. Install the “fishmouth” body (XA-11552)
into the housing (XA-749 or XA-749-1) and
hold against the housing (Figure 17).
12. Install the new washer (XA-782)
(Figure 18).
13. Install the new castellated nut (XB-780-1).
Hand tighten the castellated nut (XB-780-1)
(Figure 19).
14. Torque the castellated nut (XB-780-1)
UPGUMCT /tN
"%%-*()5(3&"4&
8"4)&3
)064*/(
8"4)&3
$"45&--"5&%/65
