13
XL-PH10412UM-en-US Rev A · 2011-10-28 · Amendments and errors reserved. © SAF-HOLLAND, Inc.

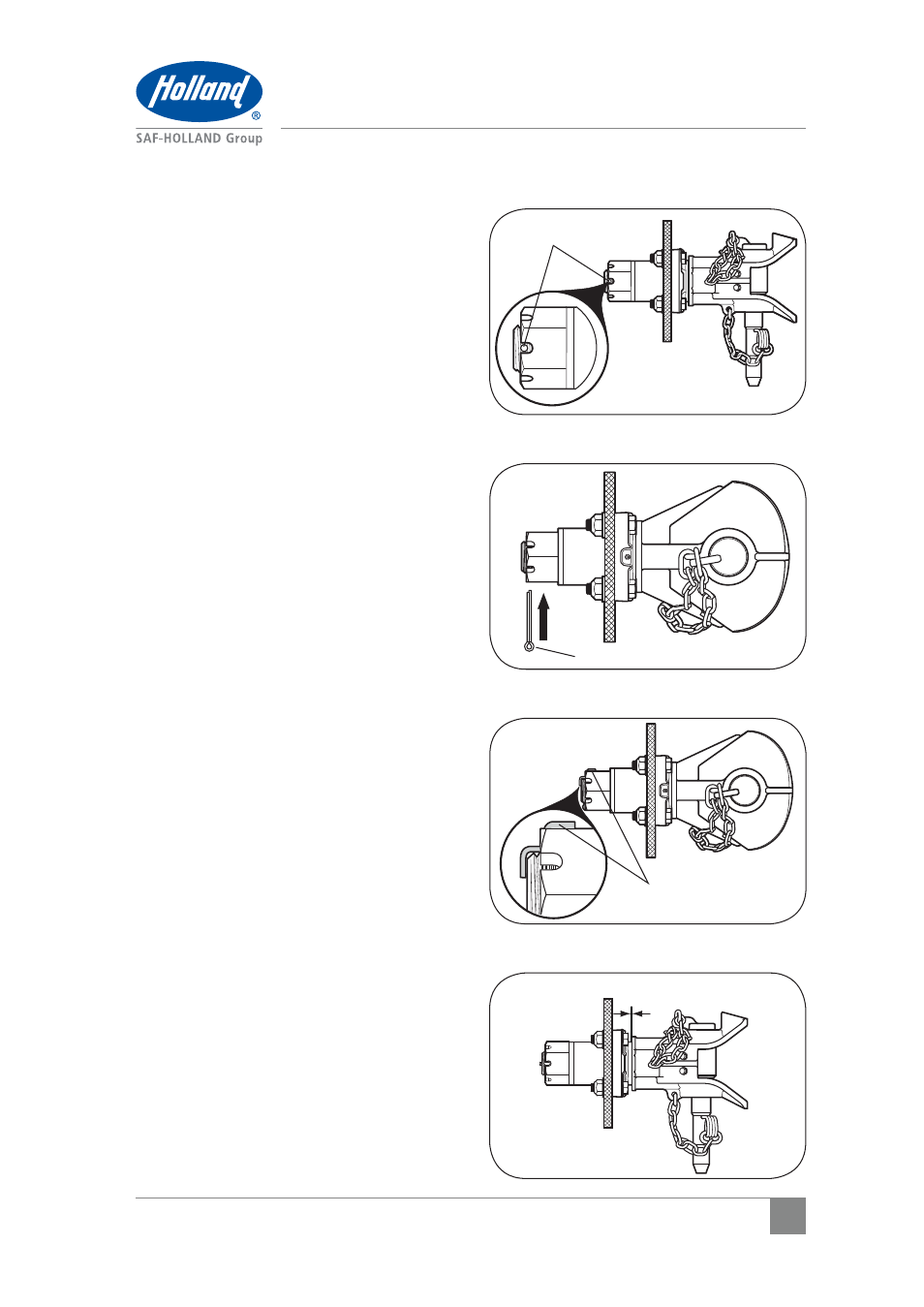

Figure 22
Figure 21
Figure 20
Mounting Instructions
Figure 23
15. Back off the castellated nut (XB-780-1)
until the hole in the shank first becomes
visible through the castellations of the
nut (Figure 20).
16. Insert the cotter pin (XB-781-1)
(Figure 21).
17. When the cotter pin is completely
inserted spread the ends of the cotter
pin (XB-781-1) (Figure 22).
18. Grease the housing using the grease
fitting. Wipe away excess grease to
avoid attracting debris.
19. The coupler should rotate freely by hand
with a maximum gap of .04" (1.0 mm)
between the rear mounting flange and
coupler (Figure 23).
)0-&
$055&31*/
TOP VIEW
.04" MAX
(1.0 mm)
TOP VIEW
413&"%$055&3
1*/&/%4
