Maintenance

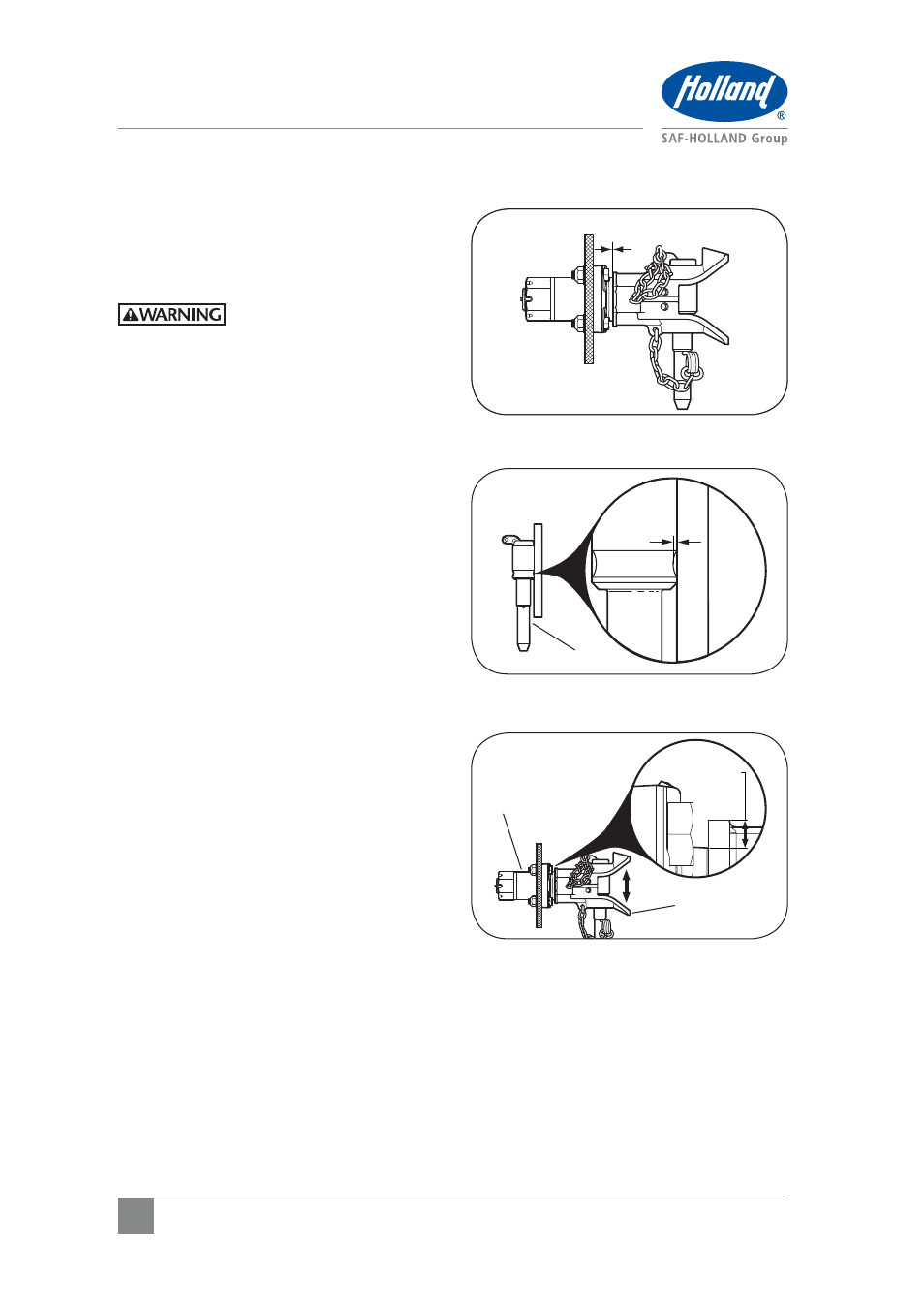

Figure 32 8. Maintenance
The following maintenance steps should be
performed every 30,000 miles (48,280 km)
or three (3) months, whichever comes first.
Failure to inspect and
maintain the coupler may
result in separation of the
coupler and drawbar, which,
if not avoided, could result
in death or serious injury.
1. Clean and check for proper operation.
Inspect for cracked, damaged or
missing parts. Replace as required
using only genuine SAF-HOLLAND
parts. See Parts List, page 5.
2. The coupler should rotate freely by hand
with a maximum gap of .04" (1.0 mm)
between the rear mounting flange and
coupler (Figure 32). To adjust gap.
See Section 6 steps 14-19, pages 12-13.
3. Inspect the clevis pin (XA-10287) for
wear using a straight edge. Replace
when wear exceeds 1/8" or .125"
(3.18 mm) from the original surface
profile (Figure 33).
4. Inspect the wear plates. Replace if worn
or damaged. See Section 9, page 17.
5. Check for vertical play by pushing the
“fishmouth” body against the housing
and then lifting up and pushing down
on the “fishmouth” body (Figure 34).
Replace the housing when the vertical
play between the “fishmouth” body
and housing exceeds 0.125"(6.35 mm).
6. Lubricate the housing using the grease
fitting. Wipe away excess grease to
avoid attracting debris.
7. Regularly clean and lubricate the clevis
pin with a light oil to prevent rust.
Wipe away excess lubricant to avoid
attracting dust and debris.
8. Verify the torques on the mounting
fasteners. See Section 6 step 7, page 10.
Figure 33
Figure 34
X.X ±.125"
(X.X ±3.18 mm)
.04" MAX
(1.0 mm)
“'*4).065)”
#0%:
)064*/(
.125"
(3.2 mm)
$-&7*4
1*/
