Operating Instructions
Figure 29
Figure 30
Figure 31
Figure 28

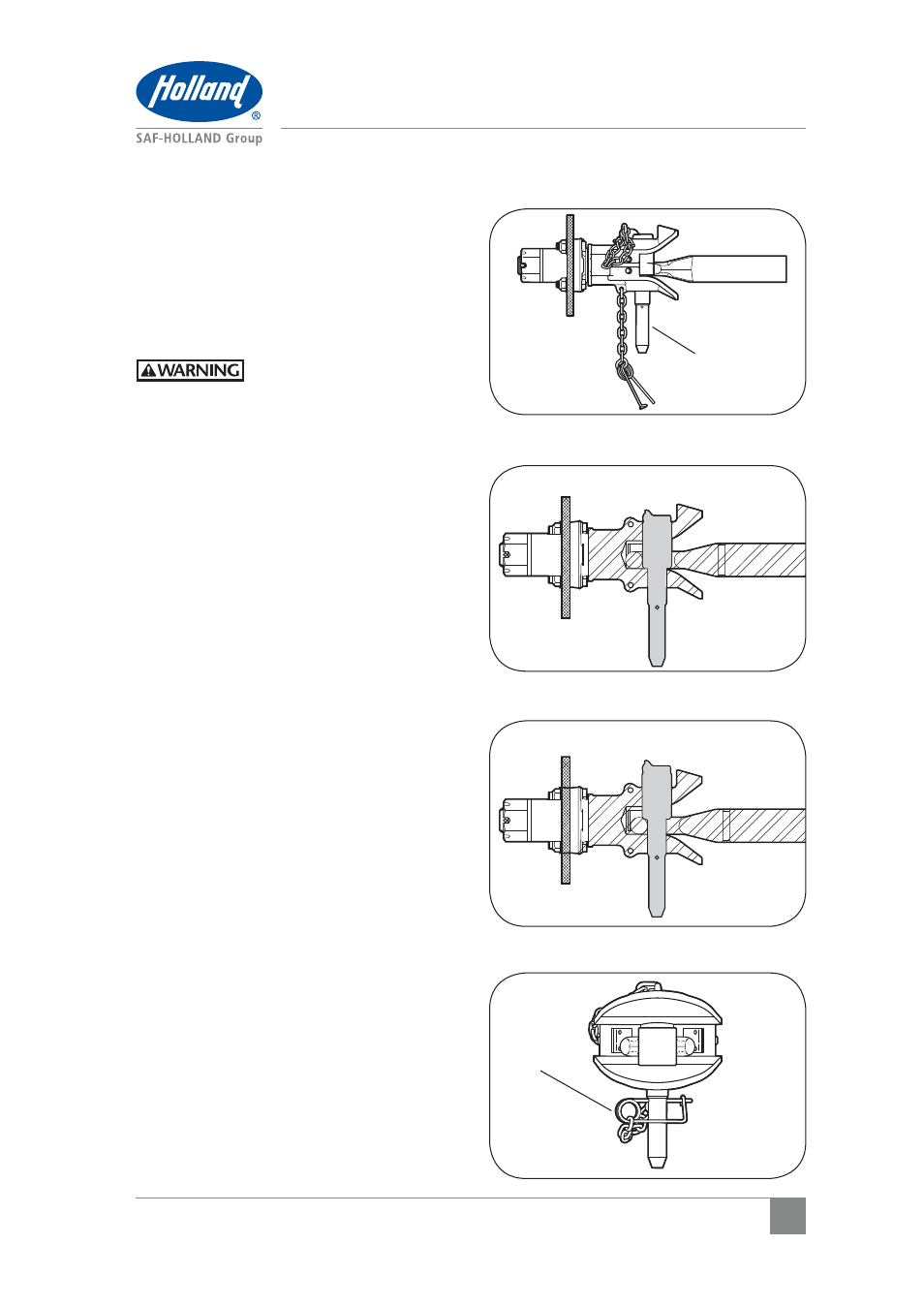

5. Insert the clevis pin (XA-10287)
(Figure 28).
6. Ensure the clevis pin is inserted into
the drawbar eye correctly (Figure 29
and 30).
7. Insert and lock the safety pin (XB-0437)
(Figure 31).
Failure to correctly lock
the safety pin into the
clevis pin can result in
separation of the clevis pin
and drawbar, which, if not
avoided, could result in
death or serious injury.
CORRECT
-0$,&%
4"'&5:1*/
$-&7*41*/
INCORRECT
