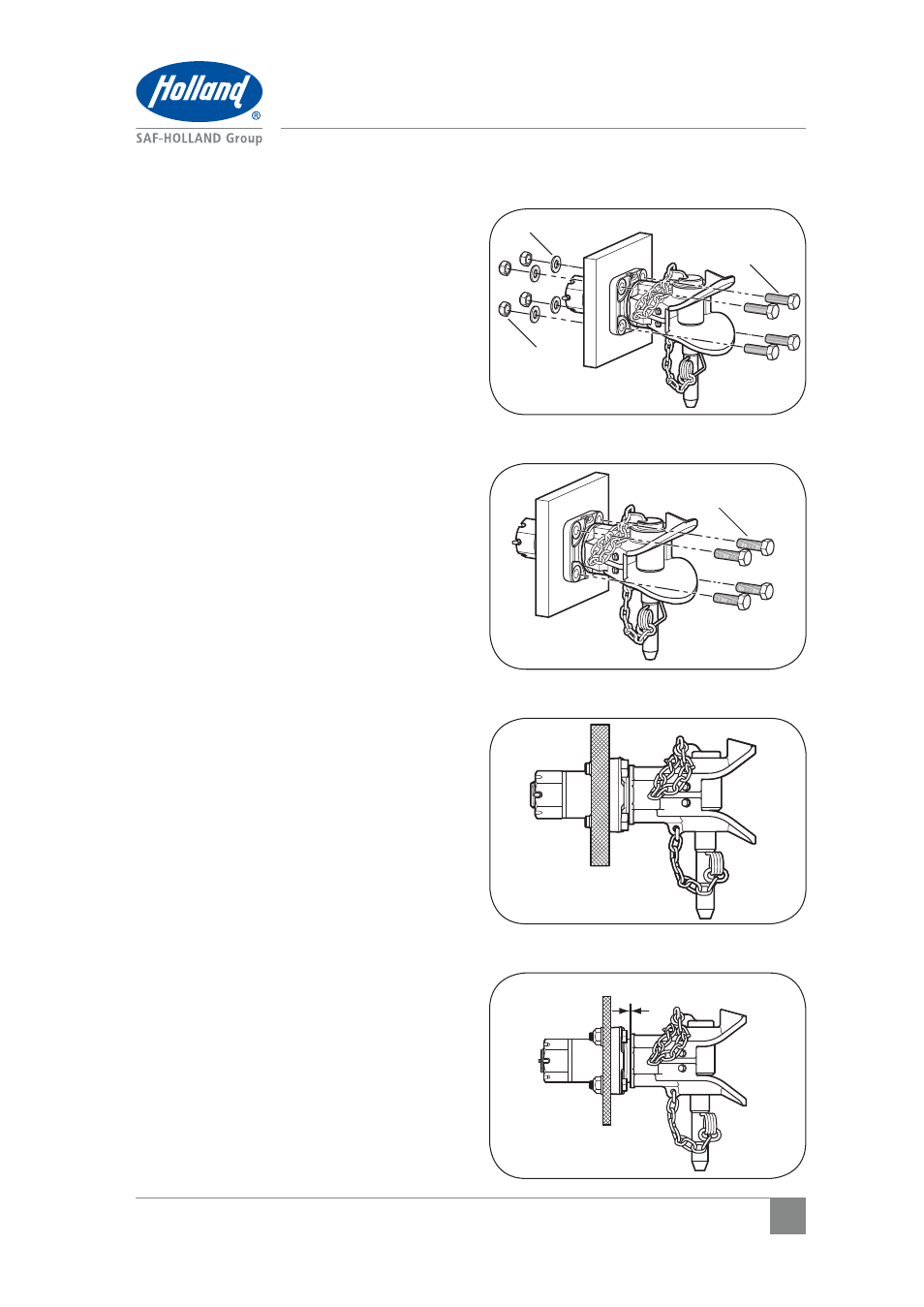

Mounting Instructions
Figure 6
Figure 5
Figure 4
2. Installation
methods:
a. Thru-bolt to the mounting structure:
Insert and tighten four (4) new 7/8"
diameter Grade 8 bolts, ASTM Grade C
lock nuts, and hardened washers.
5PSRVFUPGUMCT /tN
(Figure 4).
b. Direct bolt to drilled and tapped
mounting structure:
Apply nonpermanent thread lock
compound Loctite #242 or equivalent
to four (4) new 7/8" diameter Grade 8
bolts. Insert and torque to 400 ft.-lbs.
/tN
(Figure 5 and 6).
3. Grease the housing using the grease
fitting. Wipe away excess grease to
avoid attracting debris.
4. The”fishmouth” body should rotate freely
by hand with a maximum gap of .04"
(1.0 mm) between the rear mounting
flange and coupler (Figure 7).
Figure 7
(3"%&
#0-54
(3"%&$
-0$,/654
)"3%&/&%8"4)&3
(3"%&
#0-54
.04" MAX
(1.0 mm)
