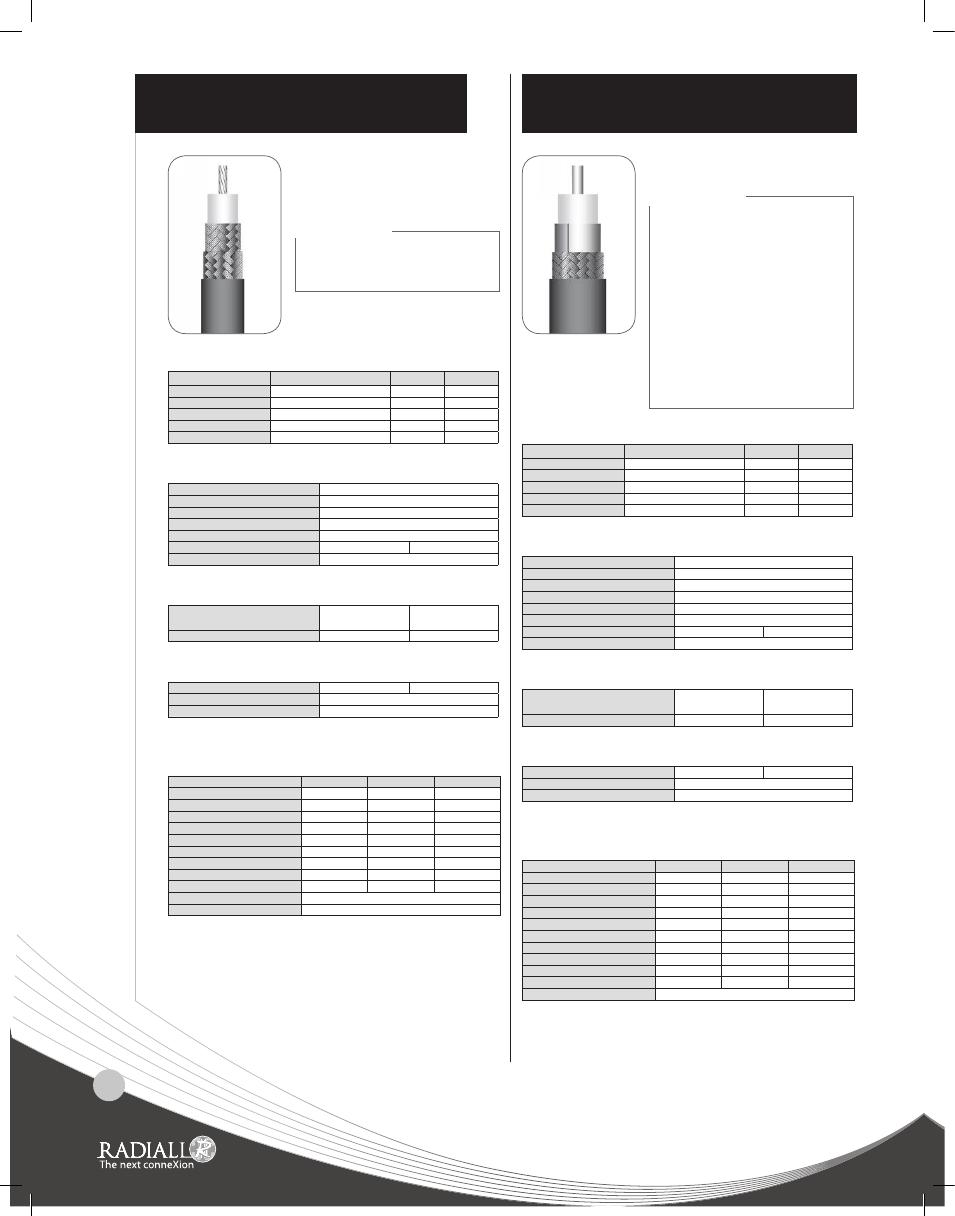

CONSTRUCTION / DImENSIONS
material mm inches
center conductor stranded TC (1) 1.21 0.048
dielectric solid PE (2) 7.24 0.285
inner shield copper braid - -
outer shield copper braid 8.89 0.350
jacket black PVC (3) 10.80 0.425
ElECTRICal ChaRaCTERISTICS
characteristic impedance 75Ω ± 3Ω
operating frequency range DC - 3 GHz
shielding effectiveness 65 dB
voltage withstanding 10 000 V rms
peak power 5.3 kW
capacitance 66 pF / m 20 pF / ft
velocity of propagation 66 % (5 ns / m)
mEChaNICal ChaRaCTERISTICS
recommended minimum
bending radius
50 mm 1.97 inch
weight 165 g / m 0.1104 lbs / ft
ENVIRONmENTal ChaRaCTERISTICS
operating temperature range -40 / +85 °C -40 / +185 °F
fire resistance no
halogen free no
fREqUENCy / aTTENUaTION (typ.) /
CW maX pOWER (sea level / 25 °C)
GHz dB / m dB / ft Watts
0.1 0.09 0.03 395
0.2 0.13 0.04 280
0.3 0.17 0.05 228
0.5 0.22 0.07 177
1.0 0.32 0.10 125
1.5 0.40 0.12 102
2.0 0.48 0.14 88
2.5 0.54 0.16 79
3.0 0.60 0.18 72
attenuation calculation (dB/m) (0.28 x √f GHz) + (0.04 x f GHz)
power calculation (W) 125 / √f GHz
(1) TC = Tinned Copper
(2) PE = PolyEthylene
(3) PVC = PolyVinyl Chloride
CONSTRUCTION / DImENSIONS
material mm inches
center conductor solid AlCC (1) 4.47 0.176
dielectric foam PE (2) 11.56 0.455
inner shield Al (3) foil 11.71 0.461
outer shield TC (4) braid 12.45 0.490
jacket black PE (2) 14.99 0.590
ElECTRICal ChaRaCTERISTICS
characteristic impedance 50Ω ± 2Ω
cut-off frequency 10.3 GHz
recommend. operat. freq. range DC - 6 GHz
shielding effectiveness > 90 dB
voltage withstanding 4 000 V DC
peak power 40 kW
capacitance 76.6 pF / m 23.4 pF / ft
velocity of propagation 87 % (3.8 ns / m)
mEChaNICal ChaRaCTERISTICS
recommended minimum
bending radius
38.1 mm 1.50 inch
weight 200 g / m 0.131 lbs / ft
ENVIRONmENTal ChaRaCTERISTICS
operating temperature range -40 / +85 °C -40 / +185 °F
fire resistance no
halogen free no
fREqUENCy / aTTENUaTION (typ.) /
CW Typ pOWER (sea level / 40 °C)
GHz dB / m dB / ft Watts
0.1 0.03 0.008 2 970
0.5 0.06 0.018 1 270
1.0 0.09 0.026 870
1.5 0.11 0.033 700
2.0 0.13 0.039 590
2.5 0.15 0.044 530
3.0 0.16 0.049 470
4.0 0.19 0.058 400
5.0 0.22 0.066 350
6.0 0.25 0.074 310
attenuation calculation (dB/m) (0.078 x √f GHz) + (0.009 x f GHz)
(1) AICC = Aluminum Covered Copper
(2) PE = PolyEthylene
(3) Al = Aluminum
(4) TC = Tinned Copper
Due to its 75 ohms characteristic impedance,
RG 216 is rather dedicated to TV/Video
application.
This LMR600 cable can be considered as an
alternative to equivalent diameter corrugated
cables.
The main advantage is greater flexibility and
bendability allowing easy routing during the
installation.
The foam dielectric provides excellent loss and
low return loss levels.
The double screen construction (Aluminum foil
+ tinned copper braid) offers a high level of
shielding as well as low leakage.
This cable will be advised for feeder and jumper
assemblies in cellular networks as well as
applications requiring easy routing.
APPLICATION NOTE
APPLICATION NOTE
Cable assemblies
flEXIblE CablE 11/75 D
(RG216)
lOW lOSS flEXIblE CablE
15.2/50 D (LMR600 type)
p/N: C291 610 000
(MIL-C-17/77-RG216)
p/N: C291 626 070
Note: typical attenuation for a couple of connectors (dB) = 0.045 x √f (GHz)
