Northern Connectors Radiall RF & Microwave Cable Assemblies - Manual (Page 36)

www.radiall.com
B-37

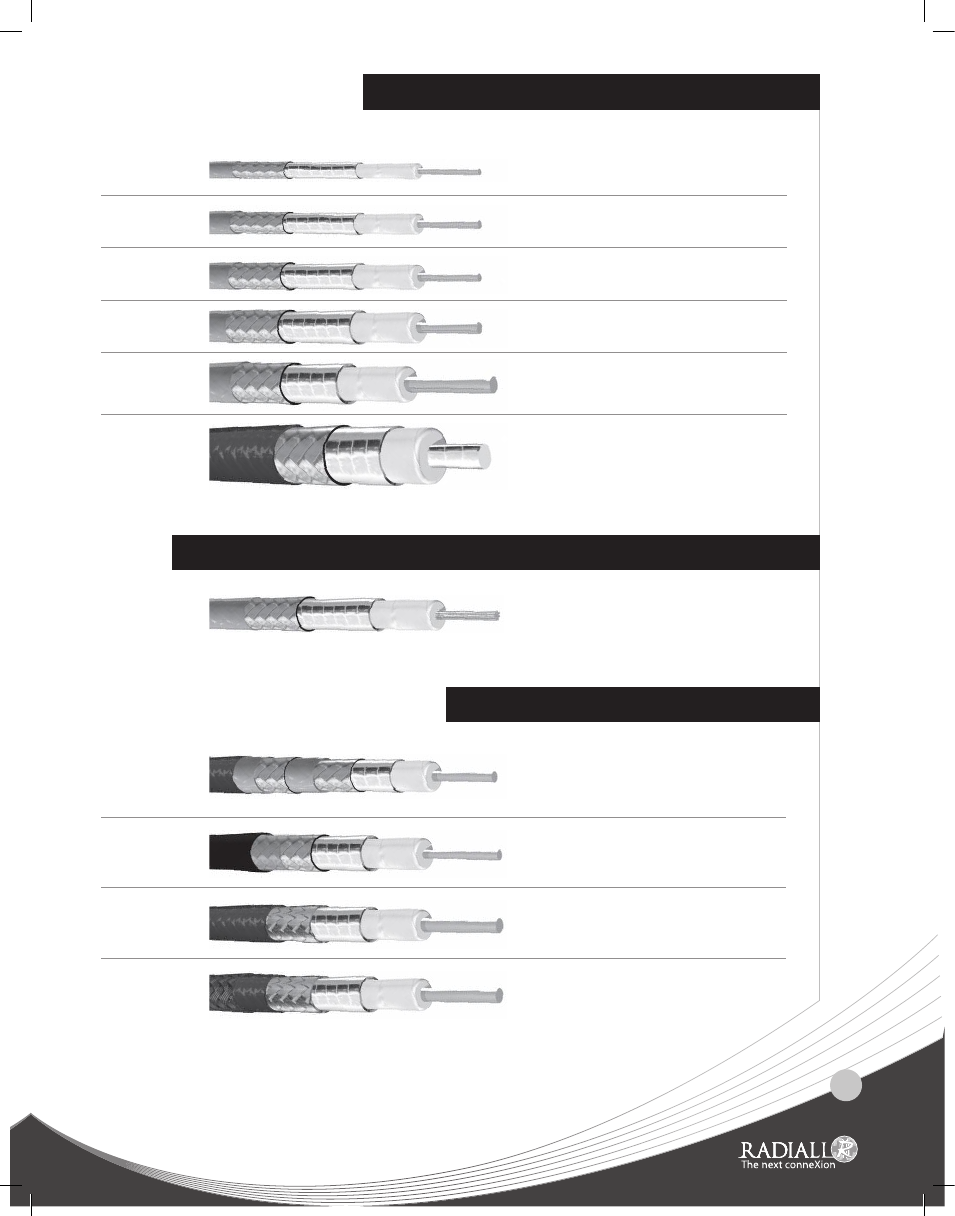

SHF Cable
UlTRa lOW lOSS Shf CablE RaNgE
alSO aVaIlablE WITh STRaNDED INNER CONDUCTOR
OThER aVaIlablE VERSIONS
A/10
Armored
cable
Crush resistant
1000N/10cm
SHF5MA/10
and SHF8MA/10
OD
Outdoor
cable
UV resistant SHF5OD, SHF5MOD,
SHF8OD and SHF8MOD
LW-2
Light weight
cable
44 g/m for SHF5M
( 13.3 g/ft)
92 g/m for SHF8M
( 28.04 g/ft)
SHF5MLW-2
and SHF8MLW-2
AF-2
Air Frame
cable
51 g/m for SHF5M
( 15.4 g/ft)
100 g/m for SHF8M
( 30.48 g/ft)
SHF5MAF-2 and SHF8MAF-2
Hermetically sealed @ 150°C
15 Km (50,000 ft)
fluid resistant
More flexible SHF3, SHF5 and SHF8
SHF2.4M
DC - 40GHz
4.59 dB/m @ 40 GHz
139 dB/100ft
14 g/m
4.3 g/ft
SHF3M
DC - 40GHz
3.11 dB/m @ 40 GHz
(1.91 @ 18 GHz)
94 dB/100ft (58 @ 18 GHz)
35 g/m
10.6 g/ft
SHF4.2M
DC - 30GHz
2.24 dB/m @ 30 GHz
(1.63 @ 18 GHz)
68 dB/100ft (49 @ 18 GHz)
45 g/m
13.6 g/ft
SHF5M
DC - 26.5GHz
1.27 dB/m @ 26.5 GHz
(1.02 @ 18 GHz)
38 dB/100ft (31 @ 18 GHz)
60 g/m
18.2 g/ft
SHF8M
DC - 18GHz
0.68 dB/m @ 18 GHz
21 dB/100ft
130 g/m
39.4g/ft
SHF13
DC - 9.5GHz
0.33 dB/m @ 9.5 GHz
10dB/100ft
280 g/m
84.8 g/ft
