3.3.2 X1 & X2 Digital Input
The TSM23C drives include two inputs: X1 and X2. They accept 5 to 24 volt single-ended or
differential signals. The diagrams below show how to connect them to various commonly used
devices.

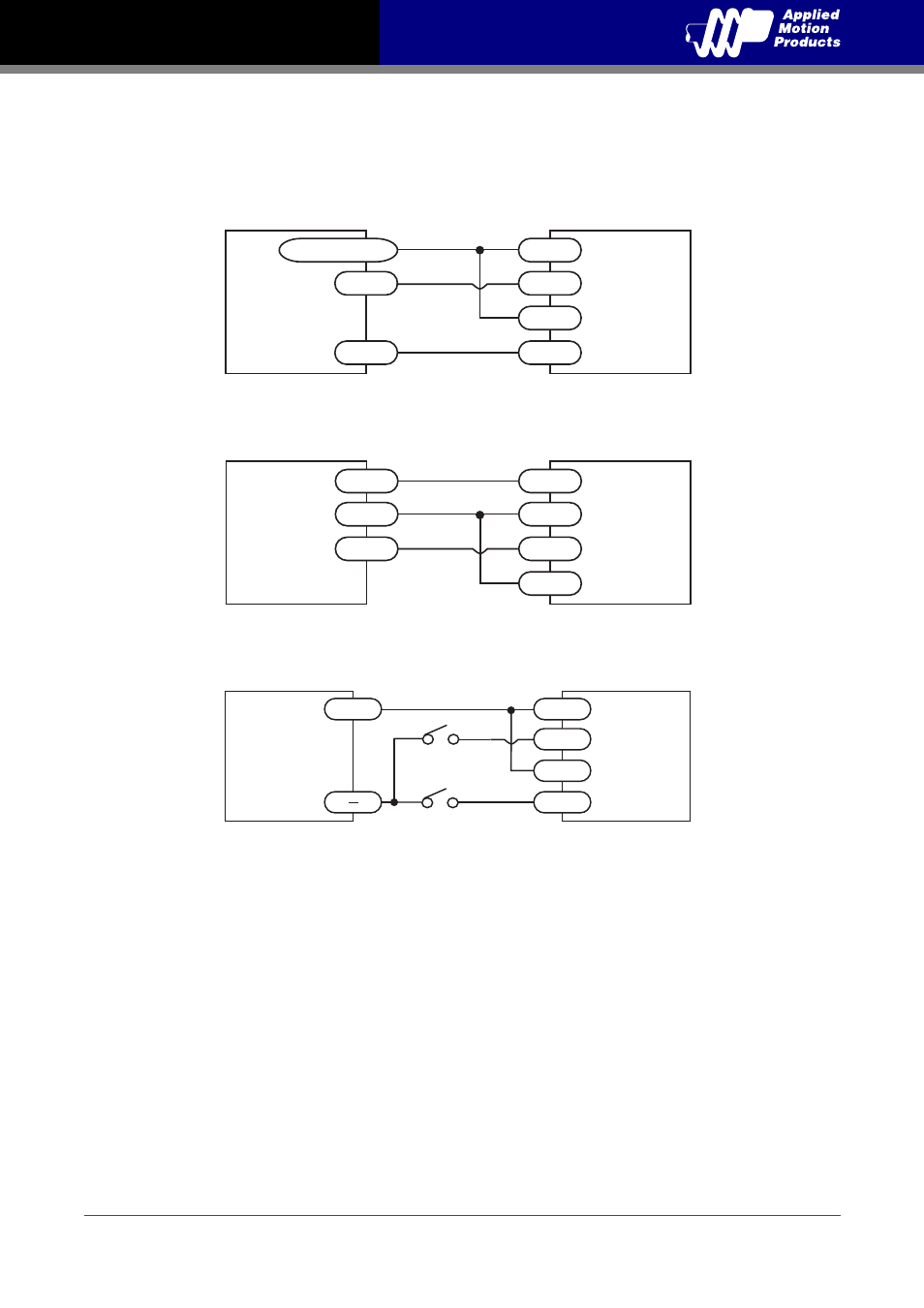

+5v to +24v out
X1
X2
X1+
X1-
X2+
X2-
Indexer
with
Sinking
Outputs
Connecting to Indexer with Sinking Outputs
TSM23C
X2
COM
X1
Indexer
with
Sourcing
Outputs
X2+
X2-
X1+
X1-
Connecting to Indexer with Sourcing Outputs
TSM23C
X2+
X2-
X1+
X1-
5 - 24
volt DC
Power
Supply
Using Mechanical Switches
+
TSM23C
