TSM23C Hardware Manual

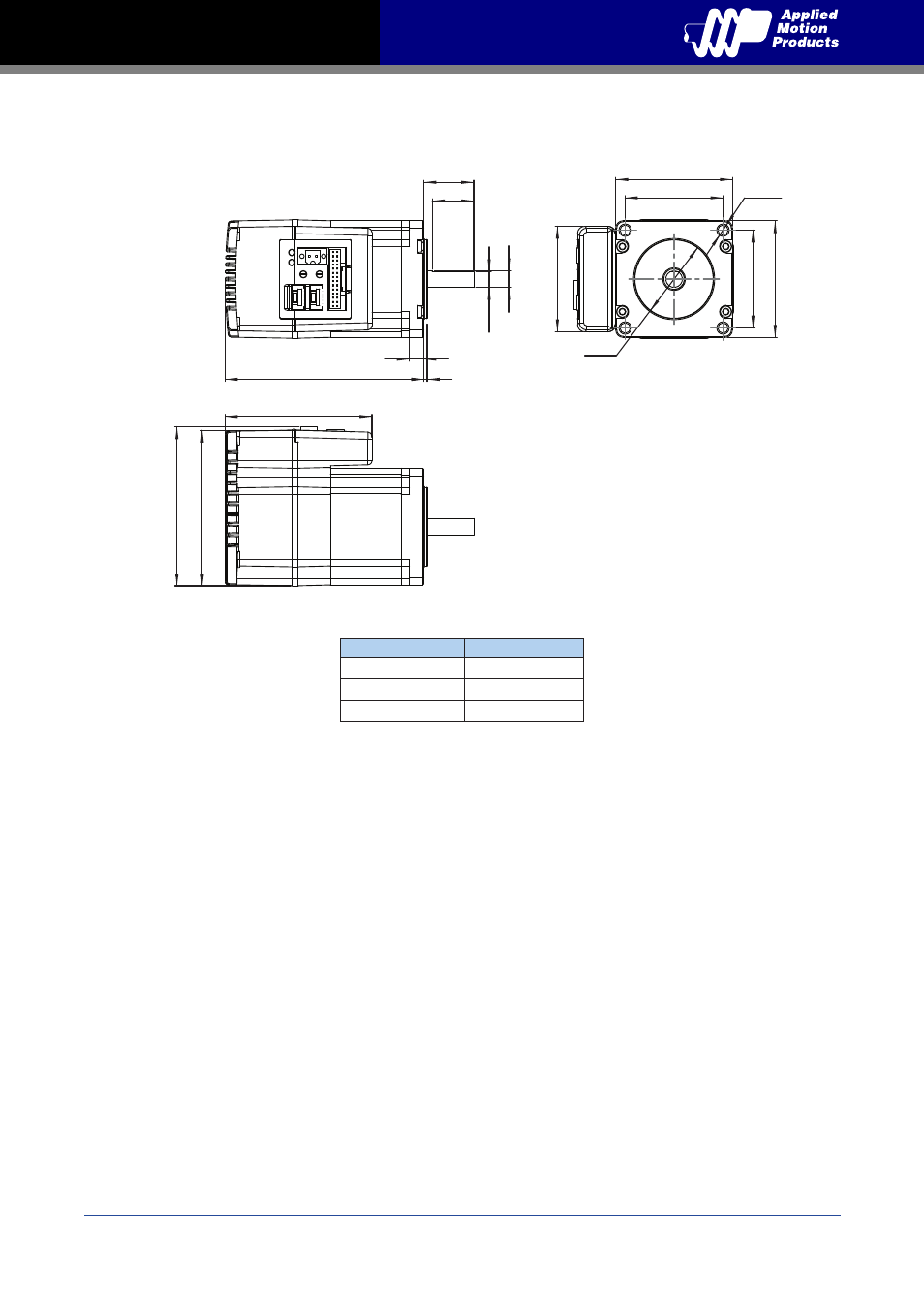

5.2 Mechanical Outlines
Unit:mm
Model Length (L)
TSM23C-2CG 95.6
TSM23C-3CG 117.6
TSM23C-4CG 120.6
47.14
47.14
Ø38.1
4-Ø5.1
1.6
7
L
56.2
Ø8
7.5FLA
T
24
20
70.6
76.7
56.2 50.9
75
