Table 8 ( Continuation ) : Partial energy screens�

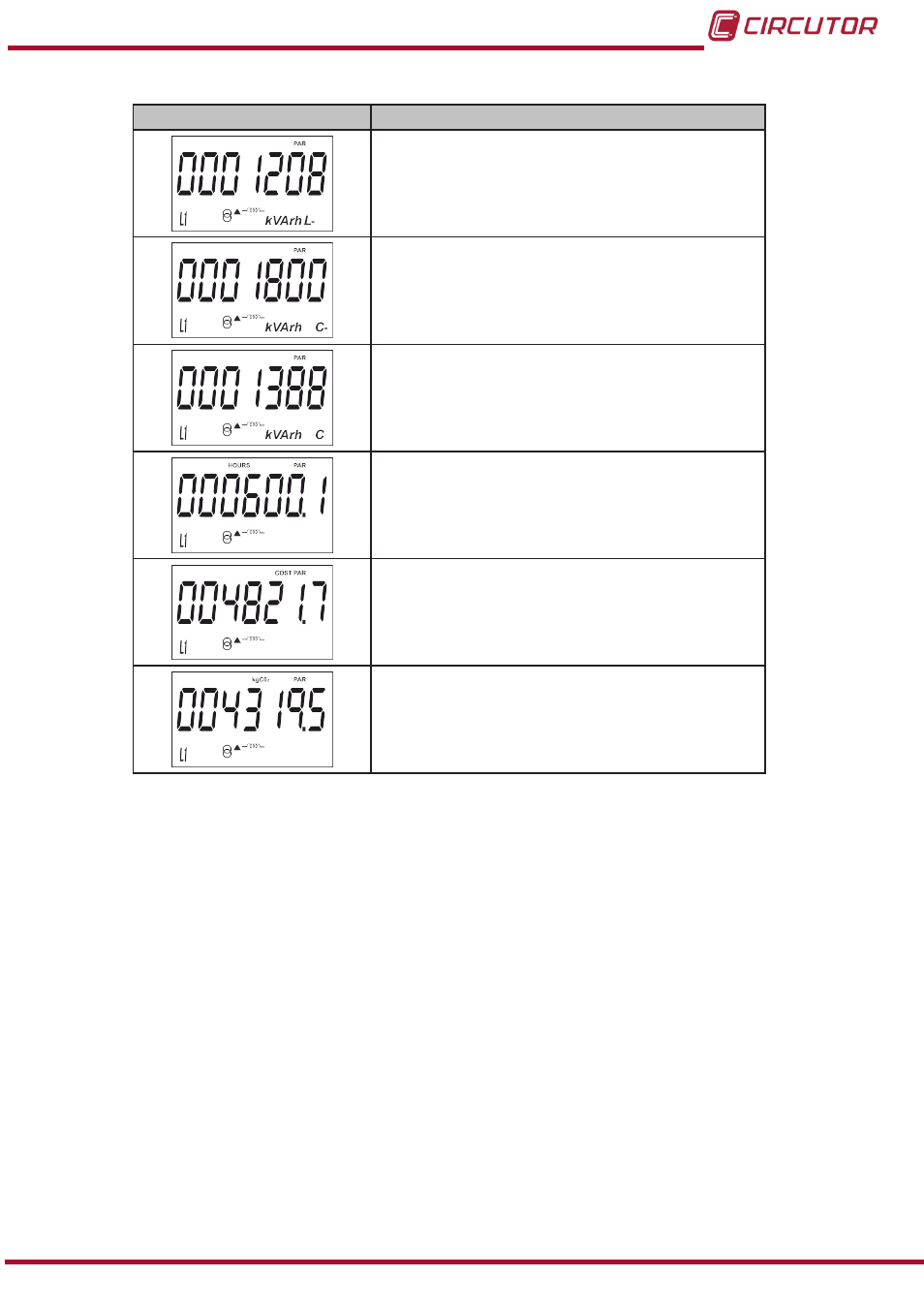

Screen Parameters
Partial reactive energy, quadrant 2 (L-). (1)
Only displayed in the 4-quadrant version.
Partial reactive energy, quadrant 3 ( C-) (1)
Only displayed in the 4-quadrant version.
Partial reactive energy, quadrant 4 (C+) (1)
Hours in partial operation
(since the last partial reset )
Cost of the partial active energy consumed
(since the last partial reset ) (2)
CO
2
emissions into the atmosphere.
(since the last partial reset ) (2)
( 1) Only displayed if the reactive energy display option has been selected in the setup menu (see “4.7.6.
Display”).
(2) Only displayed if the efficiency factors display option has been selected in the setup menu (see
“4.7.6. Display”).
