8.8 Rack Mount Slides (-RMS)
For mounting the 2253i/iX in a 19-inch instrument cabinet, it is recommended to use the –RMS rack
mount slides kit to provide adequate support for the power source weight. This allows the unit to be
pulled forward for servicing as well. When using a cabinet not supplied by AMETEK Programmable
Power, contact the cabinet vendor for shelf or bracket accessories designed to support the weight of
an instrument.
The rack mount slide mounting holes centerlines on the side of the power source are 2.30 inches /
58.4 mm above the bottom edge of the front panel.
Note: The 2253i/iX series models cannot be mounted in a cabinet by just using the front panel
rack ears. They require additional support.

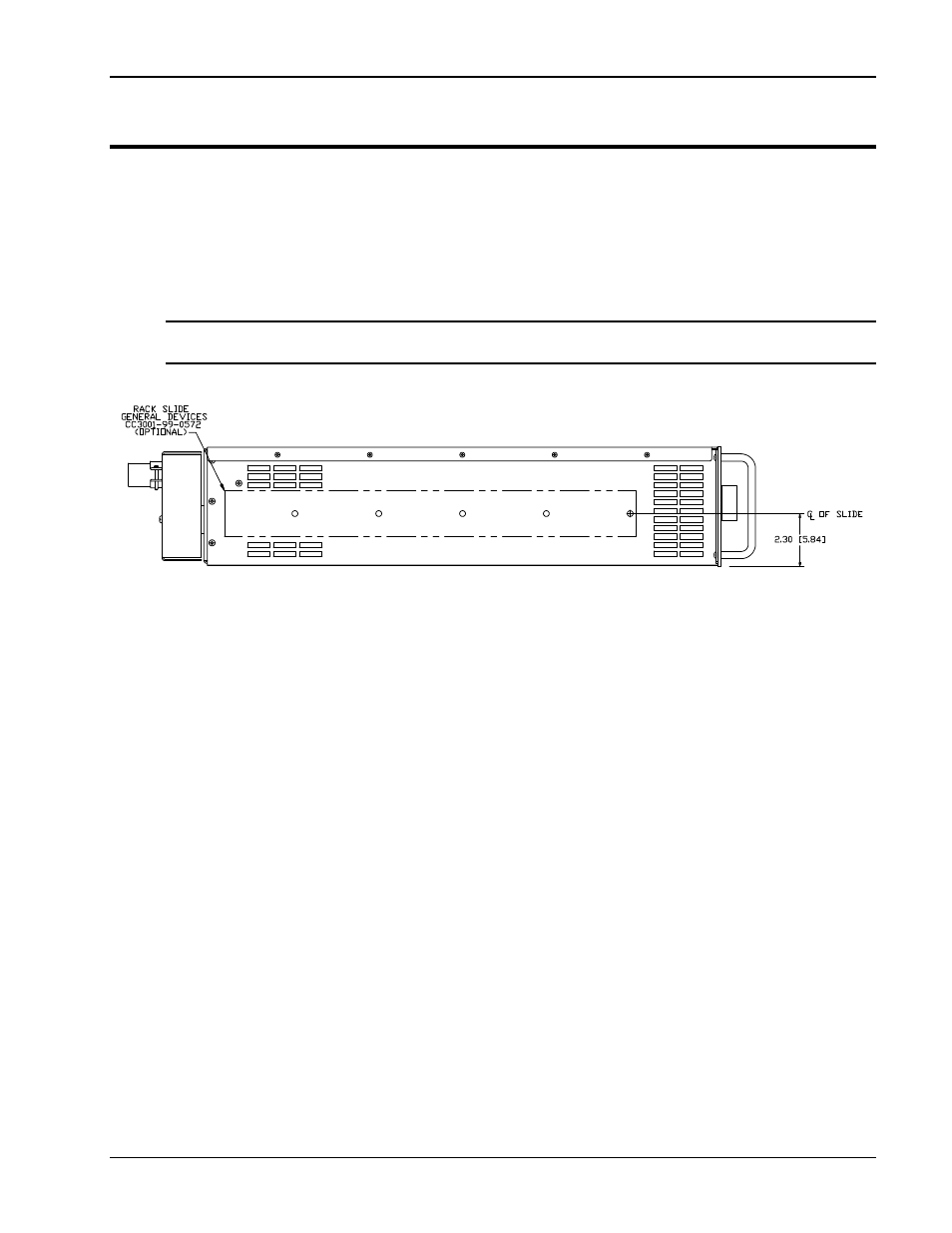

Figure 8-1: Rack Mount Slides (-RMS option) position
