User Manual
2253i / 2253iX
AMETEK California
Instruments
119
FREQUENCY MODULATION
This test requires a numeric value equal to the modulation rate in Hz. This value must be between
0.01 Hz and 100 Hz. The frequency modulation is calculated based on the modulation rate as defined
in Figure 9-5. This test will last for a minimum of 2 minutes.

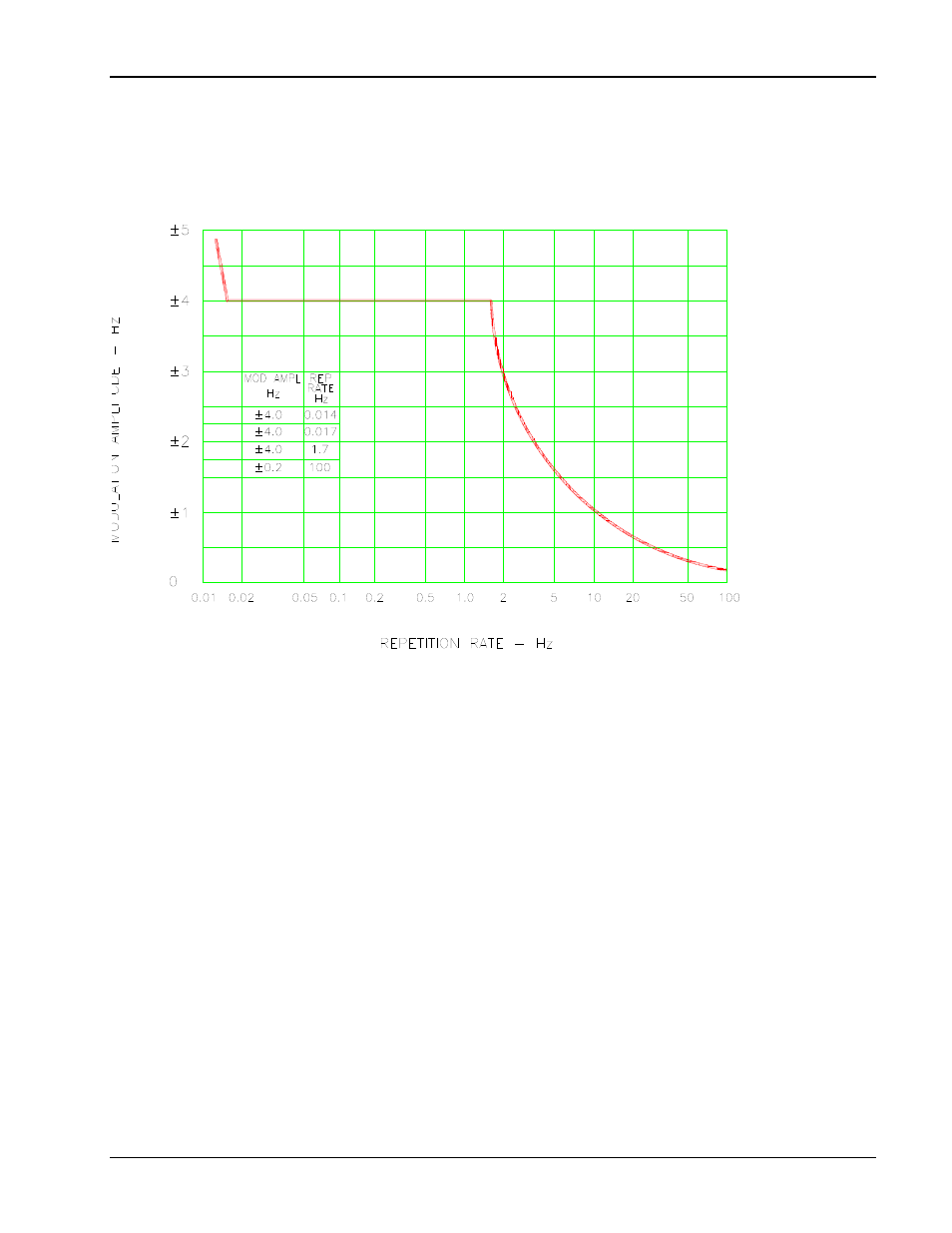

Figure 9-5: Frequency Modulation
