Installation

DLM-E 3kW & 4kW Series Power Supplies

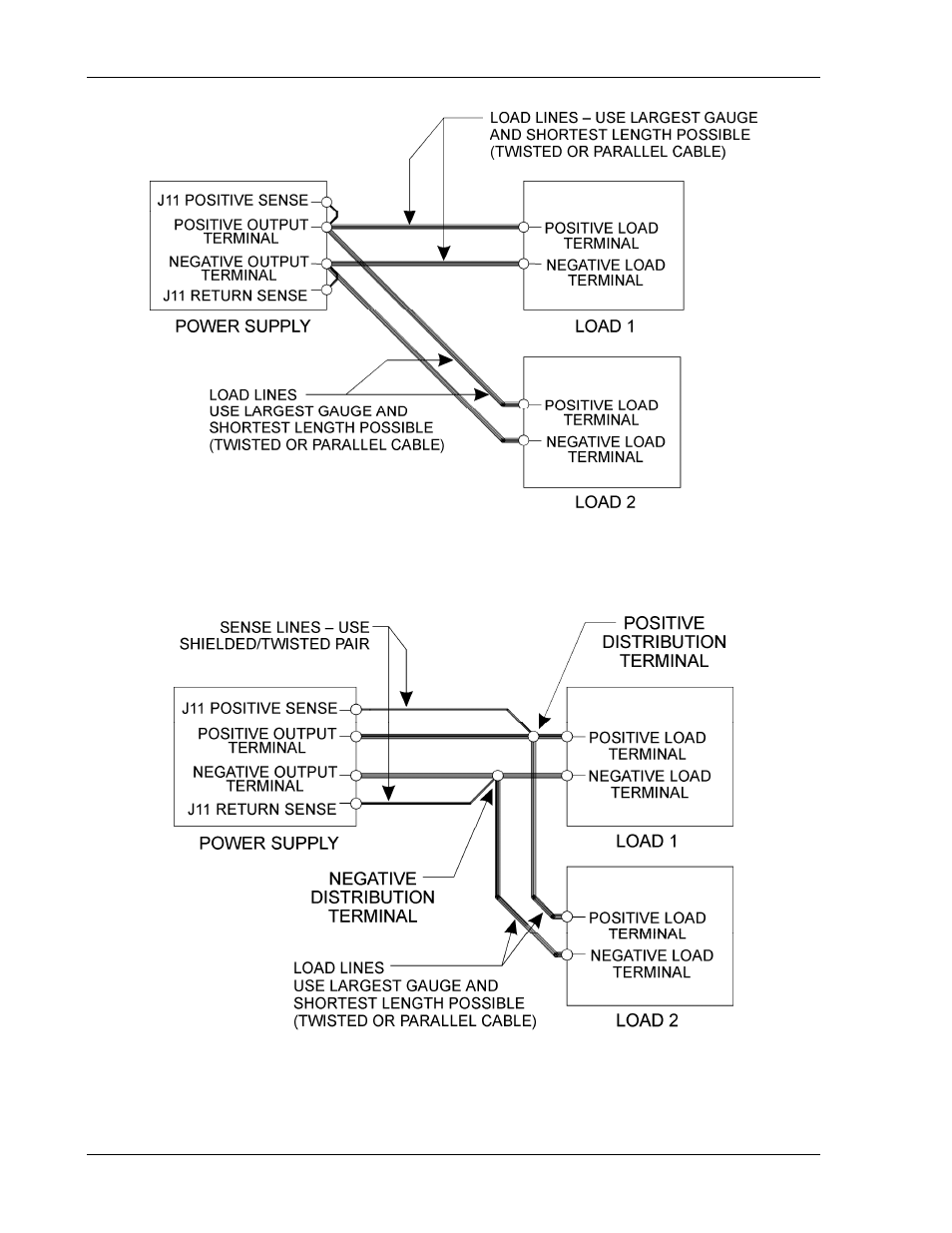

Figure 2–6. Multiple Loads with Local Sensing

(Local sense lines shown are default J11 to busbar connections)

Figure 2–7. Multiple Loads with Remote Sensing

(Local sense lines shown are default J11 to busbar connections)

2-14

M362000-01 Rev E
