Mechanical and Connector Information
RTM-ATCA-736X-DD Installation and Use (6806800L82C)
49
4.2.1
1000Base-T Ethernet Ports
Two Ethernet ports are provided on the rear panel of the RTM using an RJ-45 style shielded
connectors. Each of these ports route to an Intel® 82580 Ethernet controller, and accessed by
the front blade through PCI express signaling. Each port auto negotiates to 10/100/1000BASE-
T.
Table 4-5 10/100/1000 Management Port Connector Pin Assignments
Pin
Signal Name
Pin
Signal Name
1
LAN0_A+
5
LAN0_C-
2
LAN0_A-
6
LAN0_B-
3
LAN0_B+
7
LAN0_D+
4
LAN0_C+
8
LAN0_D-

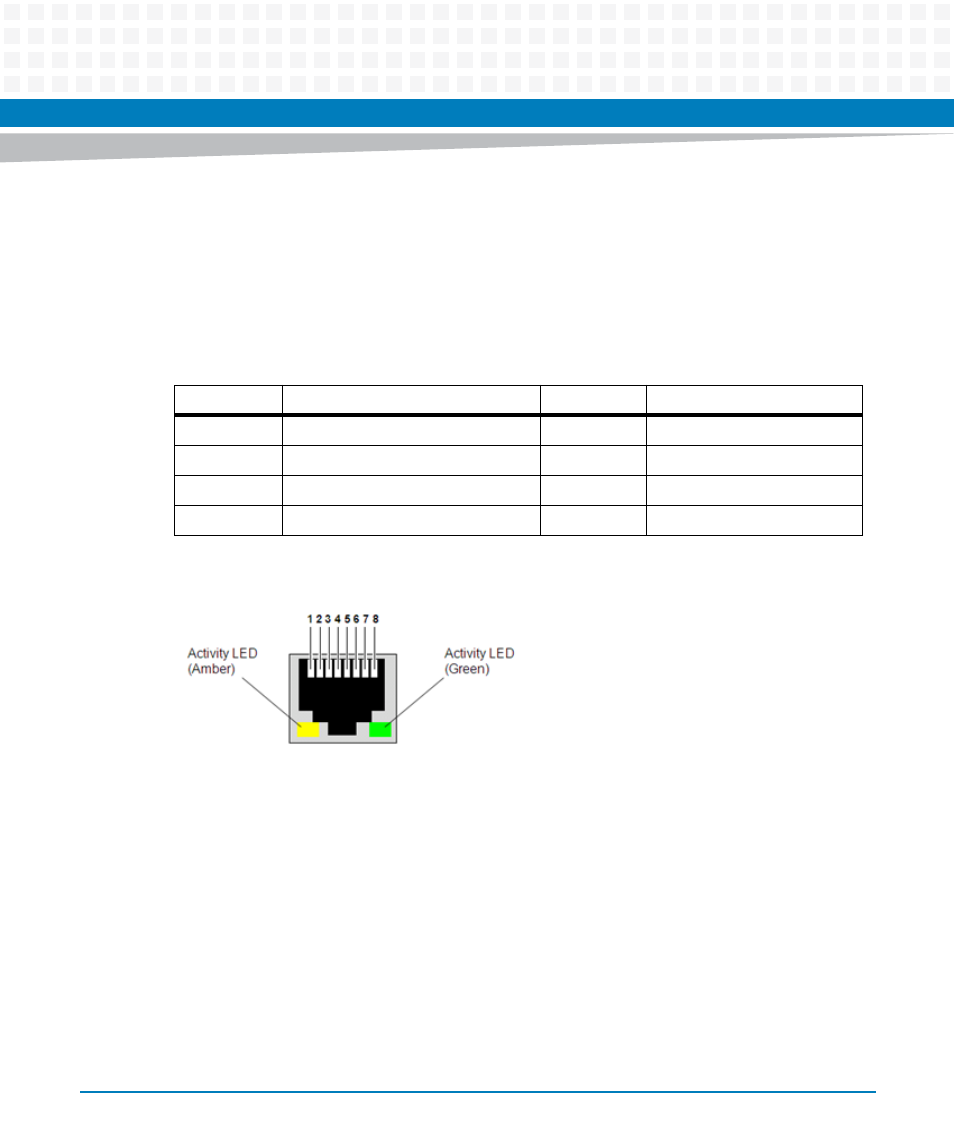

Figure 4-2
10/100/1000 Mb Management Port Pin Location Diagram
