KST-12000 Ku-Band Satellite Terminal Revision 4
Single-Thread System Installation MN/KST12000.IOM
2.5 External Connections
Connections between the RFT and other equipment are made through six connectors.
These connectors are listed in Table 2-1, and their locations are shown in Figure 2-1.
The use of each connector is described in the following paragraphs.
Table 2-1. Rear Panel Connectors
Name Ref Des
Connector
Type Function
TX/IF IN J1 TNC TX IF INPUT (70 MHz)
TX/RF OUT J2 WR-75 G 14.0 to 14.5 GHz OUT
RX/IF OUT J3 TNC RX IF OUT (70 MHz)
RX/RF IN J4 Type N 10.95 to 12.75 GHz Input
PRIME PWR J5 Standard Prime Power Input
REMOTE J6 26-pin CIR Remote Interface
GND None #10-32 Stud Chassis Ground
J6
J1
J5 J4 J2
REMOTE
TX/IF IN
RX/IF
OUT
RX/RF
IN
PRIME
POWER
WAVEGUIDE
OUTPUT
FUSE
ERDE
GND
FUSE

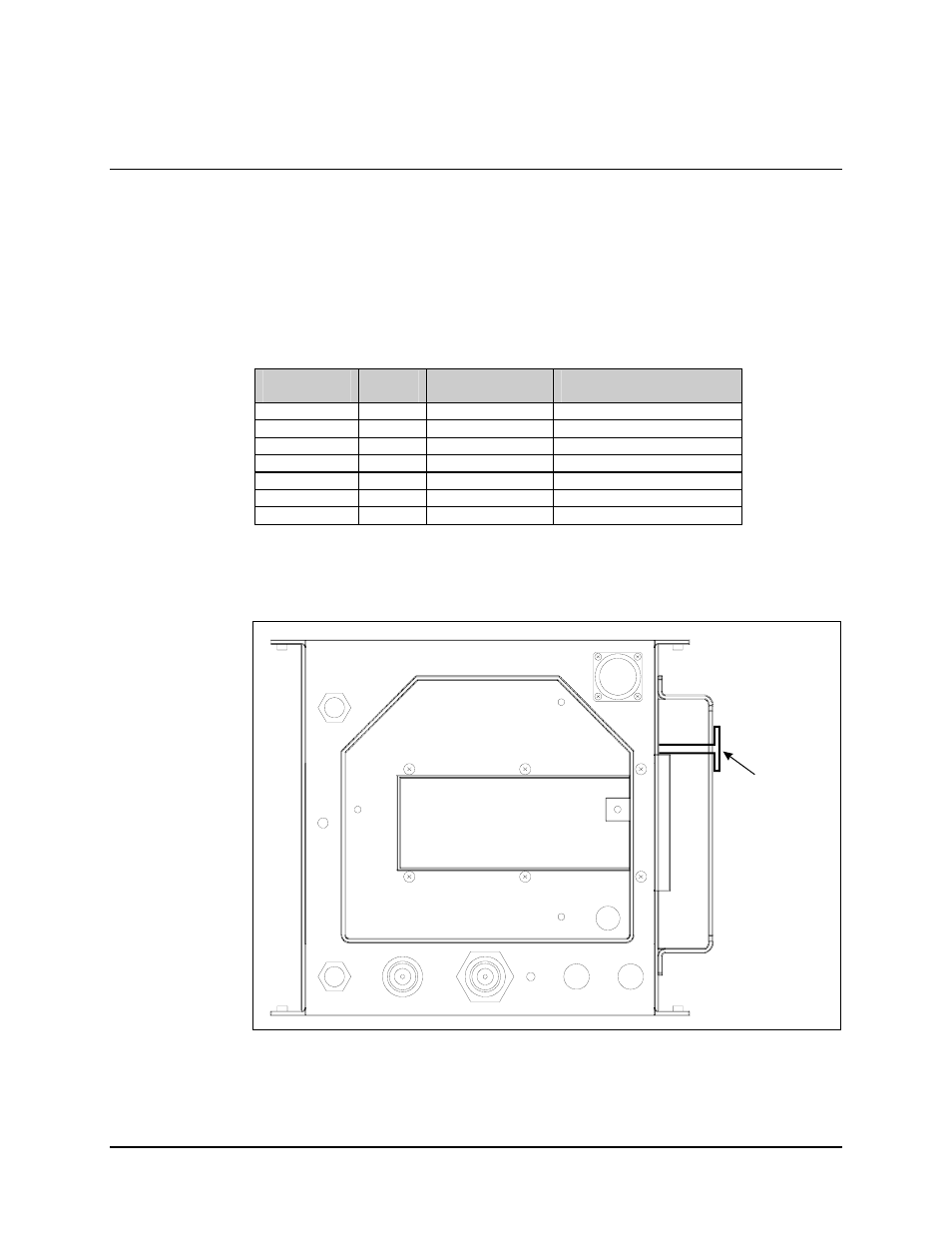

Figure 2-1. RFT External Connections
2–19
