KST-12000 Ku-Band Satellite Terminal Revision 4
Theory of Operation MN/KST12000.IOM
5 VOLTS
REGULATOR
12 VOLTS
FILTER
OVENIZED
HIGH STABILITY
OSCILLATOR
10 MHz
OSC
OVEN
0 - 10 VOLT ELECTRONIC TUNING
+12.5 VOLTS
TUNING VOLTAGE
PWR
OUTPUT
10 MHz
CMOS LEVELS
SQUARE WAVE
SMA FEMALE
10 MHz
CMOS LEVELS
SQUARE WAVE
SMA FEMALE
10 MHz
CMOS LEVELS
SQUARE WAVE
SMA FEMALE
PWR
HIGH STABILITY OSCILLATOR
BUFFERS
U/C REFERENCE
D/C REFERENCE
IF LO REF

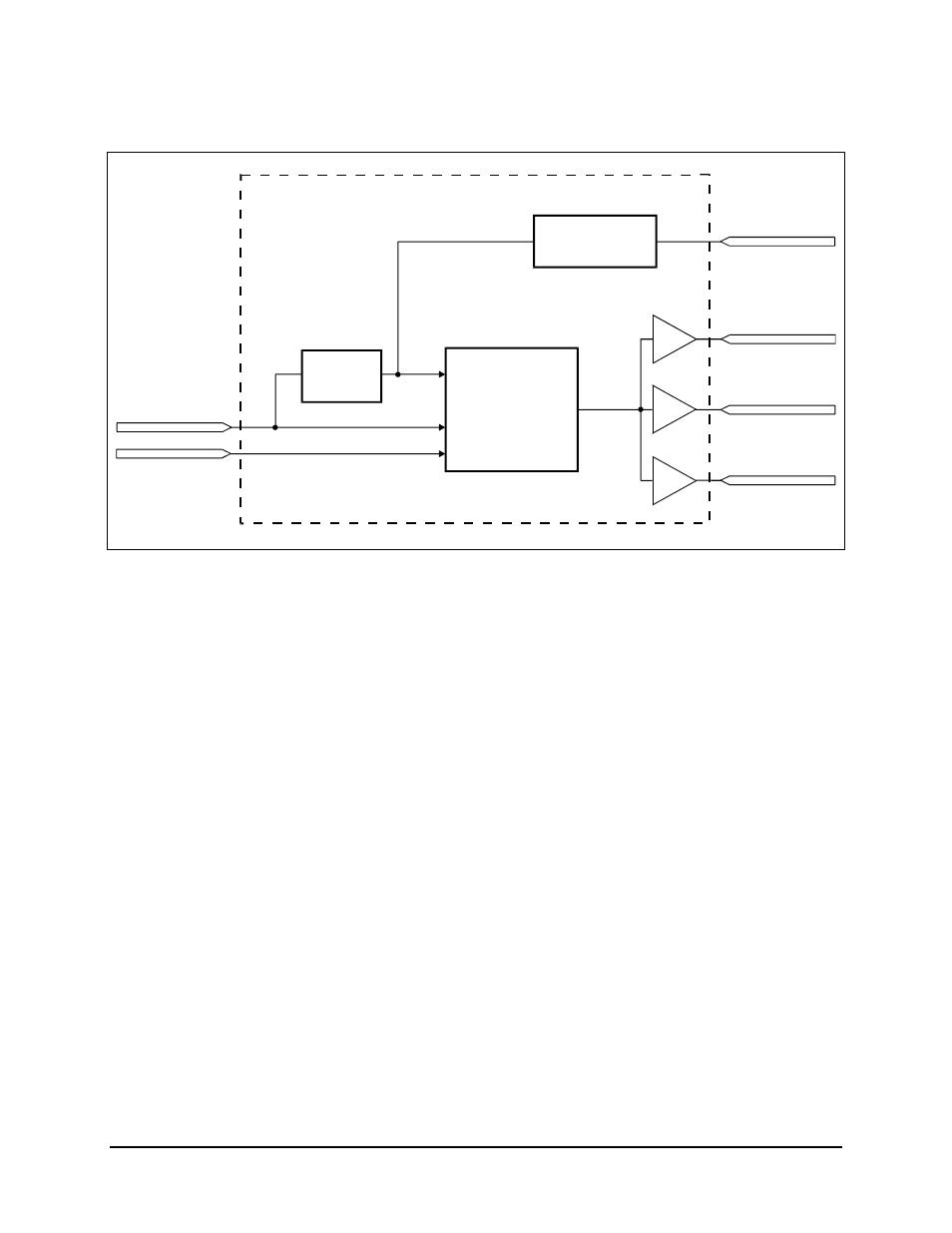

Figure 5-4. High Stability Oscillator Block Diagram
5–11
