KST-12000 Ku-Band Satellite Terminal
Revision 4
Redundant System Installation
MN/KST12000.IOM
3.3.2 Vertical Pole Installation
3.3.2.1 Round Pole
The following process is for a typical installation. Custom systems may be ordered, and
are beyond the scope of this manual.
To install the RFTs to a round vertical pole:
1. Set the units on their sides, with the mounting holes facing up.
2. Install the 8” unistruts as follows:

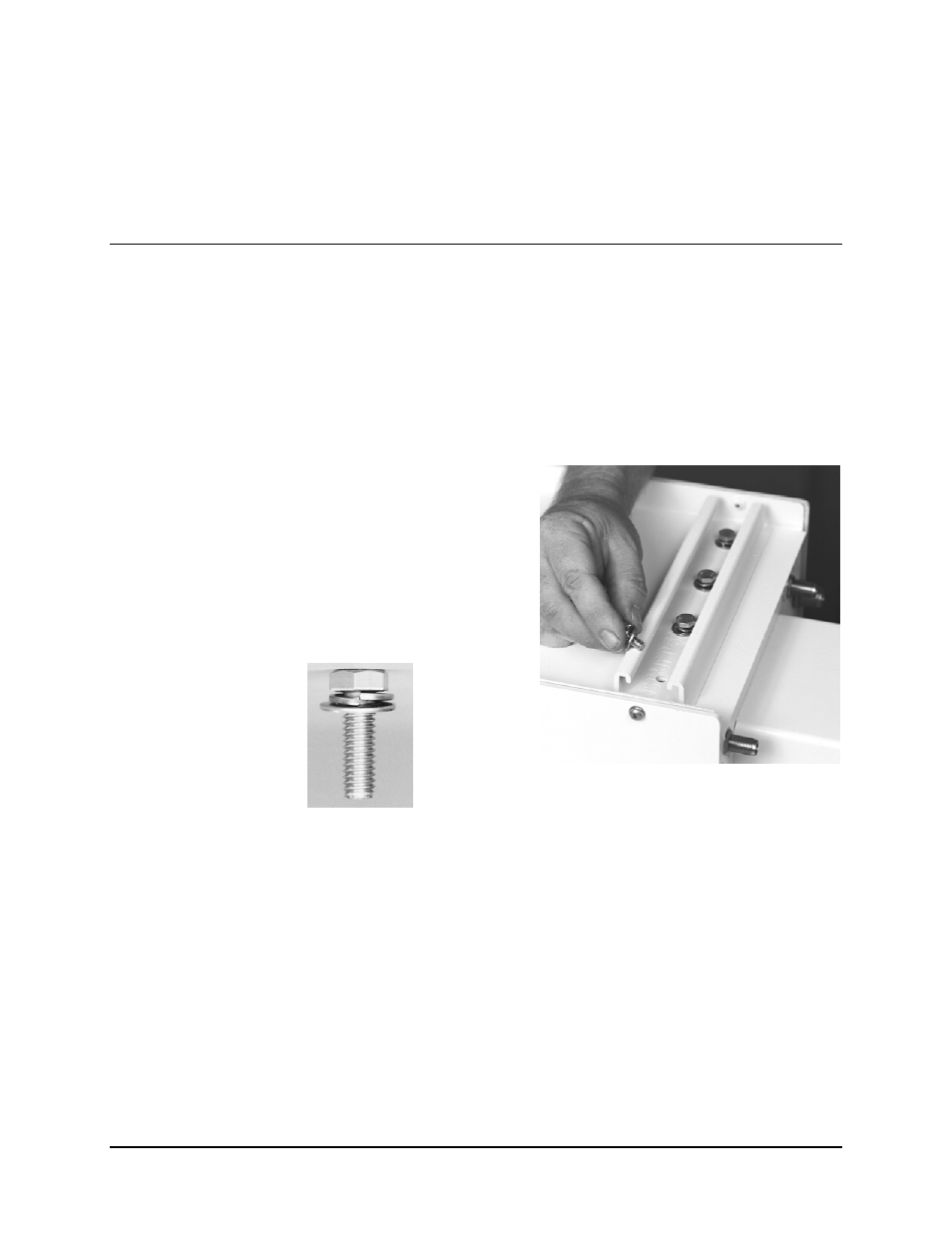

a. Position an 8” unistrut (with
the open side facing up) over
one set of the mounting holes
on the RFT.
b. Using four 1/4-20 bolts, 1/4”
split lockwashers, and 1/4” flat
washers, attach an 8” unistrut
to the RFT.
Tighten the bolts firmly.
c. Repeat Steps 2.a. and 2.b. for
each of the remaining 8”
unistruts (for a total of four).
3–9
