Chapter 2 Hardware Installation
Chapter 2

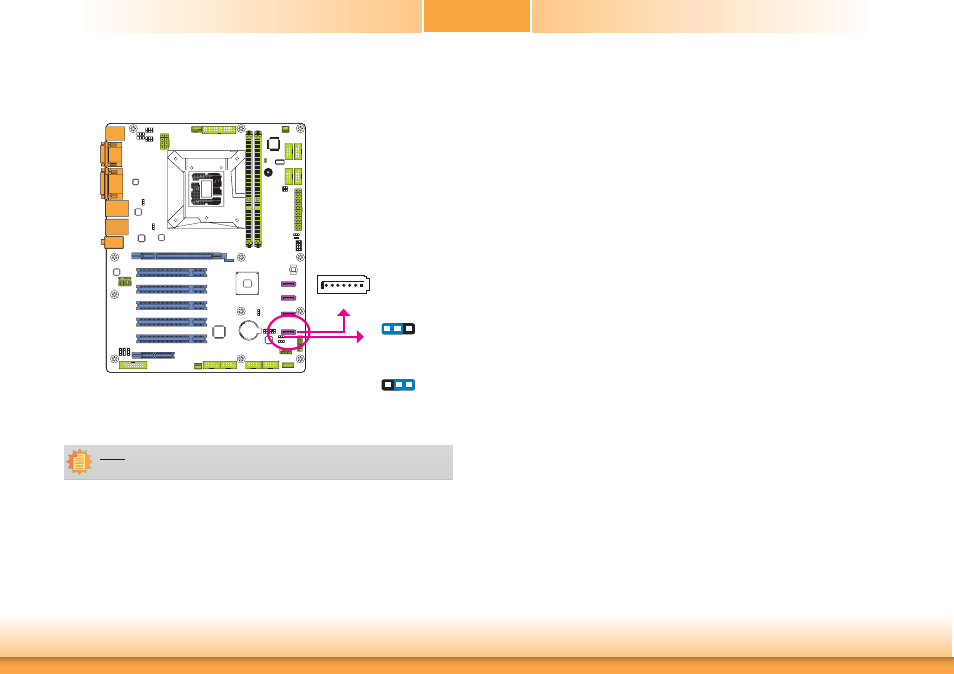

SATA DOM Power Select
2-3 On: +5V
1-2 On: GND
(default)
3
1 2
JP11
Note:
SATA port 5 provides adequate space for SATA DOM.
JP11 is used to select the power of SATA DOM.
SATA 5
7
1
