10 DR ® RAPIDFIRE™ LOG SPLITTER

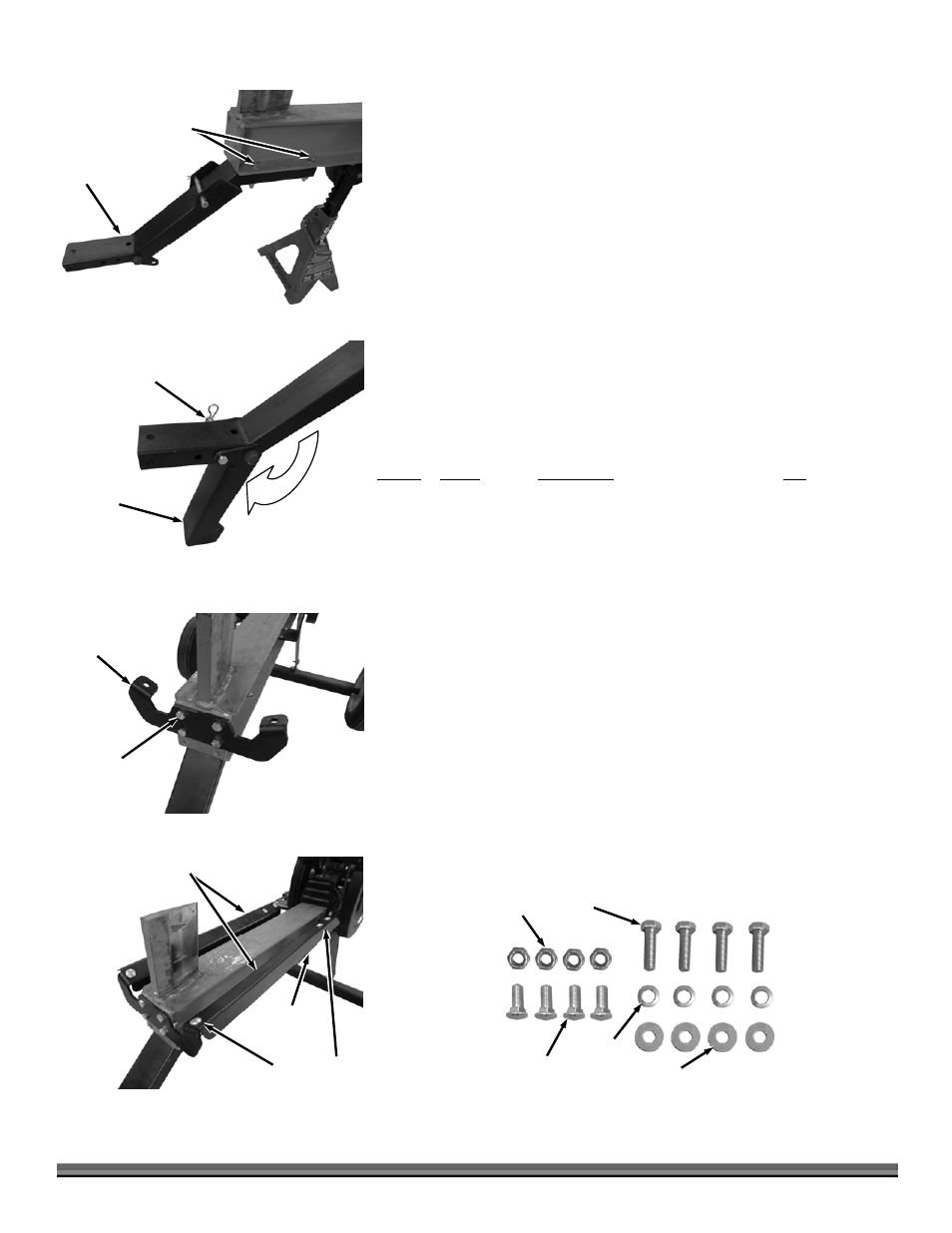

4. Install the Tow Bar to the end of the Beam with four Bolts and Lock Washers
(from the product package) using two 9/16" Wrenches (Figure 3).
5. Pull the Hitch Clip and Clevis Pin from the Leg and fold it to the down
position. Align the holes and secure the Leg with the Clevis Pin and Hitch
Clip (Figure 4).
6. Remove the Jack Stand and lower the Splitter onto the Support Leg.
7. Install the front Cradle Bracket to the end of the Beam with four Bolts and
Locknuts (from the cradle package) using two 9/16" Wrenches (Figure 5).
8. For easier alignment in the following step, slightly loosen the Side Bracket
Hardware using a 9/16" Wrench (Figure 6).
9. Install the Cradles to the front and side Brackets using three Carriage Bolts
and Locknuts for each Cradle. Tighten all Cradle and Bracket hardware using
a 9/16" Wrench.
Installing The Tray Kit
Parts Supplied in Tray Kit ( Figure 7):
Item # Part # Description Qty
1 ............. 313631 ............ Table, Log (not shown) ......................... 1
2 ............. 321041 ............ Bolt, Carriage, 3/8-16 X 1", GR5, ZP ..... 4
3 ............. 333331 ............ Nut, Nylon Lock, Flanged, 3/8-16 ......... 4
4 ............. 150431 ............ Bolt, HHCS, 3/8-16 X 1-1/4", GR5 ........ 4
5 ............. 112411 ............ Washer, Flat, 5/16", USS, ZP ................ 4
6 ............. 180811 ............ Washer, Lock, 3/8" ................................ 4
Compare the contents of the Tray Kit with the “Parts Supplied” list above. If you
have any questions please contact us at www.DRpower.com or call 1-800-DR-
OWNER (376-9637) for assistance.
1. Support the end of the Beam with a Jack Stand or equivalent to position the
Beam parallel with the ground.
Cradles
Figure 6
Carriage Bolts
and Locknuts
Side
Bracket
Tow Bar
Figure 3
Bolts and
Lock Washers
Hitch Clip
and Clevis Pin
Figure 4
Support
Leg
Front Cradle
Bracket
Figure 5
Bolts and
Locknuts
4
Figure 7
3
2
5
6
