Operator's Manual 2200 Series Buckle Fold Units
1 1 . BUCKLE FOLD UNITS
The buckle fold units have an infeed width of
15" (when inline with the sealer paper
width is liminted to 11.5") and equipped with 4 automatic fold plates.
The automation of these fold plates comprises the automatic positioning of the
fold plate stops and the automatic closing of the deflectors.
It is not necessary to remove the fold plates and to insert the deflectors when
changing the fold.

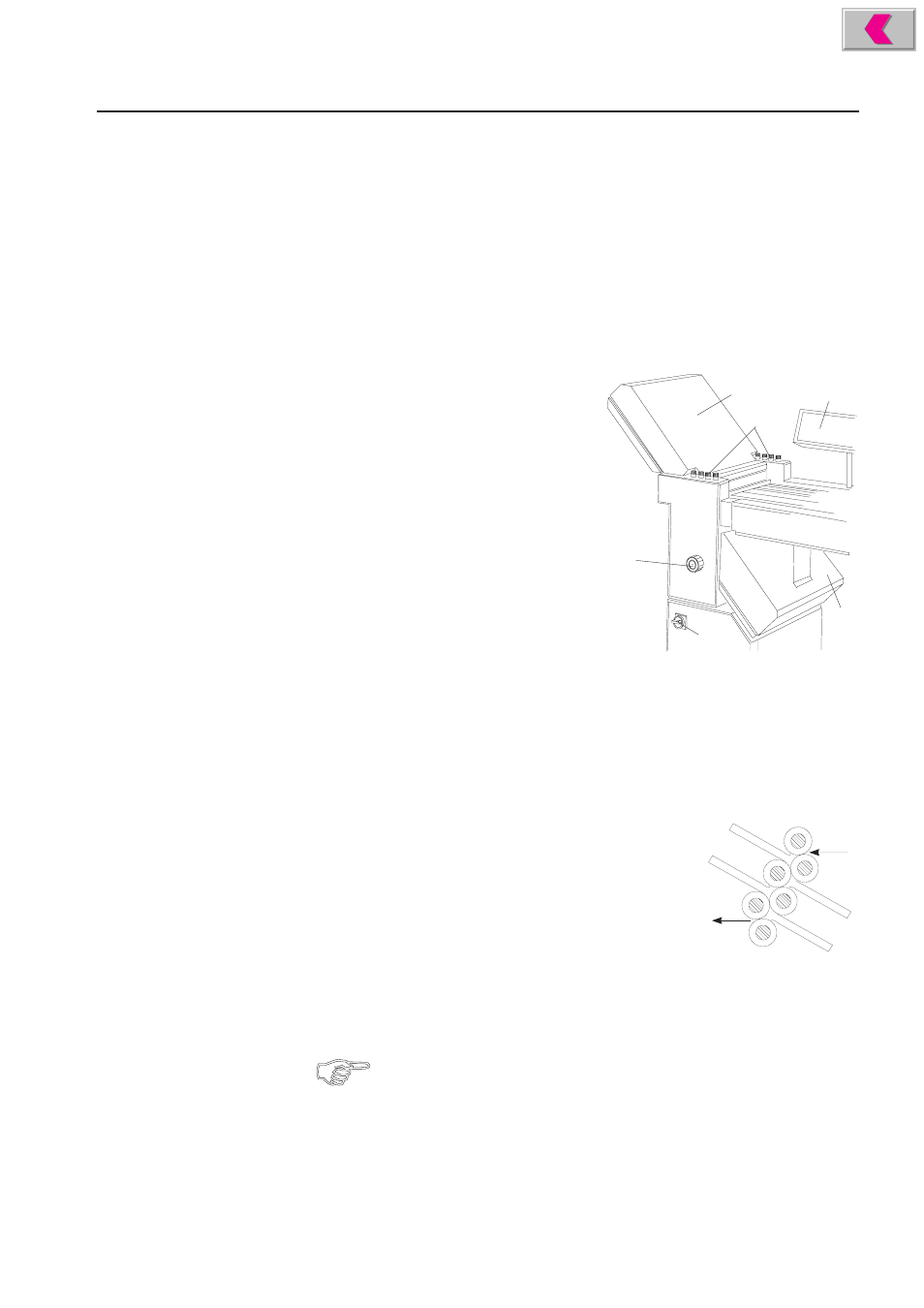

Description 1 Noise covers
2 Fold roller adjustment knobs
3 Handwheel
4 Main switch
5 Operator panel
6 Transfer bridge
1
1
2
3
4
5
Fold Plate Positions
In the fold unit there are four positions
for the fold plates:
1
2
3
4
The fold plates are marked with a number.
Care has to be taken that the fold plates are
inserted in the correct positions, e.g. fold plate 1
in position 1, fold plate 2 in position 2, etc.
