Pub. 42004-464B
Model 10458-701 and 10458-801 VoIP & VoIP WiFi Electronic Paging Modules
Page 13 of 24
f:\standard ioms - current release\42004 instr. manuals\42004-464b.doc
07/14
Carefully open the chassis, keeping the U-bracket to the right. The VoIP Broadcast Carrier PCBA is
mounted on the U-bracket and is where the settings and adjustments exist. Refer to Figure 3.

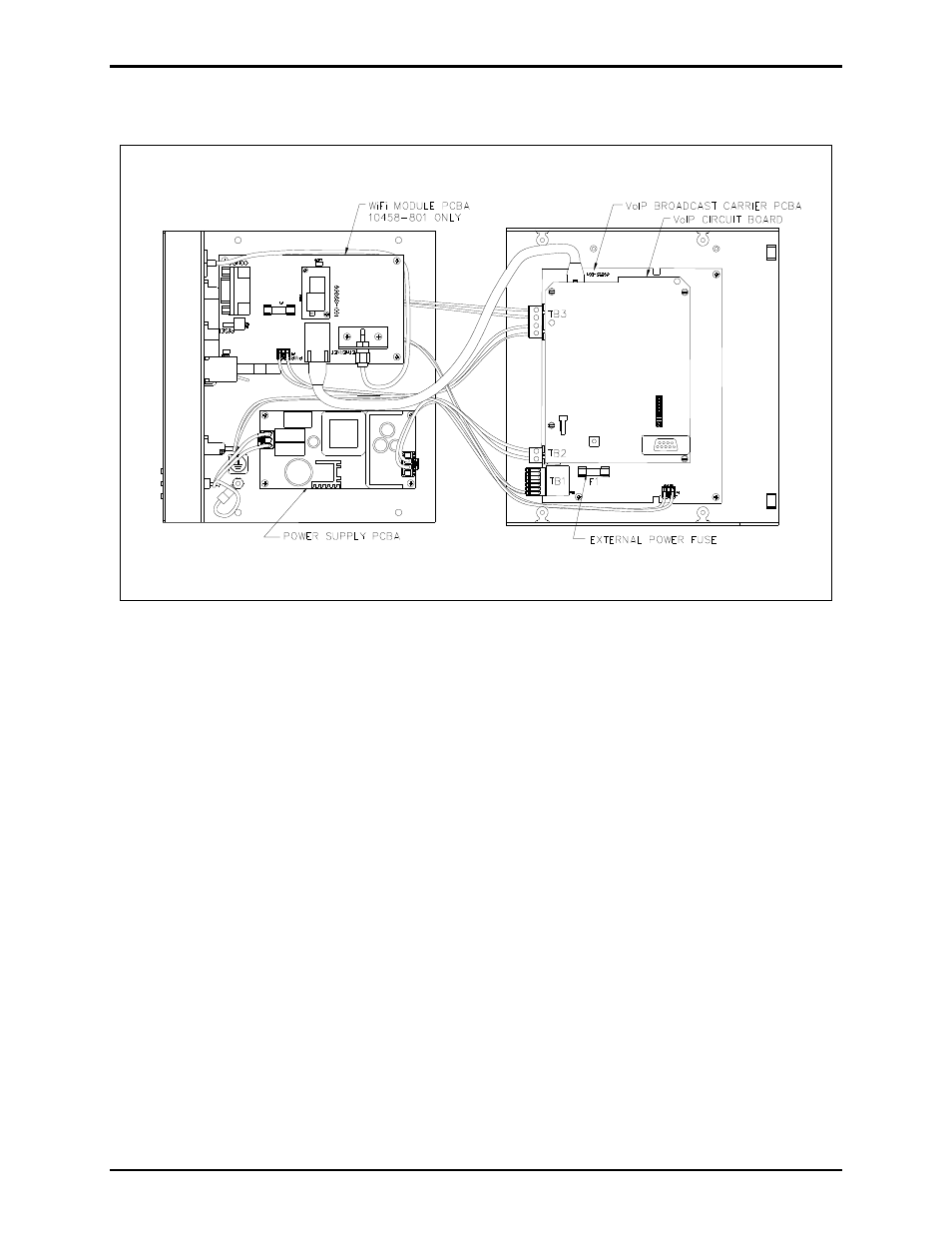

Figure 3: Electronic Paging Module (opened)
