Hardware Configuration
External
When the handset is removed from the cradle, a magnetic reed switch in the cradle takes the station
off-hook. In addition to the handset and cord, a push-to-page button and a label are located on the front
cover. On the multi-party stations, a 5-party line selector switch is also included. See Figure 1.

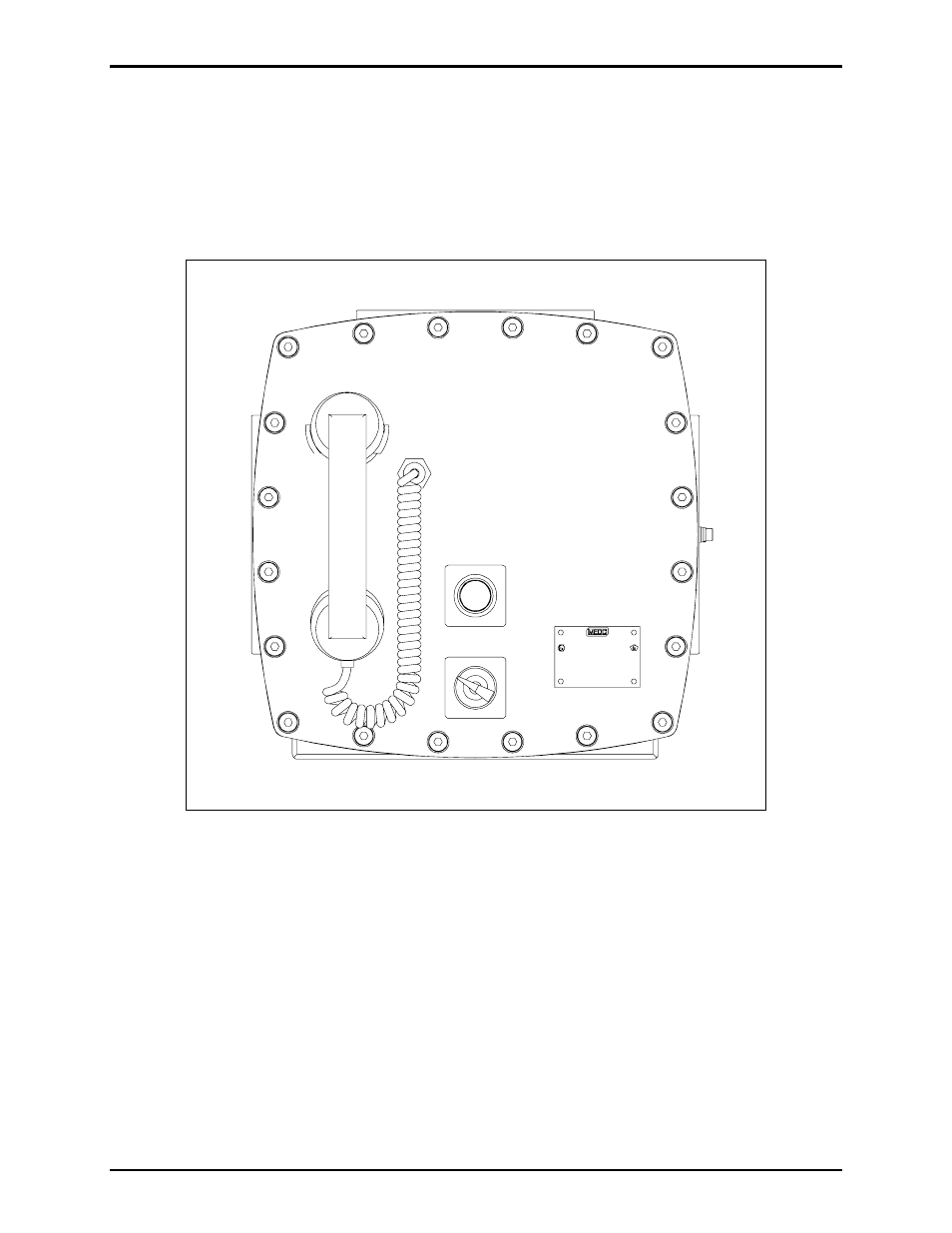

Figure 1. Model 7805-301 Page/Party ® Handset Station - Front View
The cable gland entries for Models 780-301-and 7805-301 are shown in Figure 2. The following entries
are on the base: three M25 entries (two fitted with plugs); and one M16 entry.
