11 02/12
Installation
Planning the Installation
Mechanical Receipt Inspection
The ITR1000-001 Basic Tone Remote Desk Set is shipped in a cardboard container with inserts.
Thoroughly inspect it as soon as possible after delivery. In-transit damage should be immediately
reported to the transportation company.
Mounting
The desk set can be placed on a desk or mounted vertically on a wall. To wall mount the desk set,
remove the four bottom screws from the base and then rotate the base 180
. Reinstall the four screws to
the base and rotate the handset hook located on the front of the unit.
FCC Interference Warnings
The FCC requires that manuals pertaining to Class A and Class B computing devices contain warnings
about possible interference with local and residential radio and TV reception. Please read these warnings
and all safety information in the Foreword section of this manual.

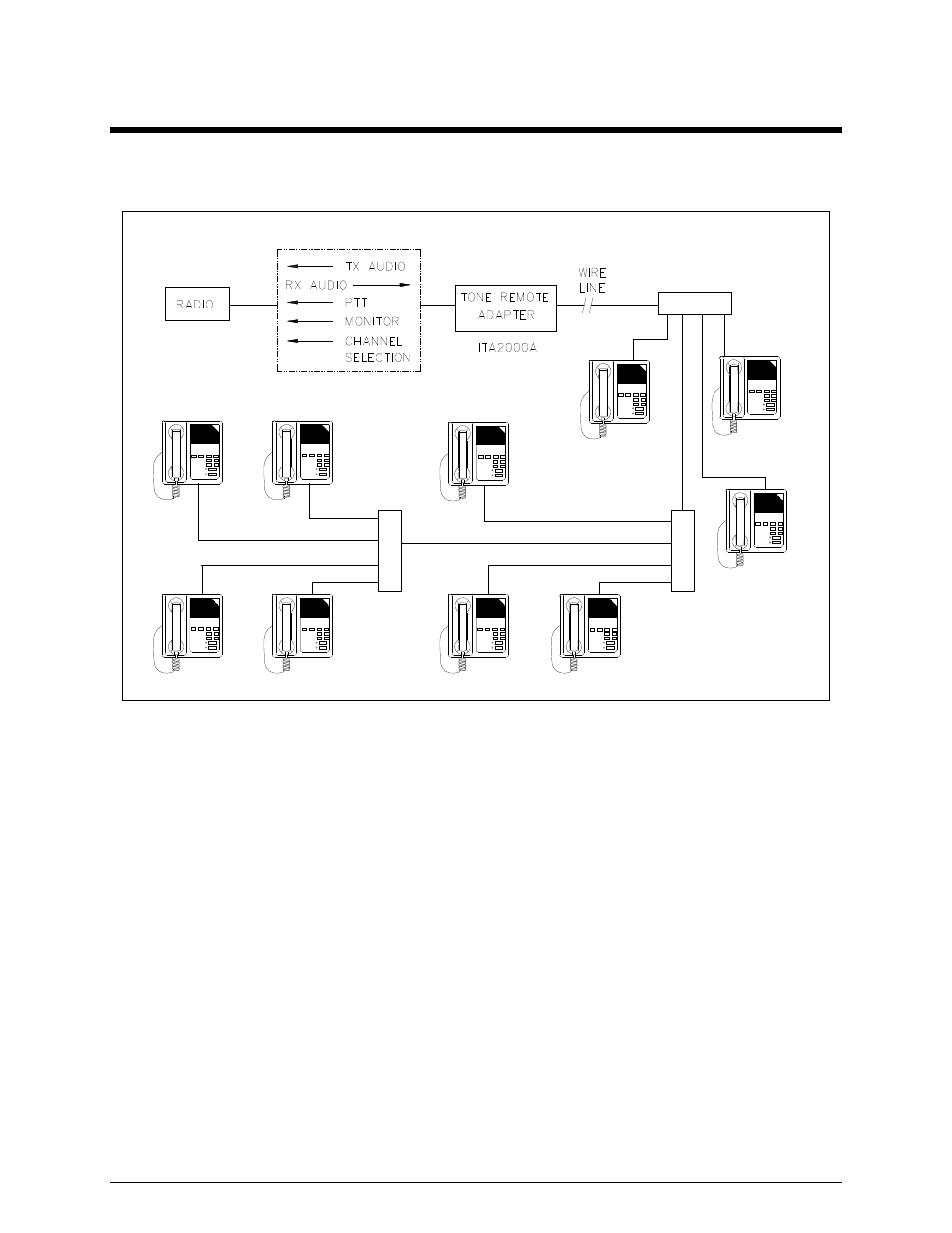

Sample ITR1000-001 Installation Diagram - Shown connected in parallel within one building.
