Pub. 42003-204A
M
ODEL
12250-004
V
OLUME
L
EVEL
C
ONTROL
R
ECEIVER
A
SS
’
Y
(24
V
DC)
R
EPLACEMENT
K
IT
Page:
2 of 6
\\s_eng\gtcproddocs\standard ioms - current release\42003 kit manuals\42003-204a.doc
06/04
2. All agency approvals are nullified with the addition of VLC assembly, if not factory installed.
This kit includes the following components:
Qty Description
1
Volume Level Control Receiver Assembly (for 24 V dc applications only)
2
Screw, 6-32
× ¼-inch PHMS
1
Resistor, ¼-watt, 5%
1
Template (for locating drilling holes)
1 Tie
Wrap
N
OTE
:
All items contained in this kit may not be required in all installations.
Installation
Models 701-103, 701-203, 701-207, 701-307, 713-102, 723-003 and 751-002

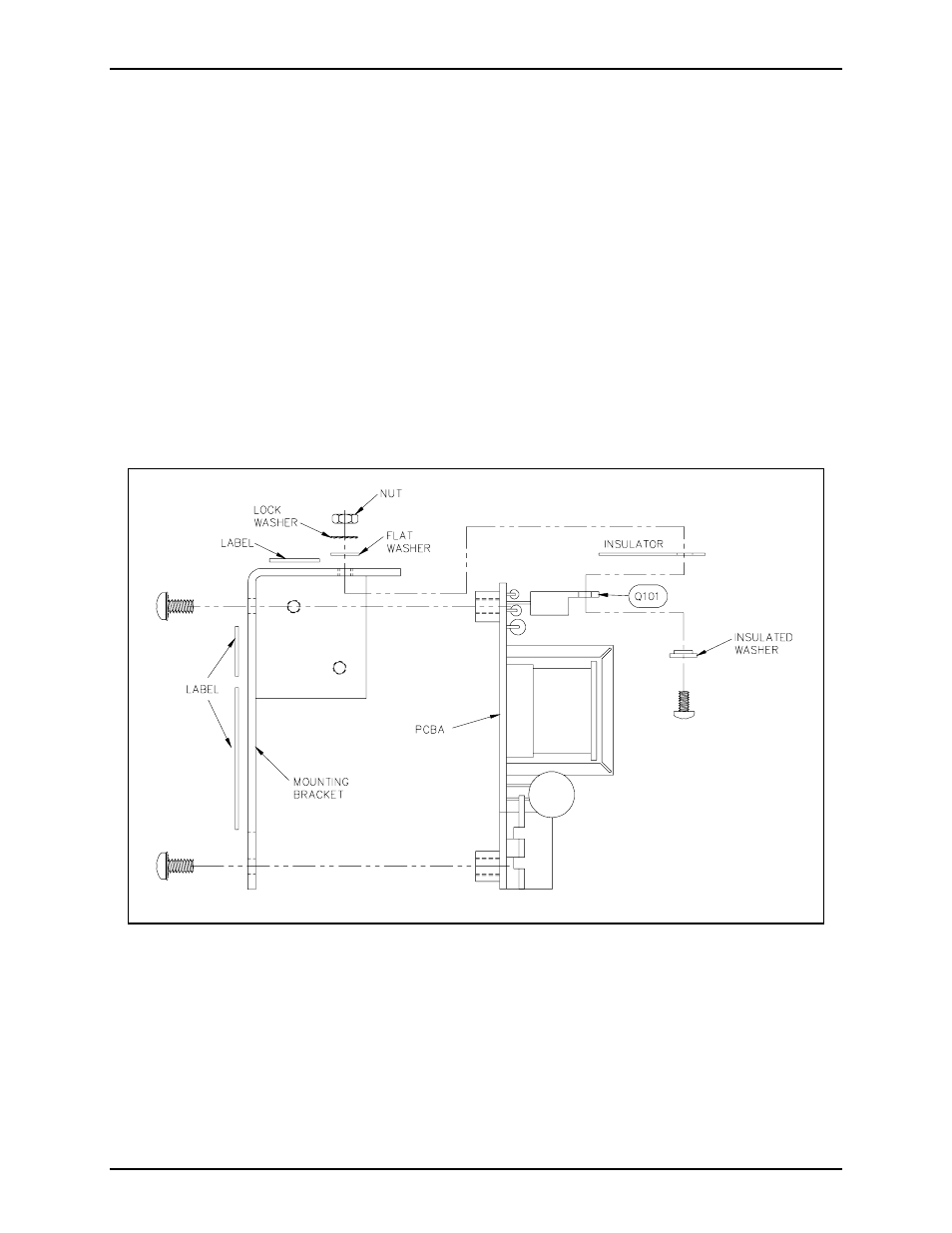

Figure 1. VLC Assembly
