10

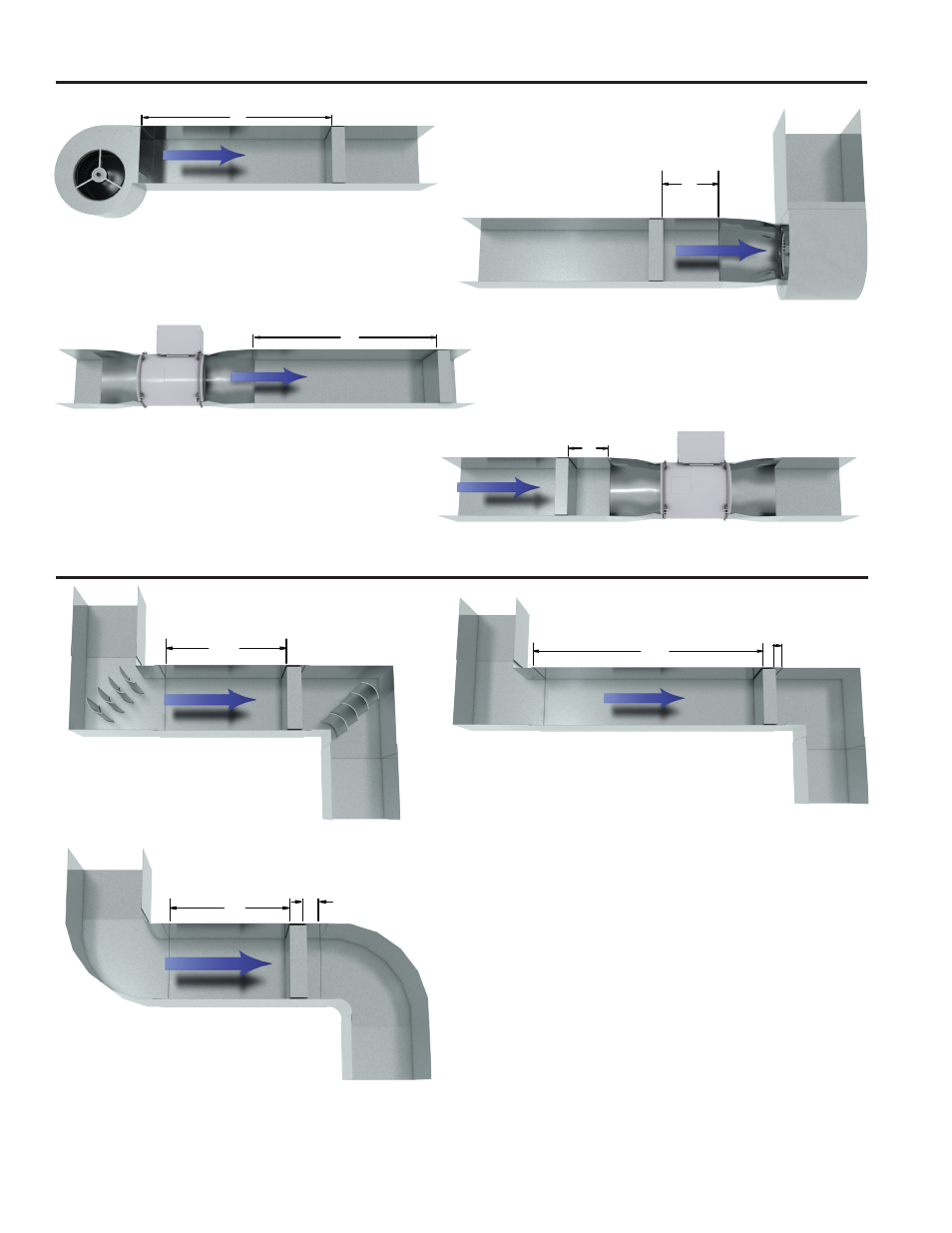

Elbows

1/2X

90° Vaned Elbow

1/2X

1.5X

90°Elbow Without Vanes

1/2X

1X

Round Sweep Elbow

Optimal Placement for AMD-TD Damper Series

Fans

2X

Centrifugal Fan Discharge

3/4X

Centrifugal Fan Inlet

3X

Vane Axial Fan Discharge

1X

Vane Axial Fan Inlet
