Greenheck Exhaust Weatherhood, ERV, ERH, ERCH and APEX (462844) User Manual
Page 2
Assembly Instructions
The following steps explain how to assemble and attach the exhaust
weatherhood to the energy recovery unit. Prepunched holes and
sheet metal screws are provided for your convenience.
1. Attach weatherhood sides (Items 1 and 4) to energy
recovery unit.
2. Attach bottom (Item 5) and cutoff (Item 6).
3. Attach damper assembly (Item 2). Damper should be
sealed against cutoff.
4. Attach top (Item 3) and birdscreen (Item 7).
5. Caulk the unit/weatherhood seams on the top, bottom
and sides.
After completing these steps, check to make sure the damper blade
(Item 2) seals against the magnetic strips on the weatherhood sides
(Items 1 and 4) and along the 45° cutoff plate (Item 5). Adjust as
necessary.
Contact your local representative if replacement parts are required.
Weatherhood Parts List
Blower Model
Part Description
Qty
A10-4A
A10-6A
A9-9A
A12-8A
A10-10A
A12-12A
A15-15A
A18-18A
A20-18A
Part #*
Part #*
Part #*
Part #*
Part #*
Part #*
Part #*
Part #*
Part #*
Item 1
Weatherhood Right Side
1
712526
712519
711210
711178
712519
711178
711165
711076
711221
Item 2
Damper Assembly
1
-
-
-
-
-
-
-
-
-
Item 3
Weatherhood Top
1
712525
712518
711209
712544
727644
711177
711164
711074
711217
Item 4
Weatherhood Left Side
1
712527
712520
711213
711179
712520
711179
711166
711075
711220
Item 5
Weatherhood Bottom
1
712528
712521
712542
712541
727646
712540
711231
711230
711232
Item 6
Cutoff
1
712524
712517
711208
712543
727645
711176
711163
711073
711216
Item 7
Birdscreen Assembly
1
852277
852275
852235
852279
852872
852233
852232
852231
852236
NOTE: Some energy recovery units require two exhaust weatherhoods.
*Part numbers are for non-painted units. Consult factory for replacement parts on painted units.
Hardware Kit
Part Number 852259
Part Description
Qty
Part #
Screws, SMS (A) 12 x 5/8 (IHH)
34
415180

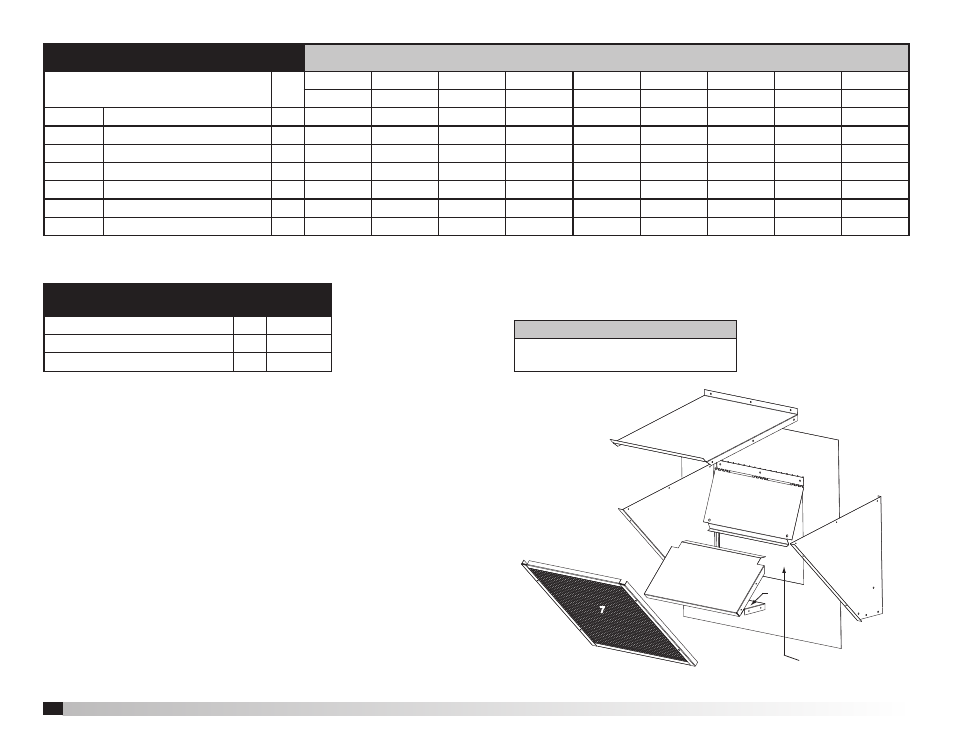

Assembly Instructions
1
462844
Tools Required
• Cordless drill (electric or pneumatic)
• 5/16 inch nut setter
1
6
Exhaust Discharge
Opening
2
4
3
5
7
Part Number 462844 • Exhaust Weatherhood Assembly Instructions, Rev. 6, March 2009
