STEP 3
28
NOTE:
- SOME PARTS MAY HAVE BEEN
REMOVED FOR CLARITY.

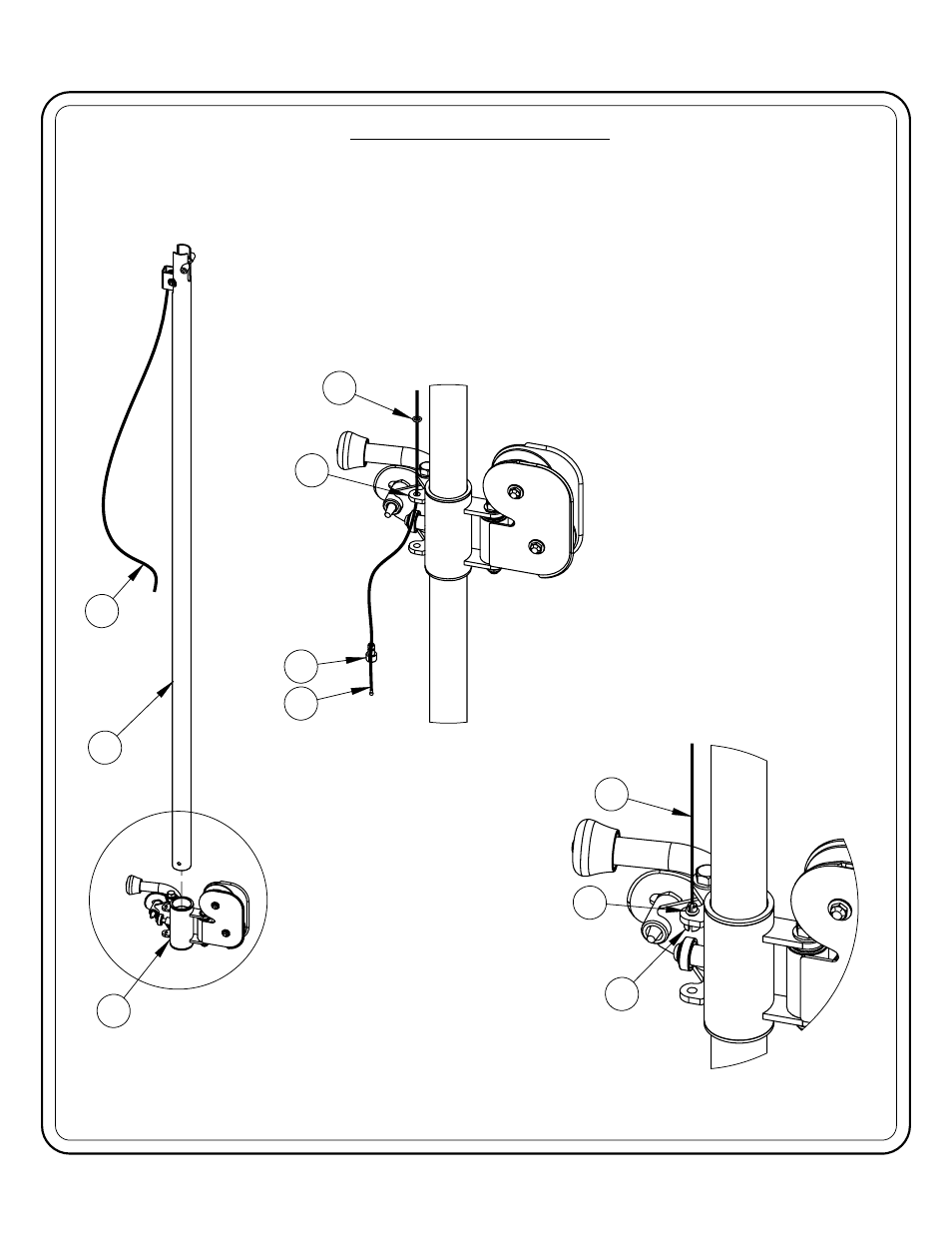

STEP 1
- SLIDE HI-LO ADJUSTER
ASSEMBLY (6) ONTO GUIDE
TUBE ASSEMBLY (9) AS SHOWN.
STEP 2
- INSERT THE CABLE ASSEMBLY (2)
THRU ADJUSTER ASSEMBLY (6)
AS SHOWN.
- THEN INSTALL CABLE LOCK (28)
ONTO CABLE ASSEMBLY (2)
TO FASTEN (2) TO (6).
STEP 3
SECURE CABLE ASSEMBLY (2).
ONTO THE CABLE LOCK (28) TO
FRAME ASSEMBLY
- INSTALL THE RUBBER O-RING (16)
OWNER'S MANUAL
V HI-LO OPTION ASSEMBLY PAGE 12
2
9
6
STEP 1
6
28
STEP 2
2
16
