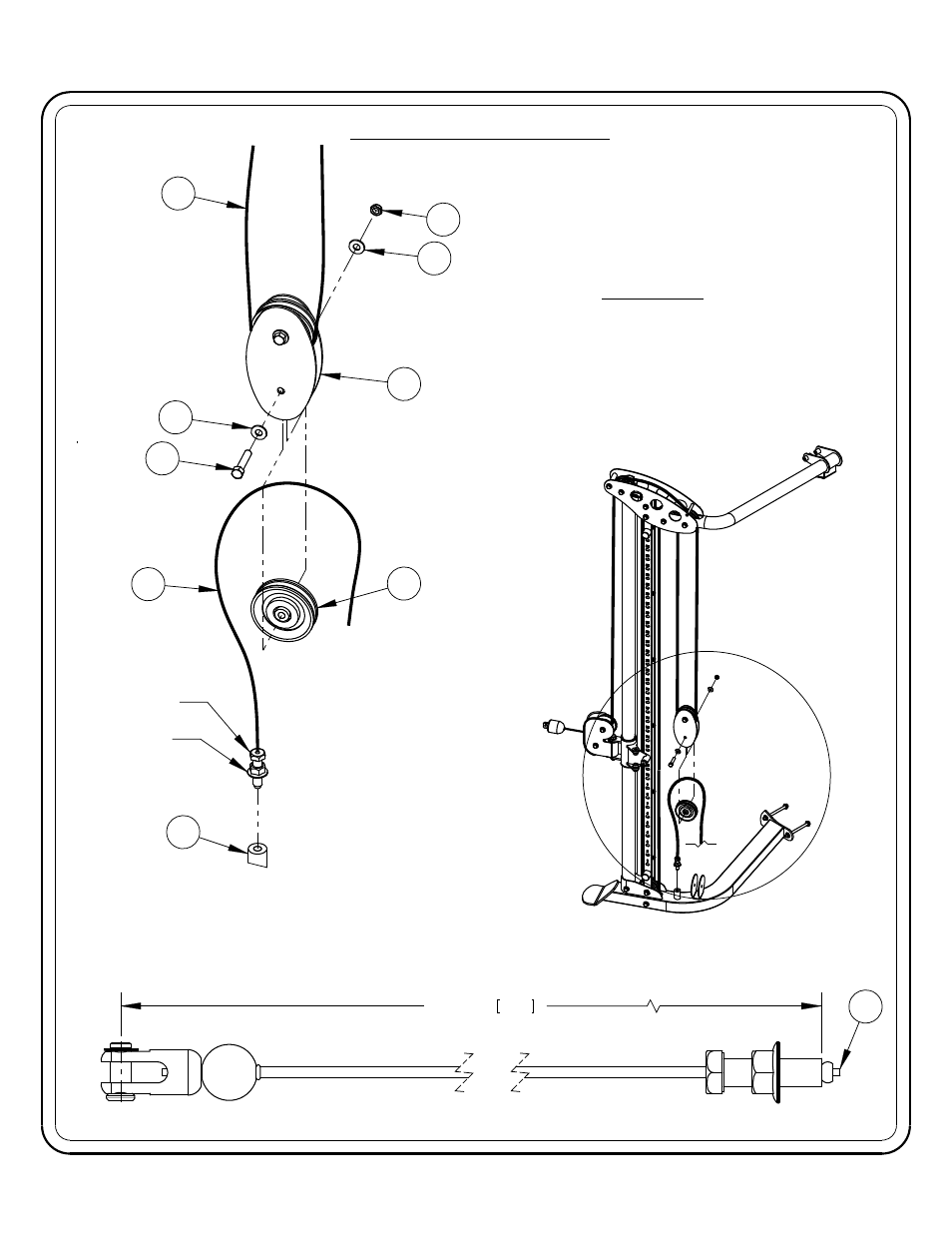

FRAME ASSEMBLY
NOTE:
- SOME PARTS MAY HAVE BEEN
REMOVED FOR CLARITY.
- WRENCH TIGHTEN CABLE ASSY (1)
TO SECURE ONTO (8).
- INSTALL CABLE AND PULLEYS AT THE
SAME TIME.
- WRENCH TIGHTEN HARDWARE.
OWNER'S MANUAL
V HI-LO OPTION ASSEMBLY PAGE 30
FINE TUNING:
WARNING - CABLE BOLT MUST BE THREADED
A MINIMUM OF 3/8" WITH JAM NUT TIGHTENED
SECURELY TO ENSURE PROPER CONNECTION.
LOOSEN JAM NUT AND THREAD
BOLT IN/OUT TO GIVE THE CABLE
PROPER TENSION. RE-TIGHTEN
JAM NUT.
1 167 29/32" 4265
JAM BOLT
55
40
47
40
20
3
1
30
8
JAM NUT
