Hoist Fitness V HI-LO - Manual (Page 19)

10
7
3
GUARD ROD
10 7
3
NOTE:
- SOME PARTS MAY HAVE BEEN
REMOVED FOR CLARITY.
FRAME ASSEMBLY
OWNER'S MANUAL
V HI-LO OPTION ASSEMBLY PAGE 18

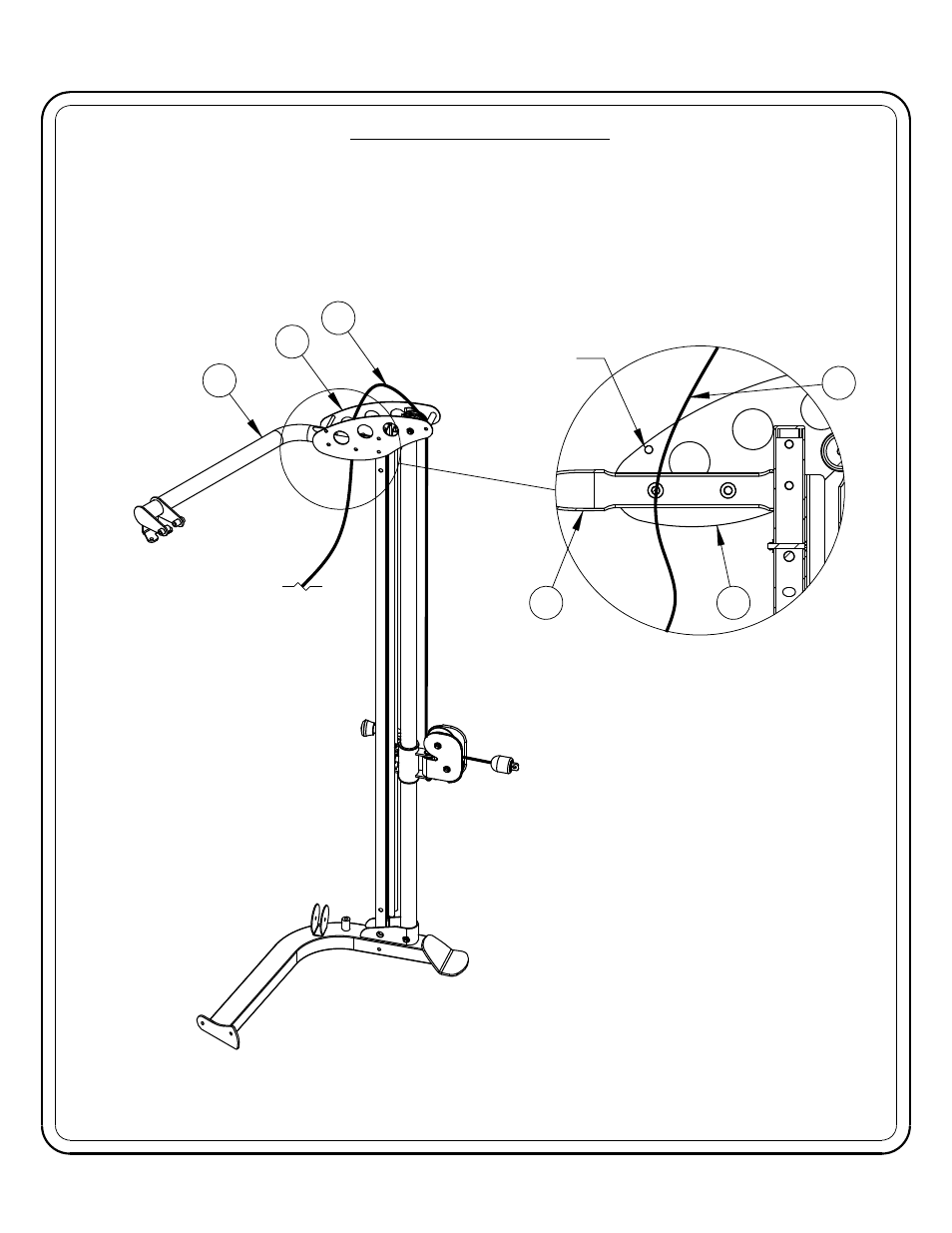

PROPERLY INSTALLED VIEW
NOTE:
BE SURE THAT CABLE(3)
DOES NOT PASS OVER
GUARD ROD.
