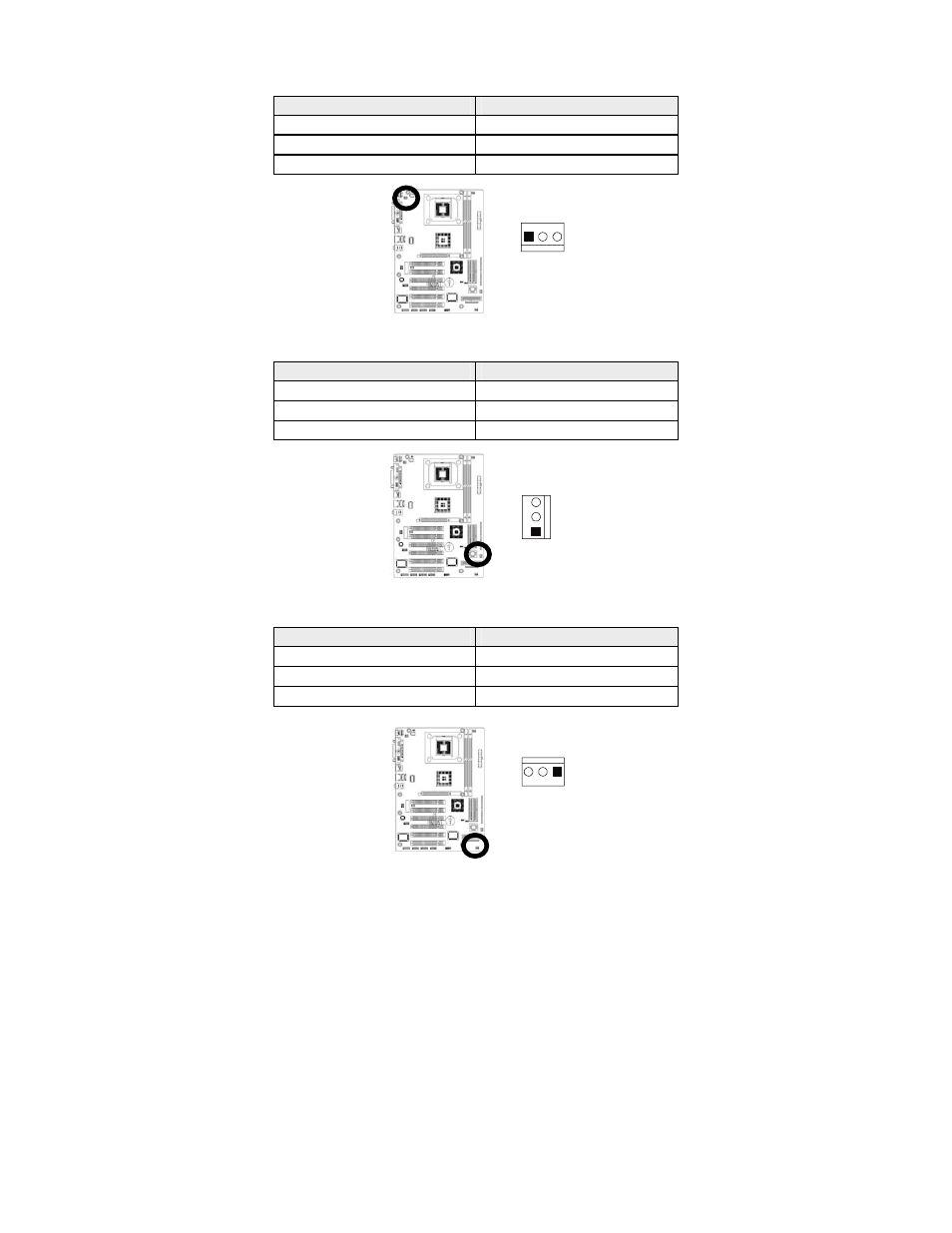

CPU fan power connector: FAN2
Pin #
Assignment
1 Ground
2 +12V
3 Sense
y Figure:
Chassis fan power connector: FAN3
Pin #
Assignment
1 Ground
2 +12V
3 Sense
y Figure:
Fan power connector: FAN4
Pin #
Assignment
1 Ground
2 +12V
3 Sense
y Figure:
